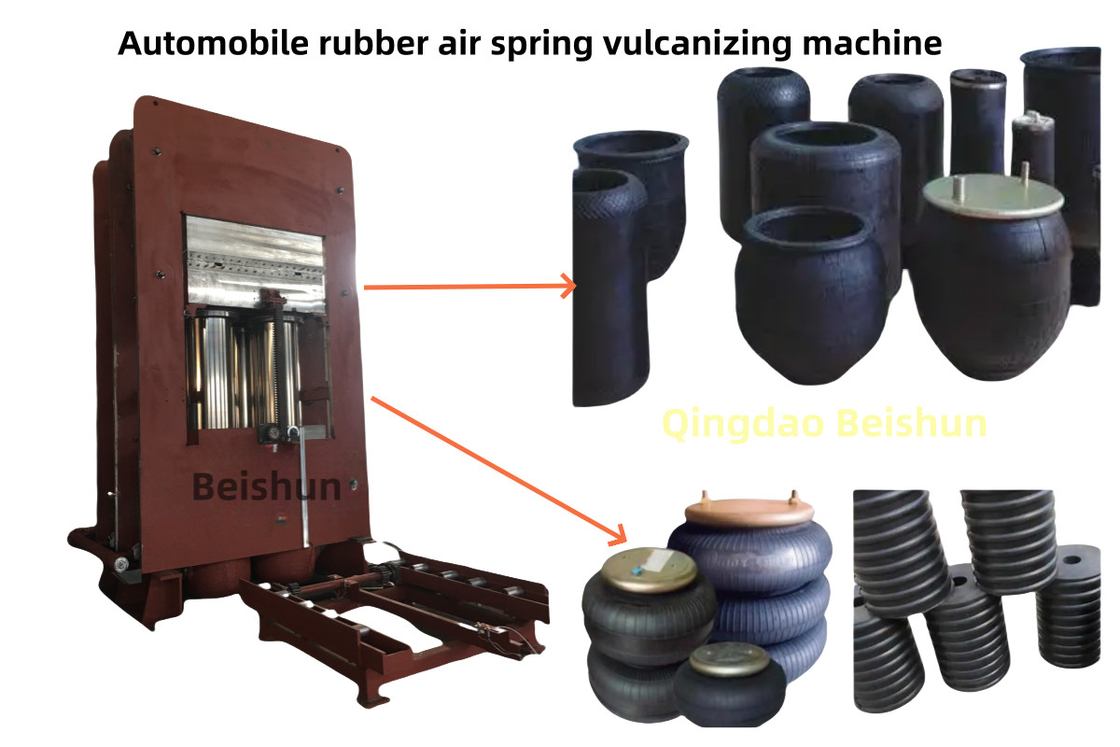

Large Automobile Air Spring Manufacturing Machine And Vulcanization Molding Press

Large Automobile Air Spring Manufacturing Machine And Vulcanization Molding Press

1. Heating Principle
   • The vulcanizing machine uses a heating system, often through electric heating elements or in some cases, steam heating. The heat is transferred to the molds and the rubber material. The temperature is precisely controlled to activate the vulcanization process. For example, the temperature might be set between 140 - 180°C, depending on the specific rubber compound used. This heat causes the rubber molecules to become more active and ready for the cross - linking reaction.
2. Pressure Application
   • A hydraulic or mechanical pressure - applying system is utilized. The hydraulic system typically consists of a hydraulic pump, cylinders, and valves. The pressure forces the rubber to fill the mold cavity completely and evenly. In the case of air spring production, the pressure is carefully adjusted to ensure the proper shape and thickness of the rubber part. The pressure can range from a few bars to tens of bars, depending on the design requirements of the air spring.
3. Vulcanization Reaction
   • During vulcanization, the rubber is mixed with vulcanizing agents such as sulfur. Under the combined action of heat and pressure, the rubber molecules form cross - links. This transforms the rubber from a soft and elastic state with limited durability to a more rigid and durable material. The cross - linked structure gives the rubber air spring its strength, elasticity, and resistance to deformation and wear, enabling it to withstand the repeated compressive and tensile forces it experiences during vehicle operation.

1. Mold System
   • The molds are designed according to the specific shape and dimensions of the automobile rubber air spring. They are usually made of high - quality steel with excellent heat - conducting and wear - resistant properties. The mold has a complex internal structure to form the various chambers and surfaces of the air spring. It also has small vents to allow air and any volatile substances to escape during the vulcanization process to prevent air bubbles and ensure a high - quality product.
2. Heating System
   • The heating system includes heating elements such as resistance wires or heating plates. These are strategically placed around the molds to provide uniform heat distribution. A temperature - control unit monitors and adjusts the temperature in real - time. The heating system is insulated to reduce heat loss and improve energy efficiency.
3. Hydraulic System
   • As mentioned, the hydraulic system is crucial for applying pressure. The hydraulic pump draws in hydraulic fluid and pressurizes it to drive the hydraulic cylinders. The cylinders are connected to the movable parts of the mold or the press platens. The hydraulic valves control the flow of hydraulic fluid, allowing for precise control of the pressure and the speed of the mold - closing and - opening operations.
4. Control System
   • The control system is usually based on a Programmable Logic Controller (PLC). It enables operators to set the temperature, pressure, and vulcanization time. The touch - screen interface provides real - - time monitoring of the process parameters. The control system also includes safety features such as over - temperature and over - pressure alarms and emergency stop functions to ensure the safety of the equipment and operators.

1. High - Quality Product
   • The precise control of temperature, pressure, and time during vulcanization ensures that the rubber air springs have consistent quality. The cross - linked structure formed is more stable and durable, which is essential for the reliable performance of the air springs in vehicle suspension systems.
2. Increased Production Efficiency
   • The automated nature of the vulcanizing machine allows for faster production cycles. Once the parameters are set, the machine can operate continuously, reducing the production time per unit. This helps to meet the high - demand requirements of the automobile industry.
3. Versatility
   • It can produce different types and sizes of rubber air springs by simply changing the molds. This adaptability enables manufacturers to produce a wide range of products to suit various vehicle models and applications.

1. Automotive Suspension Systems
   • The primary application is in the production of rubber air springs for passenger cars, commercial vehicles, and heavy - duty trucks. These air springs are used to replace traditional coil or leaf - spring suspensions in many modern vehicles to provide better ride comfort, adjustable ride height, and load - leveling capabilities.
2. After - Market and Custom Applications
   • The vulcanizing machine can also be used to produce custom - designed air springs for specialty vehicles such as RVs (recreational vehicles), off - road vehicles, and vehicles with specific load - carrying requirements. This allows for the modification and improvement of existing suspension systems to meet unique customer needs.
