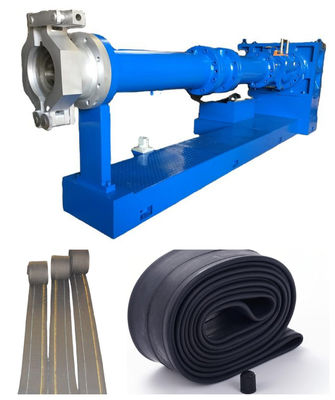

55kw XJP-120 Model Rubber Hot Feed Extruder for Tire Tread Rubber Extrusion and Inner Tube Manufacturing
Product Summary
55kw XJP-120 Rubber Hot Feed Extruder Professional rubber extrusion equipment designed for tire tread rubber extrusion and rubber inner tube manufacturing applications. Hot Feed Extruder Overview The inner tube hot feed extruder is specialized equipment for producing tire inner tubes using a hot ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XJP-120
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description

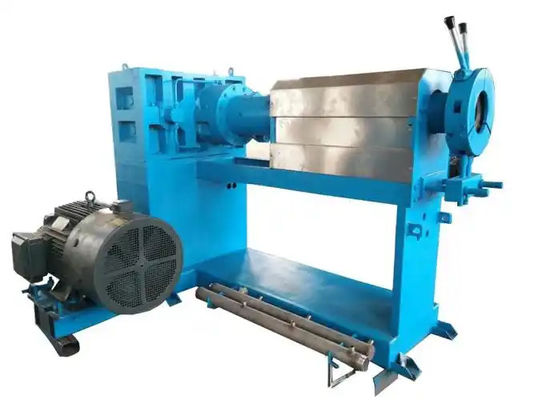

55kw XJP-120 Rubber Hot Feed Extruder
Professional rubber extrusion equipment designed for tire tread rubber extrusion and rubber inner tube manufacturing applications.
Hot Feed Extruder Overview
The inner tube hot feed extruder is specialized equipment for producing tire inner tubes using a hot feeding process that requires preheating of rubber compound. It forms continuous inner tube blanks through screw extrusion.
Main Structure and Components
- Feeding System: Hot feed port receives preheated rubber compound (60-80°C) with forced feeding rollers for uniform material entry
- Extrusion System: Single screw structure with small length-to-diameter ratio (4-6:1) and low compression ratio (1:1.2-1.4) adapted for hot rubber characteristics
- Barrel: Built-in heating/cooling channels to maintain stable temperature (80-100°C)
- Die Head: Annular die for tubular blank extrusion with adjustable diameter for different specifications
- Auxiliary Equipment: Cooling water tank, traction device, and fixed-length cutting machine
Working Principle
- Rubber preheating in open mixer to achieve soft, plastic state
- Forced feeding through rollers into screw mechanism
- Extrusion molding through annular die to form tubular blanks
- Cooling and shaping in water tank to prevent deformation
- Fixed-length cutting for subsequent vulcanization process
Application Characteristics
Applicable Products: Automotive/motorcycle inner tubes (butyl rubber, natural rubber), bicycle inner tubes, and various inflatable rubber products including airbags and lifebuoys.
Technical Advantages: High stability with hot feeding process avoiding pressure fluctuations, strong material adaptability, and high production efficiency with continuous extrusion.
Limitations: Requires pre-heating equipment (increased energy consumption) and limited flexibility when changing rubber specifications.
Hot Feed vs Cold Feed Extruder Comparison
| Comparison Item | Hot Feed Extruder | Cold Feed Extruder |
|---|---|---|
| Material State | Pre-heated (60-80°C) | Fed directly at room temperature |
| Screw Design | Short screw, low compression ratio | Long screw, high compression ratio (1:1.5-2.0) |
| Energy Consumption | Higher (requires pre-heating) | Lower |
| Applicable Materials | Natural rubber, butyl rubber, etc. | Better for synthetic rubber (e.g., EPDM) |
| Application Scenarios | Inner tubes, thick-walled products | Sealing strips, wire & cable (complex profiles) |
Product Details
Highlight:
55kw Rubber Hot Feed Extruder
,XJP-120 Model Rubber Extruder Machine
,Tire Tread Rubber Extrusion Hot Feed Extruder
Model:
XJP-120
Energy Type:
Electricity
Heating System:
Electric Heating
Dimension:
2800*1000*1700mm
Cooling Water Pressure:
0.2-0.3MPa
Process Material:
Rubber Profiles
Model No:
90
Cooling Pressure:
0.2-0.3
Application:
Extruding Rubber Materials
Temperature Range:
0-400℃
Application Industries:
Manufacturing Plant
Screw Channel Structure:
Deep Screw
Heating Method:
Electric Heating
Speed Ratio:
4.5:1
Operation Mode:
Automatic
