10 Inch Twin Head Rubber Strainer Extruder with 1600kg/Hour Capacity for Filtered Rubber Processing
Product Summary
10-Inch Twin-Head Rubber Strainer Extruder - 1600kg/Hour Capacity The 10-inch Twin-Head Rubber Strainer is a high-performance industrial equipment specifically engineered for the rubber processing industry. With an impressive capacity of 1600 kg/hour, this machine plays a vital role in ensuring ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XJL-250
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description
10-Inch Twin-Head Rubber Strainer Extruder - 1600kg/Hour Capacity
The 10-inch Twin-Head Rubber Strainer is a high-performance industrial equipment specifically engineered for the rubber processing industry. With an impressive capacity of 1600 kg/hour, this machine plays a vital role in ensuring superior rubber product quality by effectively removing impurities from raw rubber materials.
Key Features & Benefits
Twin-Head Design
The innovative twin-head configuration significantly enhances filtration efficiency by providing a larger filtration area compared to single-head strainers. This design enables simultaneous processing of more rubber material, directly contributing to the high hourly capacity of 1600 kg. The parallel operation of both heads ensures even distribution of rubber flow, maintaining stable and continuous filtration throughout the production process.
10-Inch Size Optimization
The 10-inch dimension is precisely engineered to optimize the balance between throughput capacity and filtration precision. This size provides optimal passage for rubber materials, enabling smooth operation while effectively trapping even fine-sized impurities. Suitable for diverse rubber processing applications, from small-scale production lines to large industrial operations.
High-Capacity Filtration
With a robust capacity of 1600 kg/hour, this strainer meets the demanding requirements of medium to large-scale rubber manufacturing processes. Whether producing tires, rubber hoses, or other rubber-based products, the high-capacity filtration ensures clean rubber feedstock ready for subsequent processing stages. This enhances final product quality while increasing overall production efficiency by minimizing interruptions caused by impurities.
Working Principle
The rubber strainer operates on an efficient mechanical principle. Rubber materials are fed into the strainer and propelled forward by a screw mechanism. As the rubber moves through the twin-head section, it passes through fine-meshed filters designed to trap impurities including dirt, metal particles, and un-vulcanized rubber clumps. The clean, filtered rubber then exits the strainer, prepared for the next manufacturing stage. The twin-head design and screw mechanism ensure even distribution and thorough filtration.
Industrial Applications
This high-capacity rubber strainer is extensively used across various rubber-related industries. In tire manufacturing, it is essential for ensuring impurity-free rubber that enhances tire durability and performance. For rubber hose production in automotive, industrial, and hydraulic applications, the 1600 kg/hour capacity maintains rubber quality, ensuring leak-free hoses with extended service life. Additional applications include manufacturing rubber seals, gaskets, and various rubber components across multiple industrial sectors.
Technical Specifications
| Items/Model | XJL-150A | XJL-200 | XJL-250 |
|---|---|---|---|
| Screw diameter (mm) | 150 | 200 | 250 |
| Max. screw speed (r/min) | 41.6 | 47.2 | 40 |
| Drive motor model | Y280M-8 | Y315-6 | Y315L1-6 |
| Capacity (kw) | 45 | 90 | 110 |
| Cutting device speed (r/min) | 16 | 16.8 | 11 |
| Steam pressure (MPa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Cooling water pressure (MPa) | 0.2-0.3 | 0.2 | 0.2 |
| Max. production capacity (kg/h) | 400 | 800 | 1600 |
| Size (mm) | 2873*1220*1377 | 4248*1995*1493 | 4440*1180*1650 |
| Quantity (kg) | 6500 | 8600 | 9000 |
Maintenance & Durability
The 10-inch Twin-Head Rubber Strainer is designed for easy maintenance and long-term reliability. Filter elements are readily accessible and easily replaceable when clogged or worn, minimizing downtime while maintaining high-capacity performance. Constructed from high-quality corrosion-resistant steel, the strainer withstands harsh rubber processing environments including high temperatures and abrasive forces, ensuring exceptional durability and extended operational lifespan.

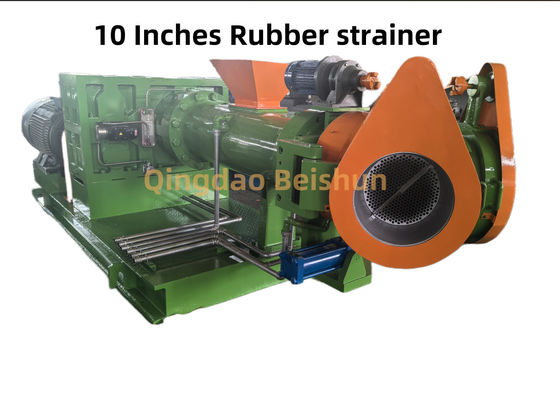

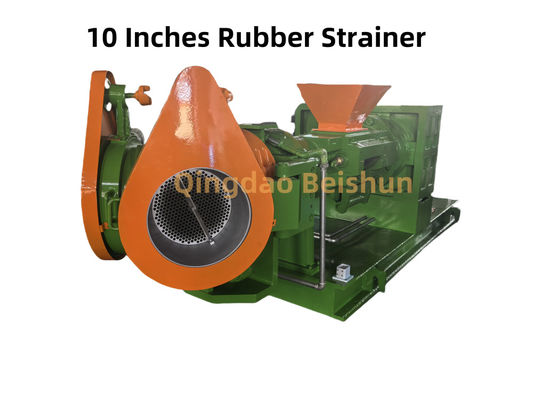

Product Images
Product Details
Highlight:
10-Inch Rubber Strainer Extruder
,Twin-Head Rubber Strainer Extruder
,1600kg/Hour Rubber Strainer Extruder
Applicable Industries:
Rubber
Automatic Grade:
Automatic
Plc Brand:
Mitsubishi
Local Service Location:
Qingdao China
Specification:
Customized
Condition:
New
Heating Power:
12KW
Color:
Blue Or Customized
Screw Material:
38CrMoAlA
Max Output:
1600kg/h
Feature:
Filtered Rubber
Screw Diameter:
250mm
Motor Power:
132kw
