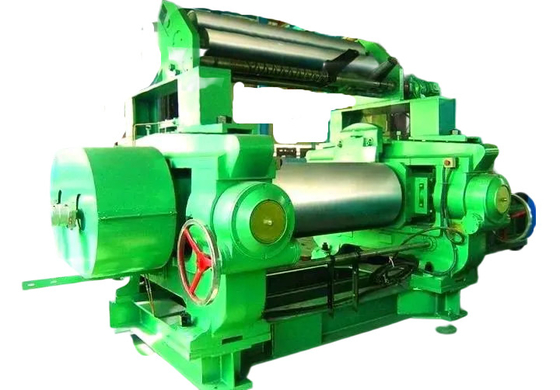

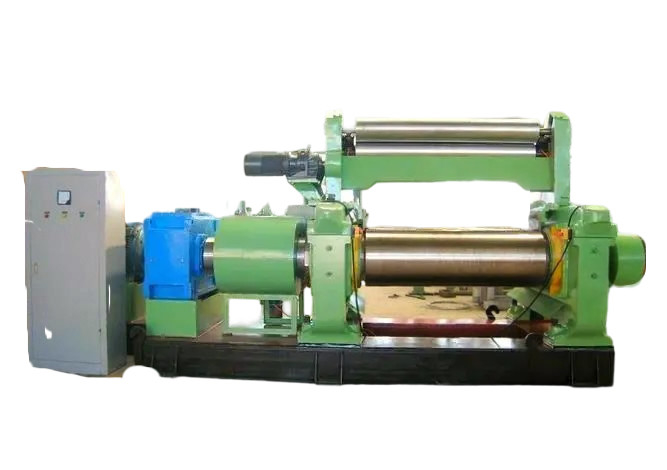

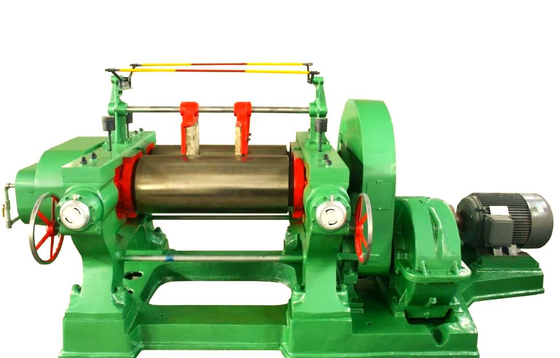

Energy-saving XK-450 Open Mixing Mill ,The Ultimate Mixing Solution For Rubber And Plastic Processing
Open mill: a powerful assistant for rubber and plastic processing
Open mill, also known as rubber mixing mill, open mill or mixing mill, is an indispensable equipment in rubber and plastic processing. Its main working parts are two hollow rollers rotating in opposite directions, one is fixed and the other can be moved forward and backward manually or electrically to adjust the roller distance to meet different operating requirements.
1.Working principle:
The raw rubber or rubber material is rolled into the gap between the two rollers under the rotation of the rollers and is subjected to strong shearing action, thereby achieving the purpose of plasticizing or mixing. This equipment is also widely used in plastic processing and other fields.
2.Application of open mill:
In plastic product factories, open mills are usually called two-roll mills. It is one of the earliest mixing equipment used in the production of plastic products. On the calender production line, the open mill is responsible for mixing and plasticizing the uniformly mixed raw materials to provide uniform molten material for the calender.
3.Structure and characteristics of open mill:
Simple structure, easy to manufacture and maintain, and easy to master operation. Nevertheless, the open mill also has its limitations, such as the large physical exertion of workers when operating it, and the need to manually turn the mixed material under high temperature environment, which will affect the mixing quality of the raw materials.
4.The versatility of the open mill:
The open mill can not only be used for mixing rubber and plastic, but also for recycling waste plastic film for re-refining. In the floor leather production line, the open mill can provide a uniform base coating for the cloth leather.
In general, the open mill is widely used in plastic product enterprises. Although there are some shortcomings, it is still an indispensable part of the production process.
| Type | XK-250 | XK-300 | XK-360 | XK-400 | XK-450 | XK-560 | XK-550 | XK-610 |
| Rolls Working Diameter(mm) | 250 | 300 | 360 | 400 | 450 | 560 | 550 | 610 |
| Rolls Working Length(mm) | 620 | 750 | 900 | 1000 | 1200 | 1530 | 1530 | 1930 |
| Working Linear Speed of Front Roll (m/min) | 15.1 | 15.1 | 16.25 | 18.65 | 24.5 | 27.7 | 27.7 | 30.5 |
| Max Gap (mm) | 10 | 10 | 10 | 10 | 15 | 15 | 15 | 15 |
| Capacity Per.Batch (kg) | 10-15 | 15-20 | 20-25 | 18-35 | 25-50 | 50-65 | 50-65 | 140 |
| Driving Motor Power (KW) | 18.5 | 22 | 30 | 37 | 55 | 95 | 95 | 160 |
| Overall Dimension(L*W*H) (mm) | 3400*1350*1500 | 3580*1550*1695 | 3940*1780*1740 | 4250*1850*1770 | 5200*2380*1970 | 6120*2500*2100 | 6120*2500*2100 | 6475*3146*2035 |
| Weight (KG) | 3500 | 5200 | 5670 | 7600 | 13000 | 22000 | 22000 | 44000 |
|
