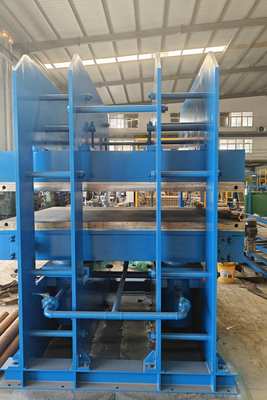

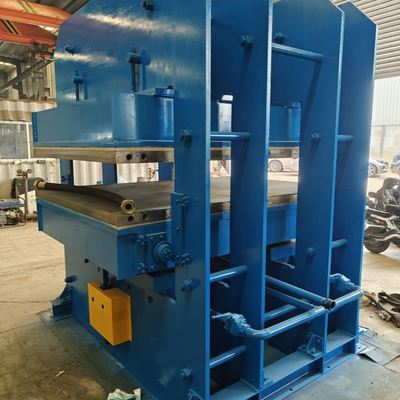

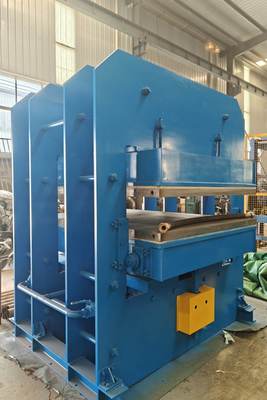

1000×1000mm Workbench Size Frame Flat Plate Vulcanizing Press with PLC Control and 0-300°C Temperature Range for Automotive Engine Seal Production
Product Summary
1000*1000mm Frame Flat Plate Vulcanizing Press for Automotive Engine Seal Production The 1000*1000mm Frame Flat Plate Vulcanizing Press is designed for producing automotive engine seals and other rubber products that require precise forming and vulcanization under controlled temperature and pressure ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XBL-1000*1000/5MN
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description
1000*1000mm Frame Flat Plate Vulcanizing Press for Automotive Engine Seal Production
The 1000*1000mm Frame Flat Plate Vulcanizing Press is designed for producing automotive engine seals and other rubber products that require precise forming and vulcanization under controlled temperature and pressure conditions.
Primary Applications
Sealing Products
- O-rings of various specifications and materials
- Engine cylinder gaskets and pipe flange gaskets
- Oil seals for mechanical equipment
- Door and window weatherstrips
Shock Absorbers and Cushioning
- Rubber shock absorbers for machinery and construction
- Air springs and airbags
- Industrial cushion pads and fenders
Rubber Sheets and Composite Materials
- Oil-resistant, acid-resistant, and insulating rubber sheets
- Patterned anti-slip flooring sheets
- Food-grade rubber sheets
- Rubber-metal and rubber-canvas composite sheets
Rubber Roller Covering
Ideal for small to medium-sized rubber rollers and repair applications where metal roller cores are placed in molds and rubber compound is injected for vulcanization under pressure and heat.
Conveyor Belt Production
- Lightweight conveyor belt segments
- Conveyor belt joint vulcanization for on-site repairs
Molded Rubber Products
- Automotive bushings, dust covers, and rubber sleeves
- Electronic components and keyboard keys
- Daily use items including rubber soles and bottle cap pads
Technical Advantages
- Stable hydraulic pressure system ensures complete mold filling and bubble elimination
- Uniform temperature distribution through steam or electric heating channels
- Wide mold adaptability with multi-cavity mold support
- PLC-controlled operation for precise parameter setting and recording
Frame Type Curing Press Specifications
| Model | Plate Size | Total Pressure | Plate Pressure | Piston Diameter | Piston Number | Piston Stroke | Working Layer |
|---|---|---|---|---|---|---|---|
| XLB-1100*5700 | 1100*5700 | 17.55 MN | 2.8 MPa | 500 mm | 5 | 520 mm | 2 |
| XLB-1400*5700 | 1400*5700 | 25.00 MN | 3.13 MPa | 360 mm | 10 | 400 mm | 2 |
| XLB-1400*10000 | 1400*10000 | 49.00 MN | 3.5 MPa | 450 mm | 20 | 300 mm | 1 |
| XLB-1600*8500 | 1600*8500 | 47.60 MN | 3.5 MPa | 500 mm | 14 | 300 mm | 1 |
| XLB-1600*10000 | 1600*10000 | 56.00 MN | 3.5 MPa | 450 mm | 18 | 400 mm | 2 |
| XLB-2000*10000 | 2000*10000 | 70.00 MN | 3.5 MPa | 600 mm | 16 | 300 mm | 1 |
Production Process Overview
- Spindle rack → Tension station → Pendulum moving device
- Make-up carriage → Cloth coiling/back to pull open with guide born
- Guide roller group → Front entrap stretching device
- Front demould device → Main vulcanizer → Rear demould device
- Centre entrap device → Patching vulcanizer
- Multifunctional drawstring device → Hydraulic cutting machine
- Deflection centering counting device → Double roller side wall and rewinding packaging machine
Quality Standards
This production line complies with GB/T97700-2001 and GB/T7984-2001 standards for conveyor belt production. Plate vulcanizing design and manufacturing adhere to HG/3034-1999 standards.
Product Details
Highlight:
1000x1000mm vulcanizing press machine
,automotive engine seal vulcanizing press
,flat plate rubber vulcanizing press
Mode Of Production:
Support Customization
Hot Plate Size:
1000*1000mm
Clamping Force:
Customized
Temperature Range:
0-300°C
Plunger Material:
Chilled Cast Iron
Warranty:
1 Year
Control Method:
PLC Control
Usage:
Rubber Product Making
Cylinder Diameter:
350mm
Heating Method:
Electric Heating/Steam Heating
Vulcanizing Temperature:
200℃
Key Selling Points:
Good Quality And Price
Control Type:
CNC
Voltage:
220V/380V
Quality Guarantee:
5 Yrs
