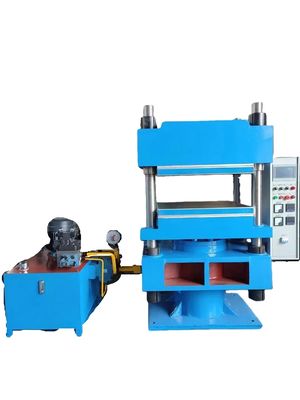

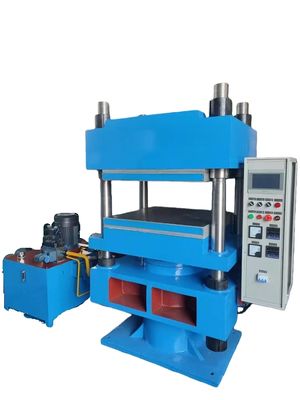

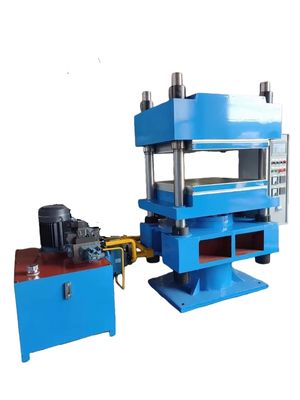

100-ton Pressure Rubber Vulcanizing Machine with 800×800 Worktable and 4 kW Motor Power
Product Summary
100-ton Pressure Rubber Vulcanizing Machine / 800*800 Worktable Overview This Hydraulic Press is designed to apply immense heat and pressure to raw rubber compounds inside a mold. This process, called vulcanization, transforms the soft, plastic-like raw rubber into a strong, elastic, and durable ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XLP-800×800/1.0MN
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,Western Union
Supply Ability:
30sets/month
Product Description
100-ton Pressure Rubber Vulcanizing Machine / 800*800 Worktable
Overview
This Hydraulic Press is designed to apply immense heat and pressure to raw rubber compounds inside a mold. This process, called vulcanization, transforms the soft, plastic-like raw rubber into a strong, elastic, and durable final product.
The key specifications "100-ton" and "800x800 worktable" indicate its force and size, which are critical for determining its applications.
Key Specifications Explained
-
100-ton Pressure (1000 kN):This refers to the clamping force the machine can generate, equivalent to 100 tons (approximately 1,000 KiloNewtons) to keep the mold closed during vulcanization.This force prevents flash (excess rubber seeping out) and ensures parts are formed with precise dimensions and density.
-
800x800 Worktable (800mm x 800mm):This is the size of the platen - the heated steel plate that the mold sits on (approximately 31.5 x 31.5 inches).This determines the maximum mold size that can be accommodated or the number of smaller parts that can be molded in one cycle.
Typical Components and Features
- Frame: Robust structure (C-frame or four-column) to withstand 100-ton force
- Hydraulic System: Includes pump, cylinder, and valves to generate and control pressing force
- Heating Platens: Large, flat, heated steel plates with heating options:
- Electric Heating Rods (most common)
- Steam Heating (for industrial applications)
- Hot Oil (for uniform temperature distribution)
- Control System: Programmable logic controller (PLC) and temperature controller for setting:
- Temperature (150°C - 200°C / 300°F - 400°F)
- Pressure (100-ton force)
- Curing Time
- Safety Features: Includes light curtains, two-hand controls, and mechanical guards
Common Applications
This machine is used for producing medium-to-large sized rubber products including:
- Rubber Mats & Flooring: Anti-fatigue mats, elevator mats, rubber tiles
- Automotive Parts: Engine mounts, gaskets, seals, bushings, diaphragms
- Industrial Products: Conveyor belt splices, rollers, seals, grommets, shock absorbers
- Silicone Products: Kitchenware, medical components, seals
- Footwear: Rubber soles and heels
Advantages of this Specific Size
- Versatility: Mid-range machine capable of handling wide array of products
- Efficiency: Can produce large single parts or multiple smaller parts per cycle
- Precision: Provides sufficient pressure for high-quality, flash-free parts
Summary
The 100-ton, 800x800 rubber vulcanizing machine is a versatile hydraulic press that transforms raw rubber into durable products through precise heat and pressure application. Its specifications make it ideal for producing medium-sized, high-quality rubber components.
Product Details
Highlight:
100-ton Pressure Rubber Vulcanizing Machine
,800×800 Worktable Hydraulic Press
,4 kW Motor Power Vulcanizing Press
Heating Way:
Steam Or Oil,electrical / Oil System
Vulcanizing Time:
0-999s
Main Motor Power:
4 Kw
Pressure Range:
0-25MPa
Temperature Range:
0-300°C
Condition:
New
Service Overseas:
Provision
Application:
Rubber Molding And Vulcanization
Color:
Customization
Type:
Column
Plunger Material:
Chilled Cast Iron
Auto:
Automatic
Working Layers:
Customized
Plates Daylight:
300mm
Platen Size:
800x800
