EPDM Rubber Granule Production Line with 120mm Screw Diameter, PLC Control, and Electric Heating for High-Quality Rubber Profile Extrusion

Brand Name:	Beishun
Model Number:	XJP-150/P
MOQ:	1set
Price:	Negotiable
Payment Terms:	T/T,L/C
Supply Ability:	10sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao

Certification:

CE/ISO9001

Core Components:

PLC, Motor, Pump

Liner Hardness:

950-1000HV

Feeding Type:

Forced Feeding

Screw Diameter:

120mm

Heating System:

Electric Heating

Process Material:

EPDM, NBR, Nature Rubber

Dimension:

2000mm*800mm*1500mm

Temperature Range:

0-300℃

Specification:

Customized

Controlsystem:

PLC Control

Application:

Rubber Profile Extrusion

Waranty:

One Year Life

Heating Method:

Electric

Product Type:

Rubber Extruder

Barrel Material:

Nitrided Steel

Packaging Details:

20GP

Highlight:

120mm Screw Diameter EPDM Extruder

PLC Control EPDM Rubber Granule Production Line

Electric Heating Vulcanizing Tank

Product Description

EPDM Rubber Granule Production Line for Sports Surfaces

Complete manufacturing system for producing colored EPDM rubber granules used in high-performance athletic tracks, playground safety surfacing, and multi-sport facilities.

Final Product Characteristics

Durable & Elastic: EPDM synthetic rubber with excellent UV, ozone, and weather resistance
Vibrant Colors: Wide range of UV-stable pigmented granules
Precise Sizing: Consistently graded particles (0.5-1.5mm, 1-3mm, 2-4mm)
High Purity: Typically >95% EPDM rubber content

Production Process Flow

Process Stage	Equipment & Function
Raw Material Handling	Silos, hoppers, automated weighing systems for precise batching
Mixing & Compounding	High-speed internal mixers combining EPDM rubber, fillers, plasticizers, and pigment masterbatch
Forming & Shaping	Two-roll mills or calenders creating uniform rubber sheets
Vulcanization	Continuous vulcanization ovens for polymer cross-linking and curing
Granulation & Sizing	Crushers, granulators, and multi-deck vibrating screens for precise particle formation
Quality Control	Metal detection, color measurement, and physical property testing

Core Equipment Components

Material Handling & Mixing System

Silos and hoppers for EPDM raw materials
Precision automated weighing systems

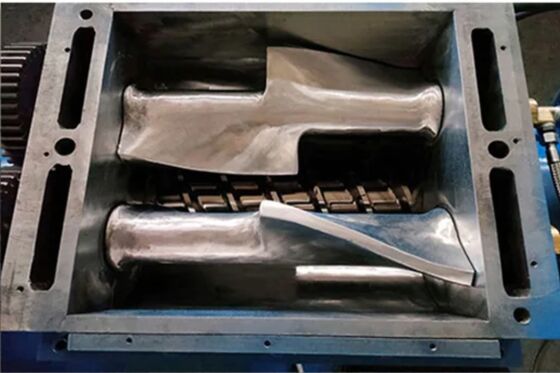

High-speed internal mixers (Banbury-type)

Forming & Vulcanization System

Two-roll mills and calenders for sheet formation
Continuous vulcanization ovens (hot air or microwave)
Multi-zone temperature control systems

Granulation & Grading System

Primary crushers for sheet breakdown
Precision granulators and milling machines
Multi-deck vibrating screens and sifters
Dust removal systems (cyclone + bag filter)

Quality Control & Packaging

Metal detection equipment
Automatic packaging scales (25kg bags or big bags)
Colorimeters and physical testing laboratories

Key Production Considerations

Recipe Formulation

Critical balance of EPDM polymer, filler loading, and color masterbatch for optimal performance and color fastness

Vulcanization Control

Precise temperature and speed management to prevent under-cure (soft particles) or over-cure (brittle particles)

Particle Geometry

Irregular surface texture for better interlocking in final track surfaces

Environmental Management

Comprehensive dust collection, VOC control, and noise management systems

Production Line Configurations

Fully Automatic: Integrated PLC-controlled systems from mixing to palletizing
Semi-Automatic: Manual operations at specific stages for medium-scale production
Dedicated vs Flexible: Specialized for specific size ranges or adaptable for multiple applications

Production Capacity: Systems available from 500kg/hr to 2,000kg/hr with significant space and power requirements for full-scale operation.
