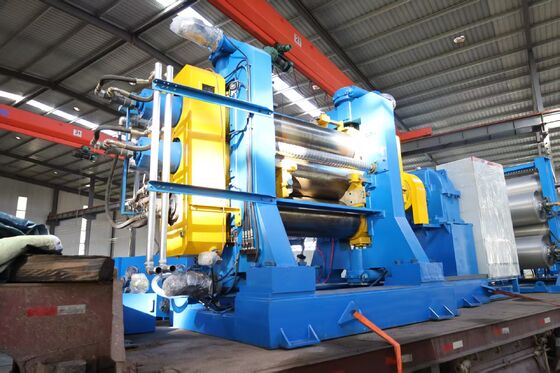

Automatic PLC High-quality 3-roll Rubber Calenders Are Used In Motorcycle Tyre Tread Production Lines.
Product Summary
Automatic PLC High-Quality 3-Roll Rubber Calenders for Motorcycle Tyre Tread Production Three-roll calender machines are precision engineered for motorcycle tyre tread production lines, offering reliable performance and exceptional film quality. Primary Applications This calendering machine is ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XY-3I(Γ) 550×1500
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
L/C,T/T
Supply Ability:
30sets/60day
Product Description
Automatic PLC High-Quality 3-Roll Rubber Calenders for Motorcycle Tyre Tread Production
Three-roll calender machines are precision engineered for motorcycle tyre tread production lines, offering reliable performance and exceptional film quality.
Primary Applications
This calendering machine is designed for calendering films and applying/coating glue on textiles. Available in various configurations including two-roll, three-roll, four-roll, and five-roll models, with three-roll and four-roll calenders being the most commonly used in industrial applications.
Key Structural Features
- Integral welded base with annealing treatment ensures exceptional stability and vibration resistance
- Rolling bearings at both roller ends provide high precision film production and extended equipment lifespan
- Oil lubrication system with thin oil supply features automatic protection - main unit cannot operate without activated lubrication
- Flexible adjustment options including electrically controlled or manual adjustment systems
- Cold-hardened alloy cast iron rollers with mirror-smooth surface finishes available upon request
- Hard-toothed box-type reducer ensures long service life and minimal operational noise
Technical Specifications
| Model | XY-3I(Γ) 230×630 | XY-3I(Γ) 252×720 | XY-3I(Γ) 360×1120 | XY-3I(Γ) 400×1200 | XY-3I(Γ) 450×1400 | XY-3I(Γ) 550×1500 | XY-3I(Γ) 610×1730 | XY-3I(Γ) 710×1800 | XY-3I(Γ) 710×2130 | XY-3I(Γ) 800×2500 | XY-3I(Γ) 860×2500 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Roll diameter (mm) | 230 | 252 | 360 | 400 | 450 | 500 | 610 | 710 | 710 | 800 | 860 |
| Roll length (mm) | 630 | 720 | 1120 | 1200 | 1400 | 1500 | 1730 | 1800 | 2130 | 2500 | 2500 |
| Roller speed ratio | 1:1:1 1:1.2:1 |
1:1:1 | 1:1:1 0.733:1:1 0.733:1:0.733 |
1:1:1 1:1.383:1.383 1:1.383:1 |
1:1:1 1:1.5:1 |
1:1:1 1:1.5:1 |
1:1:1 1:1.4:1 |
0.5~1 | 1:1:1 | 0.5~1 | 0.5~1 |
| Middle roller linear speed (m/min) | 0.8-8 | 2-15.9 | 3-20 | 3-26.39 | 2.62-26.2 | 3-30 | 5.4-54 | 4-40 | 8-50 | 3-30 | 4-40 |
| Adjustable range (m) | 0-7 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-20 | 0-30 | 0-20 | 0-30 | 0-30 |
| Minimum product thickness (mm) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.15 | 0.2 | 0.15 | 0.2 | 0.5 |
| Product width (mm) | 500 | 550 | 920 | 1200 | 1250 | 1300 | 1500 | 1600 | 1900 | 2200 | 2200 |
| Motor power (KW) | 7.5 | 22 | 45 | 55 | 75 | 110 | 160 | 90k2, 110k1 | 185 | 132k3 | 132k3 |
| Dimensions L×W×H (mm) | 3168×890×1830 | 3950×1720×1210 | 6500×1500×2440 | 6300×1500×2440 | 7320×2200×2900 | 7550×2400×3800 | 7010×3950×3730 | 9950×3050×4540 | 7650×4560×4080 | 11400×3200×5050 | 12000×3200×5100 |
| Weight (t) | ~3 | ~5.5 | ~14 | ~18 | ~21 | ~35 | ~42 | ~90 | ~67 | ~110 | ~130 |
Product Images
Product Details
Highlight:
automatic PLC rubber calender machine
,3-roll rubber calender for tyre tread
,motorcycle tyre production calender machine
Voltage:
220V/380V/400V/440/
Heating:
Electricity / Oil / Steam
Powersource:
Electric Motor
Calendar Machine:
Three Roll Calender Machine
Gearbox:
Hard Gear Reducer
Guarantee Period:
12 Months
Machine Type:
Calender Machine
Vacuum System:
Optional
Products Width:
100-500mm
Roll Material:
Chilled Cast Iron
Friction Ratio:
1:1:1 / 0.733:1:1 / 0.733:1:0.733
Cooling Mode:
Water
Roller Speed Ratio:
1 : 1 : 1 : 1
Energy Consumption:
1 / 3 Of Installed Capacity
Marketing Type:
New Product 2020
Type:
Three Roller
