XLB-500×500 Small Double-Seat Vulcanizing Machine - One-Stop Double-Unit Rubber Hot Press - 50-Ton/80-Ton Twin-Shaft Flatbed Press

XLB-500×500 Small Double-Seat Vulcanizing Machine - One-Stop Double-Unit Rubber Hot Press - 50-Ton/80-Ton Twin-Shaft Flatbed Press

Brand Name:	Beishun
Model Number:	XLB-600*600
MOQ:	1set
Price:	Negotiable
Payment Terms:	T/T,L/C
Supply Ability:	30sets/60day

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao

Certification:

ISO/CE

Voltage:

220V/380V/400V/440/

Power(w):

1.5KW - 75 KW,4KW,2.2,2.2KW,36Kw

Condition:

New

Weight:

According To Size

Warranty:

1 Year,1 Year For Single Vulcanizing Press Machine

Type:

Vulcanizer,Column,tablet Press,PLC Control,Plate Vulcanizing Press

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Video Technical Support,Overseas Third-party Support Available,Field Installation

Color:

Blue,Yellow,White And Others Accepted,customization,orange

Application:

Vulcanizing To Be Final Product,conveyor Belt Hot Vulcanizing Joint,Steel Cord And Multi-ply Conveyor Belt Joint,Vulcanizing Rubber Products,Splicing And Repairing Conveyor Belts

Working Layer:

1,4-6 Molds,2,2-4 Layers

Product Name:

Rubber Hot Plate Vulcanizing Machine,1400x5700mm Platen Size Rubber Conveyor Belt Vulcanizing Press,Rubber Conveyor Belt Jointing Vulcanizing Press Machine,Rubber Vulcanizing Press

Name:

Lab Rubber Heating Plat Vulcanizing Press Machine,Vacuum Rubber Vulcanizer Press Machine,Rubber Compression Molding Machine,Single Vulcanizing Press Machine / PLC Control

Material:

Aluminum Alloy

Year:

Custom,2018

Cooling Time:

About 5 Mins,5 Minutes

Plunger Diameter:

180-290mm,200 Mm

Vulcanizing Temperature:

Adjustable,145 °C

Heating Way:

Steam Or Oil,electrical / Oil System

Packaging Details:

40GP

Highlight:

50-ton double-seat vulcanizing machine

80-ton twin-shaft rubber press

small double-unit rubber hot press

Product Description

The XLB-500×500 Small Double-Seat Vulcanizing Machine is an integrated two-unit hot pressing system featuring twin hydraulic cylinders for stable operation. With a platen size of 500×500 mm and two clamping force options (50-ton and 80-ton), this compact, efficient machine is ideal for compression molding and vulcanization of small rubber, silicone, and thermosetting plastic products.

Technical Specifications

Item	50 Ton Model	80 Ton Model
Model	XLB-500×500×2/0.5MN	XLB-500×500×2/0.8MN
Nominal Clamping Force	500 kN (50 Ton)	800 kN (80 Ton)
Platen Dimension	500×500×60 mm	500×500×60 mm
Working Station	2 stations	2 stations
Main Motor Power	2.2 kW	2.2 kW
Heating Temperature	Room temperature ~ 180 °C (adjustable)	Room temperature ~ 180 °C (adjustable)
Temperature Control Accuracy	±1~2 °C	±1~2 °C
Vulcanization Timer	0~99 min (adjustable)	0~99 min (adjustable)
Specific Platen Pressure	Approx. 2.0 MPa	Approx. 3.2 MPa
Overall Dimension	Approx. 2200×1200×1700 mm	Approx. 2300×1300×1750 mm
Machine Weight	Approx. 3500 kg	Approx. 4200 kg

Key Features & Advantages

Dual Independent Stations: Two working stations operate simultaneously or alternately without interference, maximizing production capacity and space utilization
Rigid Frame & Twin-Shaft Driving: Four-column structure with twin hydraulic cylinders ensures uniform pressure distribution and excellent platen parallelism for stable operation and long service life
Precision Electric Heating System: Electric heating tubes with PID intelligent temperature controller provide even heat distribution, energy efficiency, and clean operation
Optimized Hydraulic System: Fast lifting and lowering speeds with automatic pressure holding and compensation; manual and automatic working modes available for flexible operation
Complete Safety Protection: Equipped with safety guard, emergency stop button, over-temperature and overload protection devices meeting international safety standards
Customizable Configuration: Optional accessories include mould sliding mechanism, automatic mould opening, PLC full-automatic control with touch screen panel, and multi-layer platens

Application Range

Rubber & silicone sealing parts: O-rings, oil seals, gaskets
Silicone daily products: buttons, bracelets, kitchenware accessories
Rubber miscellaneous parts: rubber mats, dust covers and other molded rubber components
Laboratory use: formula research, sample testing and pilot production

Product Strengths

Integrated double-unit design reduces investment costs and floor space requirements

Two pressure specifications available to meet diverse production requirements

Compliant with CE & ISO standards for global market suitability

Stable performance with easy maintenance and cost-effective operation

Product Images

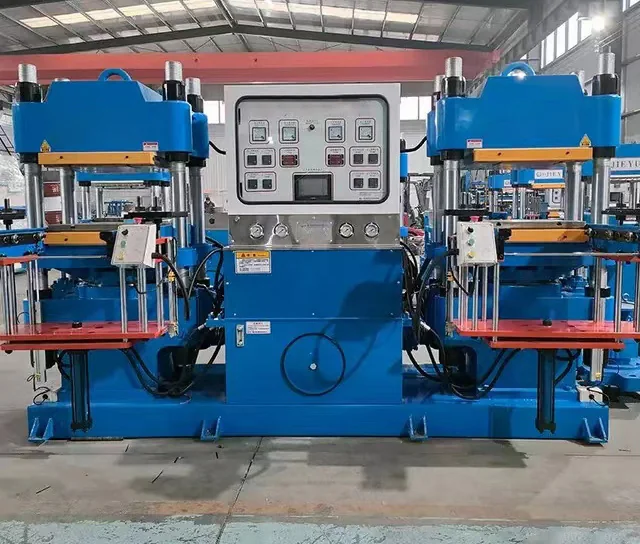

XLB-500×500 Double-Seat Vulcanizing Machine front view

XLB-500×500 Vulcanizing Machine side operational view

XLB-500×500 Twin-Shaft Press close-up detail
