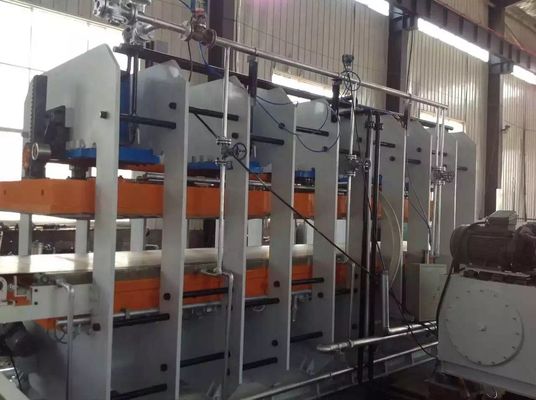

1500T PLC Control Electrical Heating Rubber Vulcanizing Press Machine Frame Type Hydraulic Vulcanizing Press
Product Summary
Automatic PLC Control Frame Type Vulcanizing Press Machine We provide a comprehensive range of vulcanizing hot press machines, ranging from 15 to 10,000 tons, primarily as made-to-order products. Our turnkey solutions include complete machinery installation and production line planning services. ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XLB-1500X6000X1/1500T
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description

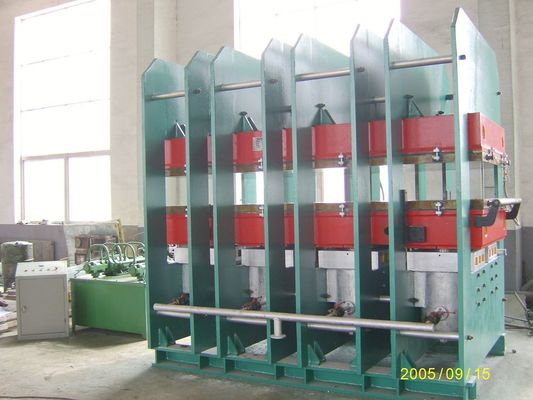

Automatic PLC Control Frame Type Vulcanizing Press Machine
We provide a comprehensive range of vulcanizing hot press machines, ranging from 15 to 10,000 tons, primarily as made-to-order products. Our turnkey solutions include complete machinery installation and production line planning services. These rubber vulcanizing presses are suitable for vulcanizing and compression molding of various rubber types including natural rubber, EPDM rubber, NBR rubber, synthetic rubber, and silicone rubber.
Technical Specifications
| Model | Total Pressure (MN) | Daylight (mm) | Working Layer No. | Piston Stroke (mm) | Main Motor Power (KW) | Overall Dimensions (L x W x H) (mm) |
|---|---|---|---|---|---|---|
| XLB-350×350×2 | 0.25 | 125 | 2 | 250 | 2.2 | 1200×580×1200 |
| XLB-400×400×2 | 0.50 | 125 | 2 | 250 | 2.2 | 1400×500×1400 |
| XLB-600×600×2 | 1.00 | 125 | 2 | 250 | 2.2 | 1880×820×1680 |
| XLB-750×850×4 | 1.60 | 125 | 4 | 500 | 3 | 1730×930×2460 |
| XLB-900×900×2 | 2.5 | 200 | 2 | 400 | 4 | 2345×960×1385 |
| XLB-1200×1200×1 | 3.15 | 300 | 1 | 300 | 4 | 2800×1300×2300 |
| XLB-1300×2000×1 | 5.60 | 400 | 1 | 400 | 8 | 2000×1860×2500 |
| XLB-1500×1500×1 | 8.00 | 800 | 1 | 800 | 16.5 | 2200×2200×4300 |
| XLB-1500×2500×1 | 15.00 | 400 | 1 | 400 | 11 | 3000×2500×3300 |
| XLB-2000×2000×1 | 20.00 | 400 | 1 | 400 | 11 | 3600×3000×3300 |
Frame Type Vulcanizing Press Machine Advantages
- Multiple small oil cylinders ensure uniform vulcanization pressure distribution across the hot plate, delivering superior vulcanization quality compared to traditional bottom-mounted flat vulcanizers
- Group-controlled cylinder pressure maintains stable product quality even with significant width variations
- Efficient hydraulic system design reduces installed capacity to one-third of traditional vulcanizers, significantly lowering operating costs
- Ground-level installation eliminates the need for deep foundation pits, reducing infrastructure costs and maintaining clean workspaces
- Consistent level operation throughout the process ensures convenient and efficient workflow
- Rational design facilitates easy daily maintenance and service
Machine Configuration & Components
- Advanced PLC control system with programmable operation sequences including automatic lifting, mold opening/closing, air exhausting, pressure filling, vulcanizing timing, alarm functions, and manual/automatic control switching
- Hydraulic system components primarily imported from Taiwan for reliability
- Machine body casting manufactured from FCD 50 ductile cast iron with high tensile strength after aging passivation
- Pillars/columns constructed from medium carbon steel with hardness reaching HRC55-58
- Three-stage winding cartridge heaters using nichrome wire with non-rust properties
- Wear-resistant, durable oil seals from Japanese brands and Sakagami ensuring oil tightness
- Main electrical components from Schneider or Mitsubishi for stable machine performance
- Optional mold push-pull device configuration available to improve efficiency and reduce labor requirements
- Precision temperature control system for hot platens ensures high accuracy and superior product quality
Product Details
Highlight:
Electrical Rubber Vulcanizing Press Machine
,Rubber Vulcanizing Press Machine Frame
,Frame Rubber Hydraulic Press Machine 1500T
Condition:
New
Warranty:
2 Years
After-Sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Video Technical Support,Overseas Third-party Support Available,Field Installation
Application:
Vulcanizing To Be Final Product, Steel Cord And Multi-ply Conveyor Belt Joint, Vulcanizing Rubber Products
Heating Way:
Electrical / Oil System
Control Method:
PLC Control
Type:
Frame Type
Working Layer:
1
