250T Rubber Vulcanizer Machine PLC Hydraulic Press Machine For Rubber Moulding
Product Summary
XLB-600X600X1/250T Automatic PLC Control Double Rubber Vulcanizing Press Machine Applications We provide a wide range of rubber vulcanizing hot press machine, ranging from 15 to 10,000 tons mostly made-to-order products. We provide turnkey solution and technical service, for complete machinery ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XLB-600X600X1/250T
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description

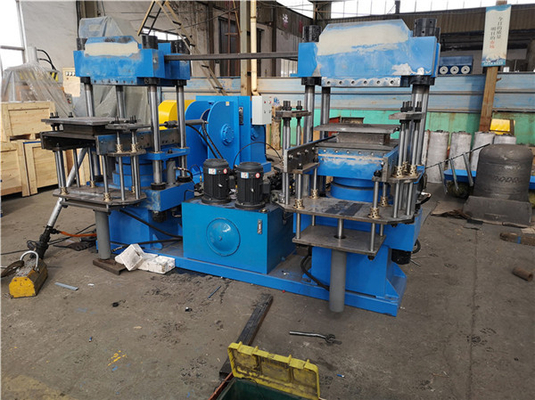

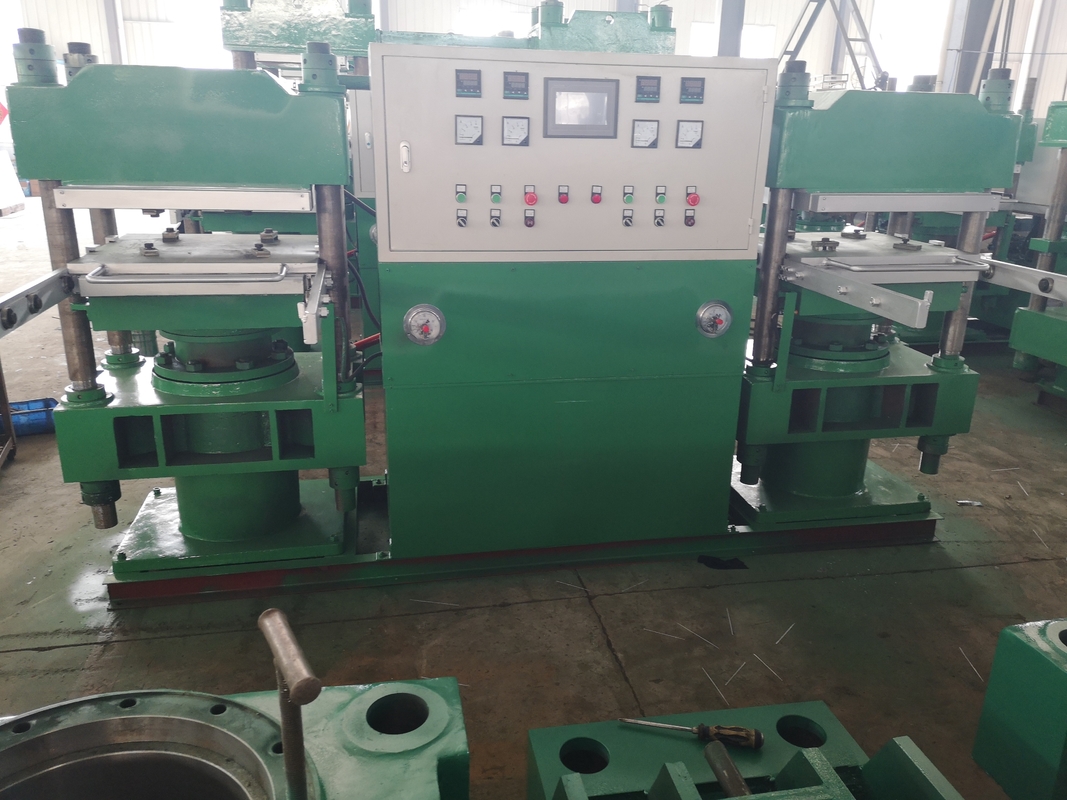

XLB-600X600X1/250T Automatic PLC Control Double Rubber Vulcanizing Press Machine
Applications
We provide a wide range of rubber vulcanizing hot press machine, ranging from 15 to 10,000 tons mostly made-to-order products. We provide turnkey solution and technical service, for complete machinery installation and production line planning. The double rubber vulcanizing press machine is suitable for the vulcanization of various rubber products, and is an advanced hot pressing equipment for pressing and forming various thermosetting plastics.
| Model |
Total Pressure (MN) |
Daylight (mm) |
Working Layer No. | Piston Stroke (mm) | Main Motor Power (KW) | Overall Diameter (L x W x H) (mm) |
| XLB-350×350×2 | 0.25 | 125 | 2 | 250 | 2.2 | 1200×580×1200 |
| XLB-400×400×2 | 0.50 | 125 | 2 | 250 | 2.2 | 1400×500×1400 |
| XLB-600×600×2 | 1.00 | 125 | 2 | 250 | 2.2 | 1880×820×1680 |
| XLB-750×850×4 | 1.60 | 125 | 4 | 500 | 3 | 1730×930×2460 |
| XLB-900×900×2 | 2.5 | 200 | 2 | 400 | 4 | 2345×960×1385 |
| XLB-1200×1200×1 | 3.15 | 300 | 1 | 300 | 4 | 2800×1300×2300 |
| XLB-1300×2000×1 | 5.60 | 400 | 1 | 400 | 8 | 2000×1860×2500 |
| XLB-1500×1500×1 | 8.00 | 800 | 1 | 800 | 16.5 | 2200×2200×4300 |
| XLB-1500×2500×1 | 15.00 | 400 | 1 | 400 | 11 | 3000×2500×3300 |
| XLB-2000×2000×1 | 20.00 | 400 | 1 | 400 | 11 | 3600×3000×3300 |
The rubber vulcanizing press machine is divided into three forms: electric heating, steam heating and oil heating.
This rubber vulcanizing press machine has perfect functions and compact structure. It has the characteristics of timing mold locking, automatic pressure compensation, automatic temperature control, automatic timing, uniform temperature on the surface of the hot plate, accurate and intuitive temperature control, stable and reliable pressure maintenance, and safe and convenient operation. Product quality, provide production efficiency, and obtain significant economic benefits.
Scope of application:
The rubber vulcanizing press machine can be used to make O ring, sealing parts, oil seal, auto parts, rubber crash pad, rubber air spring, key board, medical rubber parts, rubber bottle stopper, silicone wrist band, water-stop tape, bridge support/bridge bearings, rubber cable, electronics insulators etc.. This rubber vulcanizing press machine is a four-column bottom-top structure, and the main engine consists of an upper beam, a lower machine base, a movable platform, an automatic push-pull device, an oil cylinder group and a column. The plunger structure is installed in the lower base.
Features:
1. When the machine is working, the plunger moves from bottom to top to close the mold, press molding, automatic mold closing, automatic ejection, and automatic heat preservation, pressure preservation and exhaust functions to ensure product quality. This machine is equipped with hydraulic power source for single machine drive.
2. When the product is vulcanized and formed, the oil pump motor stops working, and has the automatic pressure compensation function and the oil pump shutdown delay, and the oil circuit configuration is more reasonable and reliable.
3. The deflation time, deflation times, heating temperature and vulcanization time can be set, and the operation is convenient.
4. The double-rubber vulcanizing press machine is a double-machine single-pump station structure. The oil pump is in the middle of the double machine, and the lower base is also used as an oil tank; the hydraulic and electrical systems have overload protection devices, which are safe and reliable to use.
5. The hydraulic cylinder adopts the technology imported from Germany, with reliable sealing and long service life.
6. The electrical box of this machine is fastened in the middle of the main machine, and there are double-sided operation buttons, which have functions such as curing time control, electric heating temperature control and hydraulic compensation.
7. The double vulcanizing press machine is equipped with an automatic ejection device with automatic ejection function.
8. The whole computer PLC can touch programming, customize the program, flexible operation, one person can operate two machines, and the efficiency is high.
Product Details
Highlight:
250T Rubber Vulcanizer Machine
,Rubber Vulcanizer Machine PLC
,PLC Hydraulic Press Machine For Rubber Moulding
Condition:
New
Warranty:
2 Years
Type:
Vulcanizer,Plate Vulcanizing Press
After-Sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Video Technical Support,Overseas Third-party Support Available,Field Installation
Voltage:
Customer Request
Application:
Vulcanizing To Be Final Product,conveyor Belt Hot Vulcanizing Joint,Steel Cord And Multi-ply Conveyor Belt Joint,Vulcanizing Rubber Products,Splicing And Repairing Conveyor Belts
Working Layer:
1
Product Name:
Rubber Hot Plate Vulcanizing Machine,1400x5700mm Platen Size Rubber Conveyor Belt Vulcanizing Press,Rubber Conveyor Belt Jointing Vulcanizing Press Machine,Rubber Vulcanizing Press
Name:
Single Vulcanizing Press Machine / PLC Control
Heating Way:
Electrical / Oil System
Control Method:
PLC Control
