| Brand Name: | Beishun |
| Model Number: | GSQ8-28 |
| MOQ: | 1set |
| Price: | USD15880 |
| Packaging Details: | wooden box |
| Payment Terms: | TT，L/C |
GSQ 8-28 Tyre Bead Wire Grommeting Forming Winding Machine
Tyre Bead Wire Extrusion Line
Applicant
This machine is production line of bead ring for tire manufacture, suitable for bead with rectangular of square cross section structure.
Structure feature
The main structure of this machine is composed by bead wire let-off device, bead wire heating device, grommeting extrusion, cooling traction storage device, length fixing & cutting device and bead chuck forming equipment, adopt PLC(program control) set circling numbers, bead ring free for cloth wrapping, automatic discharge. Wire extrusion die device is of wide adaptability and easy disassembly.
Main parameter
| Bead diameter(inch) | 8-28 | 3-12 |
| Wire let-off shelf(pcs) | 1-8 | 1-8 |
| Suitable bead roller diameter(mm) | 350 | 350 |
| Extruder (optional) | XJ65(hot feed) | XJ65(hot feed) |
| Wire die pad hole(pcs) | 1-8 | 1-8 |
| Bead chuck revolving speed(r/min) | 100 | 100 |
| Installed capacity(kw) | 36 | 36 |
| Overall size(mm) | 10500x2200x2800 | 10500x2200x2800 |

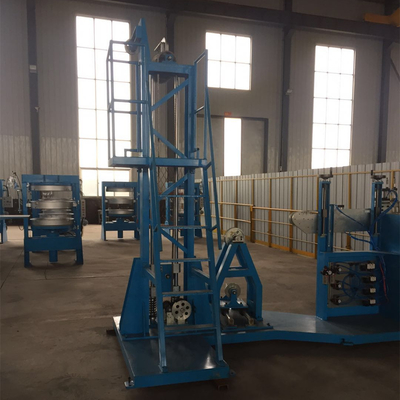

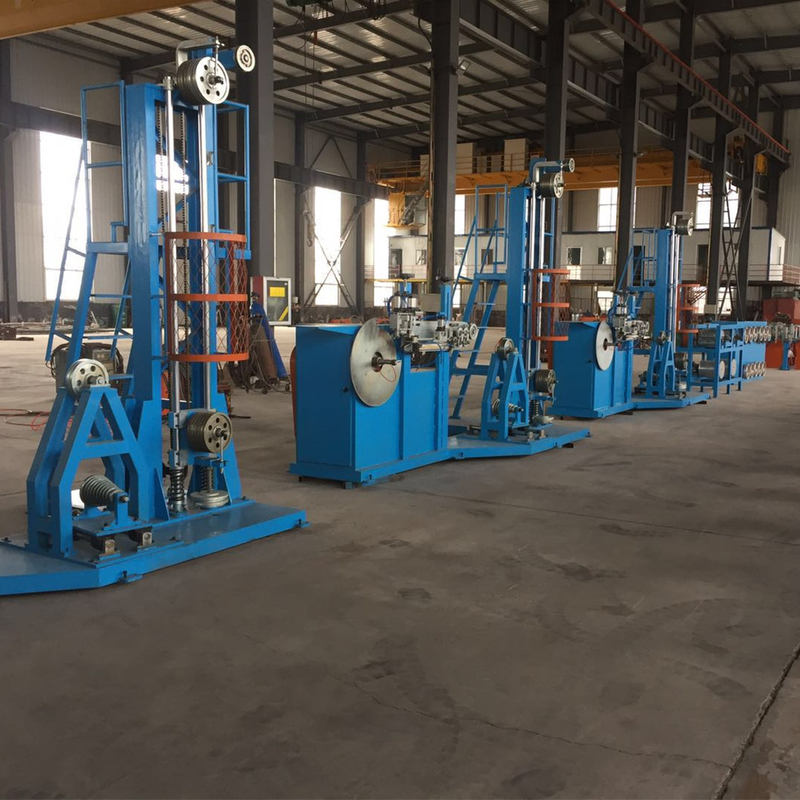

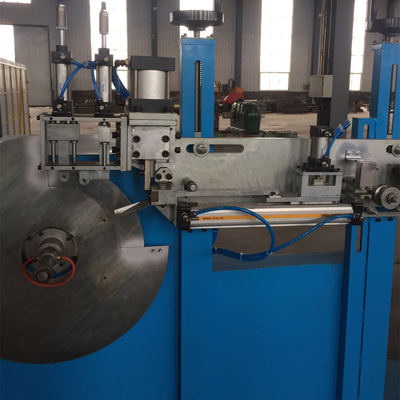

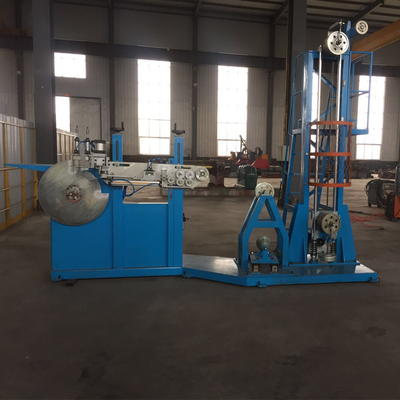

Machine detials
About my company
Qingdao Beishun Environmental Protection Technology Co., Ltd. is engaged in Environmental protection machinery, rubber machinery R & D and manufacturing enterprises, located in the west coast of Qingdao ---- Jiaonan city, Qingdao Economic and Technological Development Zone, adjacent to the former Bay near Qingdao Port and International Airport Liuting airport, excellent geographical location.
The company gathered a large number of the industry's outstanding technical and management personnel, advanced machining, heat treatment equipment and sophisticated detection equipment. With high-quality service, advanced equipment and strong technical force as the basis, through constant innovation and development, Beishun Environmental Protection Technology machinery has many customers at home and abroad to establish a stable business relationship, and gradually establish a brand in the same enterprise.
Companies adhere to the "first-class quality to gain market confidence, quality service to win customer satisfaction, continuous improvement of enterprise development seek to establish a corporate brand management excellence" business philosophy, in terms of quality, brand and work hard to achieve the strategic goals of common development.
Qingdao Beishun Environmental Protection Technology Co., Ltd. will carry forward the "realistic, innovative, rigorous and efficient" business style, good governance, integrity first, with a high sense of responsibility "in customer service, service to the community", with industry colleagues mutual benefit, for a better tomorrow.
Our packing and loading
|
