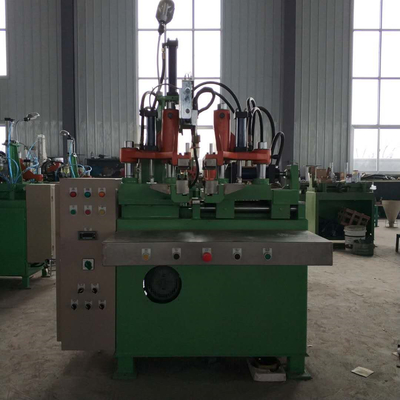

Hydraulic Inner Tube Motorcycle Tyre Making Machine Splicing Inner Tube Splicer
Hydraulic Inner Tube Splicing Machine/Inner Tube Jointing Machine
Inner Tube Splicer
Applicant
Mainly used in automobile, motorcycle, bicycle inner tube of butyl rubber or natural rubber tube splicing, with high efficiency and low work intensity.
The machine is operated by PLC program controller. Install linear motion bearing in the lower part of sliding butt plate, with a high precision when sliding left and right. Use a horizontal type longitudinal electric heating cutter to cut tire tube, the temperature of electric heating cutter can be ajusted according to technological requirements.
Main parameter
| Type | NJQ-120 | NJY-160 | NJY-200 |
| Width of abutting joint(mm) | 50-90 | 100-160 | 65-200 |
| Flat thickness of double layers(mm) | 1.6-6 | 1.8-8 | 2-8 |
| Max. Chunking power(kn) | 2.2 | 7.8 | 7.8 |
| Max. Abutting joint force(kn) | 12 | 40 | 55 |
| Input voltage(v) | 220 | 380 | 380 |
| Working pressure of air(liquid)(Mpa) | 0.6-0.8 | 4-6 | 4-6 |
| Min. Tube perimeter(mm) | 480 | 600 | 800 |
| Weight of single machine(kg) | 780 | 2000 | 2300 |
| Overall size(mm) | 900*730*1700 | 1235*950*1900 | 1270*1110*1900 |

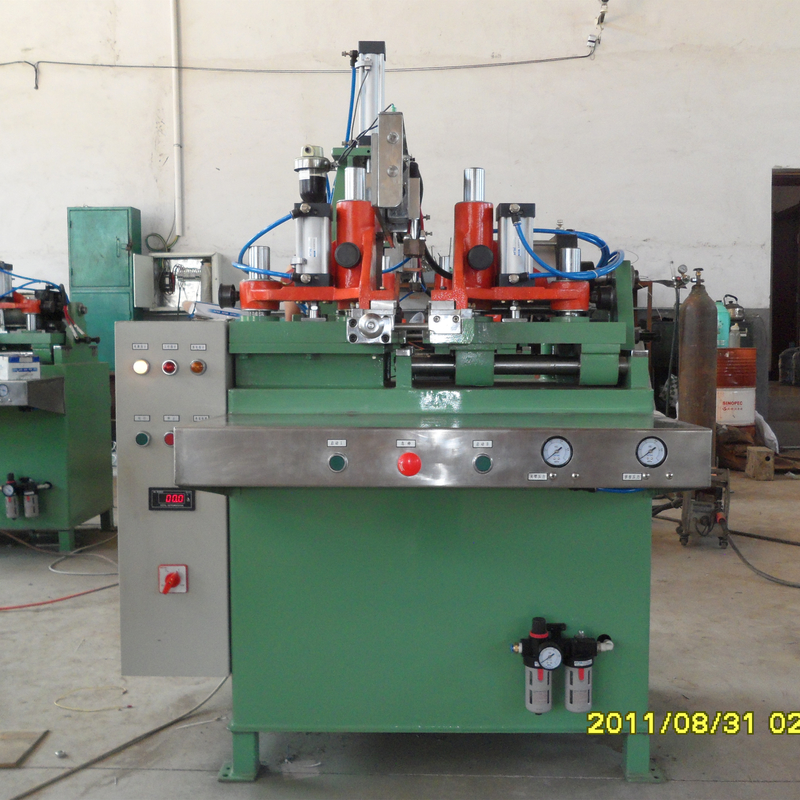

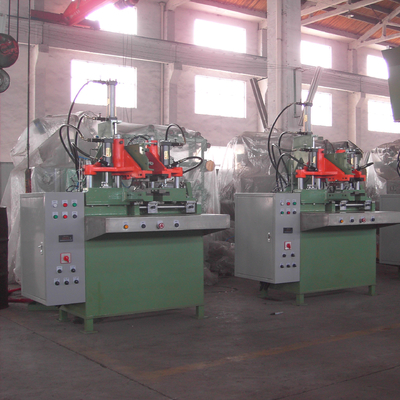

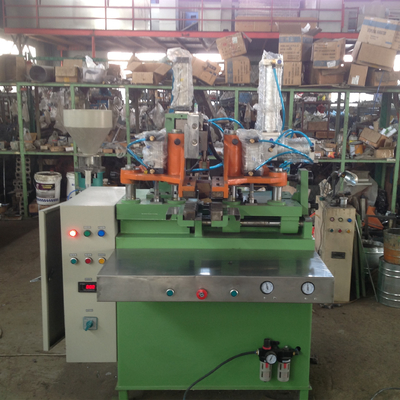

Machine details
About my company
Qingdao Beishun Environmental Protection Technology Co., Ltd. is engaged in Environmental protection machinery, rubber machinery R & D and manufacturing enterprises, located in the west coast of Qingdao ---- Jiaonan city, Qingdao Economic and Technological Development Zone, adjacent to the former Bay near Qingdao Port and International Airport Liuting airport, excellent geographical location.
The company gathered a large number of the industry's outstanding technical and management personnel, advanced machining, heat treatment equipment and sophisticated detection equipment. With high-quality service, advanced equipment and strong technical force as the basis, through constant innovation and development, Beishun Environmental Protection Technology machinery has many customers at home and abroad to establish a stable business relationship, and gradually establish a brand in the same enterprise.
Companies adhere to the "first-class quality to gain market confidence, quality service to win customer satisfaction, continuous improvement of enterprise development seek to establish a corporate brand management excellence" business philosophy, in terms of quality, brand and work hard to achieve the strategic goals of common development.
Qingdao Beishun Environmental Protection Technology Co., Ltd. will carry forward the "realistic, innovative, rigorous and efficient" business style, good governance, integrity first, with a high sense of responsibility "in customer service, service to the community", with industry colleagues mutual benefit, for a better tomorrow.
Our packing and loading
90mm Inner Tube Tire Making Machine
,90mm Hydraulic Tube Splicer
,Inner Tube Splicer
