| Brand Name: | Beishun |
| Model Number: | XLB-450X3600X5/720T |
| MOQ: | 1set |
| Price: | 15000-300000 |
| Payment Terms: | TT，L/C |

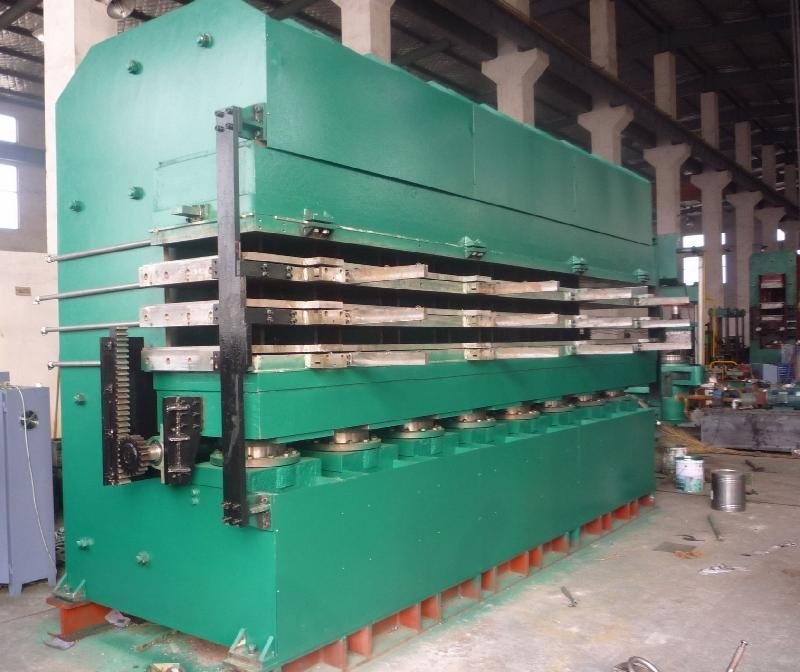

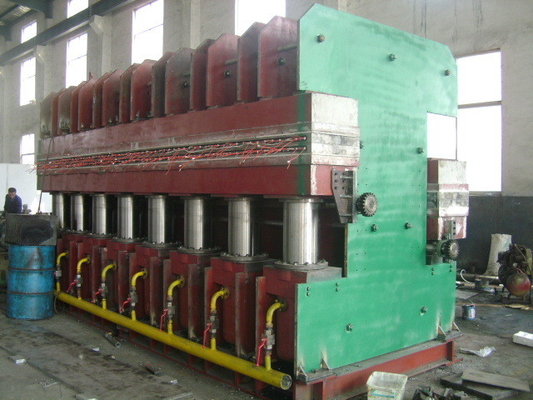

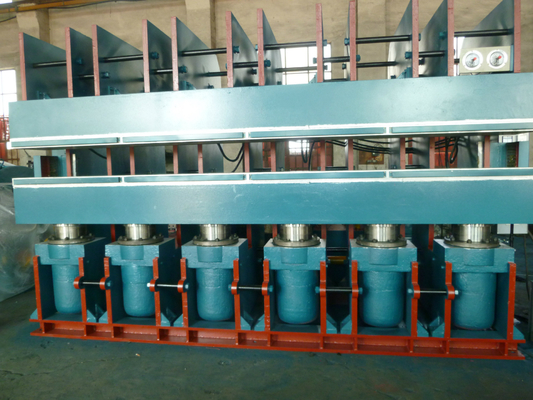

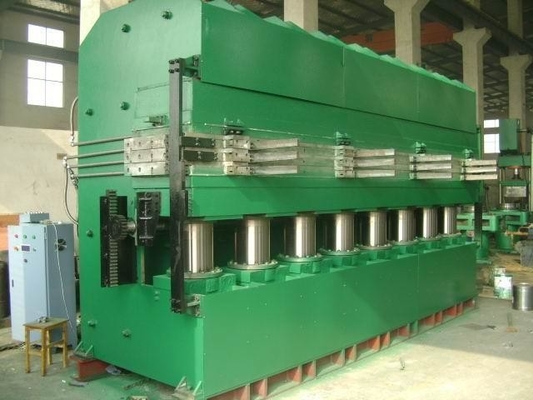

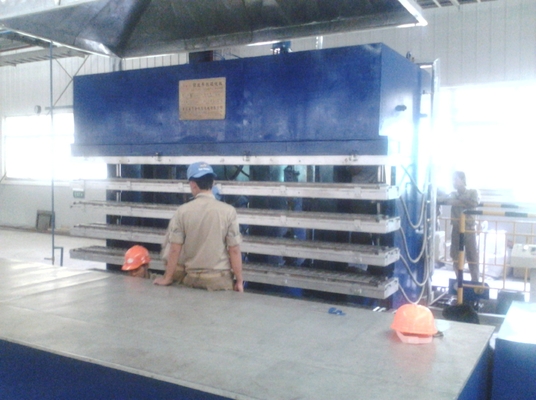

720T Automatic PLC Control Rubber Tread Vulcanizing Press Machine
Application:
Rubber Vulcanizing Press Machine applies to all kinds of rubber (natural rubber, EPDM rubber, NBR rubber, synthetic rubber, silicone rubber ext. ) vulcanizing and compression molding.
Like rubber seals, O-ring, oil seal, auto parts, rubber crash pad, rubber air spring, key board, medical rubber parts, rubber bottle stopper, silicone wrist band, water-stop tape, bridge support/bridge bearings, rubber cable, blankets, hand cart tires, rubber wheels, tractor tires, agricultural tires, and cycle tires, electronics insulators etc..
|
Model
|
Total Pressure (MN) | Daylight (mm) | Working Layer No. |
Piston Stroke (mm) |
Main Motor Power (KW) | Overall Diameter (L x W x H) (mm) |
| XLB-350×350×2 | 0.25 | 125 | 2 | 250 | 2.2 | 1200×580×1200 |
| XLB-400×400×2 | 0.50 | 125 | 2 | 250 | 2.2 | 1400×500×1400 |
| XLB-600×600×2 | 1.00 | 125 | 2 | 250 | 2.2 | 1880×820×1680 |
| XLB-750×850×4 | 1.60 | 125 | 4 | 500 | 3 | 1730×930×2460 |
| XLB-900×900×2 | 2.5 | 200 | 2 | 400 | 4 | 2345×960×1385 |
| XLB-1200×1200×1 | 3.15 | 300 | 1 | 300 | 4 | 2800×1300×2300 |
| XLB-1300×2000×1 | 5.60 | 400 | 1 | 400 | 8 | 2000×1860×2500 |
| XLB-1500×1500×1 | 8.00 | 800 | 1 | 800 | 16.5 | 2200×2200×4300 |
| XLB-1500×2500×1 | 15.00 | 400 | 1 | 400 | 11 | 3000×2500×3300 |
| XLB-2000×2000×1 | 20.00 | 400 | 1 | 400 | 11 | 3600×3000×3300 |
Features
-High speed open/close molds, high production efficiency.
-Automatic in/out mold and ejector device, low labor strength.
-Optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption.
-The electric system adopt PLC programming control, which is easy to be operated.
-The touch screen operation of pressure and temperature, which is easy to be operated.
Brief introduction:
1) It has 4-columns structure and frame structure, as a below pressing type(upwards), the heating plate opens by the self-weight of the hot plate, platform and plunger.
2) The plate size, piston stroke and total pressure can be adjusted according to customers’ actual requirement, the machine can equip with manual-pull mold and automatic hydraulic-pull mold, which reduces labors’ working strength and inconvenience.
3) This machine has three kinds of control method: manually, semi-auto. and full auto.
4) Fast speed mould-closing, high production efficiency, low locking speed to protect mould.
5) Made of nodular cast iron, the oil cylinder of machine is improved in compressive strength and wear resistance.
|
