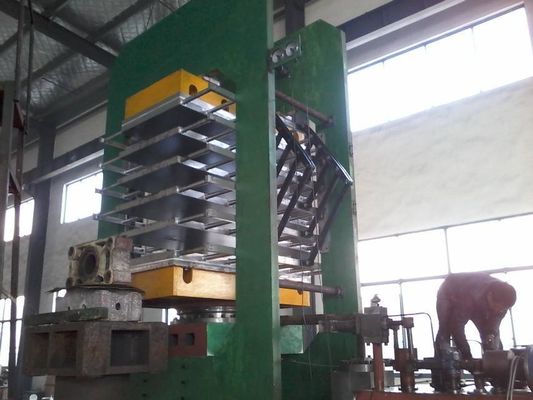

Automatic PLC Control Rubber Vulcanizing Press Machine with 800T Clamping Force and Chilled Cast Iron Plunger

Detail Information

Place of Origin:

Qingdao

Certification:

ISO/CE

Control Method:

PLC Control

Plunger Material:

Chilled Cast Iron

Unit Area Pressure:

80kg/cm²

Voltage:

Customer Request

Clamping Force:

800T

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Video Technical Support

Packaging Details:

Wooden box/20GP/40GP

Highlight:

Rubber Vulcanizing Press Machine, Automatic PLC Control EVA Poaming Rubber Vulcanizing Press Machine

Product Description

Automatic Rubber Vulcanizing Press Machine EVA Foaming Rubber Moulding Press

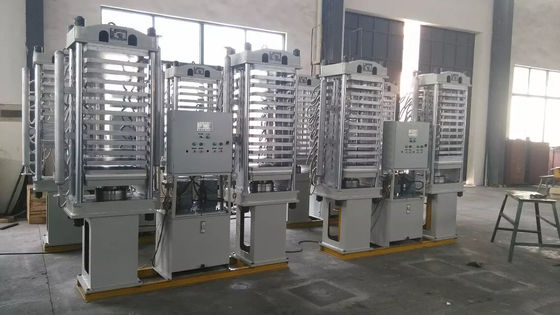

Automatic PLC Control EVA Foaming Rubber Vulcanizing Press Machine

Applications

We provide various types and pressures of rubber vulcanizing press machines suitable for manufacturing:

Technical Specifications

Model	Total Pressure (MN)	Daylight (mm)	Working Layer No.	Piston Stroke (mm)	Main Motor Power (KW)	Overall Dimensions (L x W x H) (mm)
XLB-3503502	0.25	125	2	250	2.2	12005801200
XLB-4004002	0.50	125	2	250	2.2	14005001400
XLB-6006002	1.00	125	2	250	2.2	18808201680
XLB-7508504	1.60	125	4	500	3	17309302460
XLB-9009002	2.5	200	2	400	4	23459601385
XLB-120012001	3.15	300	1	300	4	280013002300
XLB-130020001	5.60	400	1	400	8	200018602500
XLB-150015001	8.00	800	1	800	16.5	220022004300
XLB-150025001	15.00	400	1	400	11	300025003300
XLB-200020001	20.00	400	1	400	11	360030003300

Key Features

Dual power individual circuit design for stable operation, low noise, reduced failure rate, and 20-30% energy savings
Front mold compatibility with various 2-layer or multi-layer molds for versatile functionality
Adjustable lift and clamping mold speeds for precision and reliability
Precise in-out mold positioning with 100% security to prevent mold damage
Fast and slow correction mode selection for accurate and secure mold alignment

Advanced Configuration

Advanced PLC control system for programmable operation with automatic functions including lifting, mold open/close, air exhausting, pressure filling, vulcanizing timing, and alarms
Hydraulic system spare parts imported from Taiwan for reliability
Machine body casting made of FCD 50 ductile cast iron with high tensile strength after aging passivation
Pillars/columns constructed from medium carbon steel with hardness up to HRC55-58
Three-stage winding cartridge heater with nichrome wire, non-rust construction
Japanese Sakagami brand oil seals for wear resistance, durability, and oil tightness
Schneider or Mitsubishi main electrical elements for stable machine performance
Optional mold push-pull device for improved efficiency and labor savings
Precision temperature control system for hot platens to ensure high-quality final products
