| Brand Name: | Beishun |
| Model Number: | XLB-1000X1000X6/800T |
| MOQ: | 1set |
| Price: | USD 10000-90000 Set |
| Payment Terms: | TT，L/C |

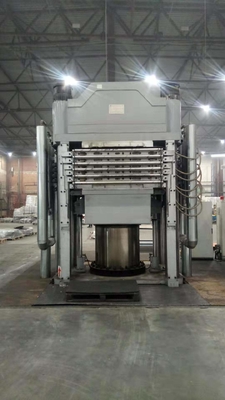

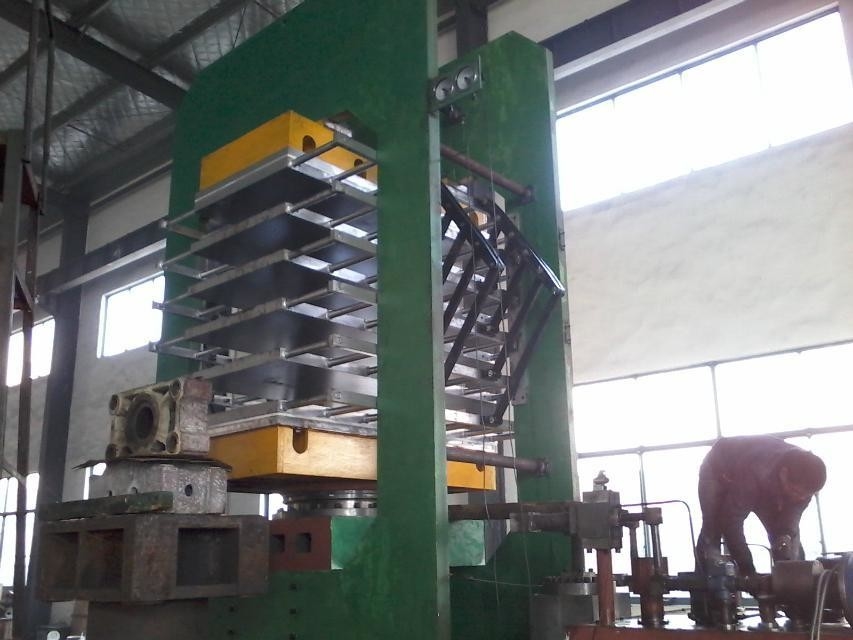

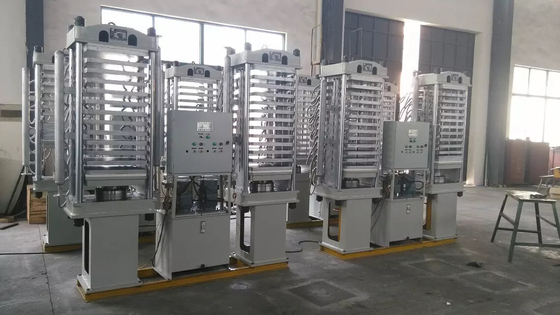

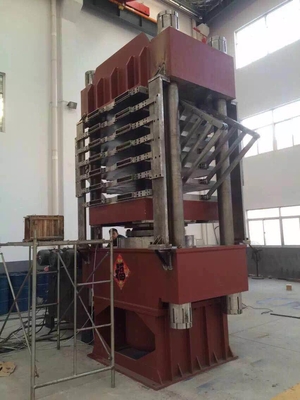

Automatic PLC Control EVA Poaming Rubber Vulcanizing Press Machine
Applications
We provide various types and pressures of rubber vulcanizing press machine. Rubber Vulcanizing Press Machine applied to industrial rubber seals, rubber mat, O-ring, escalator handrail, oil seal, auto parts, rubber crash pad, rubber air spring, key board, medical rubber parts, rubber bottle stopper, silicone wrist band, water-stop tape, rubber cable, blankets, electronics insulators etc..
Technical parameters
|
Model
|
Total Pressure (MN) | Daylight (mm) | Working Layer No. | Piston Stroke (mm) | Main Motor Power (KW) | Overall Diameter (L x W x H) (mm) |
| XLB-350×350×2 | 0.25 | 125 | 2 | 250 | 2.2 | 1200×580×1200 |
| XLB-400×400×2 | 0.50 | 125 | 2 | 250 | 2.2 | 1400×500×1400 |
| XLB-600×600×2 | 1.00 | 125 | 2 | 250 | 2.2 | 1880×820×1680 |
| XLB-750×850×4 | 1.60 | 125 | 4 | 500 | 3 | 1730×930×2460 |
| XLB-900×900×2 | 2.5 | 200 | 2 | 400 | 4 | 2345×960×1385 |
| XLB-1200×1200×1 | 3.15 | 300 | 1 | 300 | 4 | 2800×1300×2300 |
| XLB-1300×2000×1 | 5.60 | 400 | 1 | 400 | 8 | 2000×1860×2500 |
| XLB-1500×1500×1 | 8.00 | 800 | 1 | 800 | 16.5 | 2200×2200×4300 |
| XLB-1500×2500×1 | 15.00 | 400 | 1 | 400 | 11 | 3000×2500×3300 |
| XLB-2000×2000×1 | 20.00 | 400 | 1 | 400 | 11 | 3600×3000×3300 |
Rubber vulcanizing press machine main feature:
1. Adopt dual power individual circuit design, stable, quiet, low failure rate, saving 20-30%
2. Front mold is suitable for variety 2-layers or multi-layers molds, it is a kind of new multi-function machine
3. Lift and clamping mold speed can be adjustable, accuracy and reliability
4. Out-In mold positioning accuracy, positioning 100% security, to ensure that mold does not damage
5. Has a fast, slow correction mode selection function, so that the mold can be correction more accurate, more secure
Configuration of rubber vulcanizing press machine
1. The Rubber vulcanizing press machine adopts the advanced PLC control. The working program can be set in the cabinet and machine will work according to this program. PLC control system can accurately realize auto lifting, auto mould open/close, auto air exhausting, auto pressure filling, also with the vulcanizing timing function, vulcanizing alarms function, automatic control & manual control switch function.
2.Spare parts for hydraulic system are imported from Taiwan
3.Machine body casting is made of FCD 50 ductile cast iron ,which is processed by high tensile strength after aging passivation
4.The machine pillars/ columns are made of medium carbon steel , and its hardness can reach HRC55-58
5.The cartridge heater adopts three stages winding, nichrome wire , non-rusty
6.Oil seal are from Japanese and Sakagmi Brand , it is wear-resisitant ,durable and oil tight
7.Main electrical elements are from Schneider or Mitsubishi ,which can stabilize machine performance
8. Mould push-pull device can be configured to improve the efficience and save labor.
9. Hot platens' temperature is controlled by temperature control system to guarantee the high precision and good quality of final products.
|
