Hydraulic Ram Style Rubber Kneader Machine 75 Litre Rubber Mixing Banbury Machine
Product Summary
75 Litre Hydraulic Ram Style Rubber Dispersion Kneader Mixer Machine Applications We are instrumental in offering a high quality range of Dispersion Kneaders to the esteemed clients in various ranges & specifications. We offer complete series of kneaders from lab to 420 Litres production model in ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
X(S)N-75 x30
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description

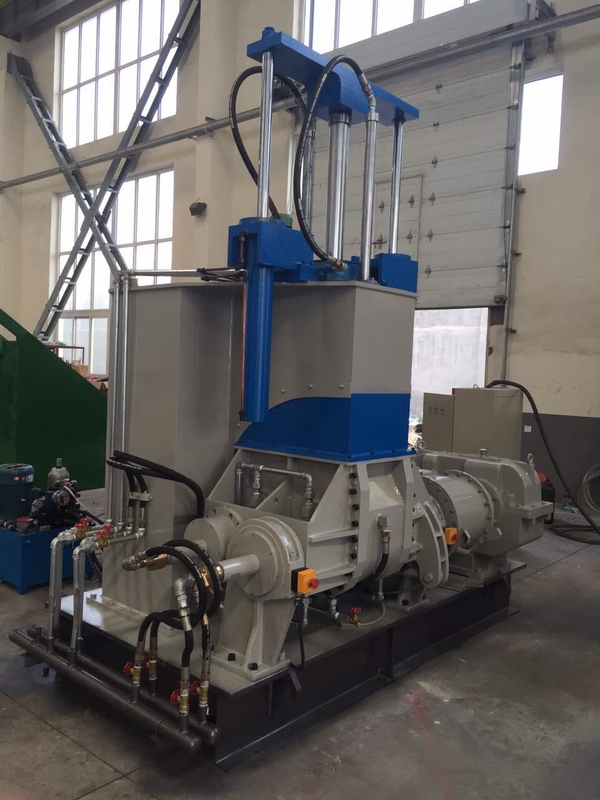

75 Litre Hydraulic Ram Style Rubber Dispersion Kneader Mixer Machine
Applications
We are instrumental in offering a high quality range of Dispersion Kneaders to the esteemed clients in various ranges & specifications. We offer complete series of kneaders from lab to 420 Litres production model in Rear change and front discharge type with hard faced rotors and chambers for longer life.These products are widely used for rubber processing and plastic industries, thus, are highly demanded by the clients. Equipped with automatic time and temperature control system, Dispersion Kneaders are known for providing cent percent mixing effect. The peculiar jacket construction of these Dispersion Kneaders generates cooling effect and low temperature mixing of the rubber compounds. Our Rubber Kneader machines are used in wide range of industries. These Rubber kneaders machines are versatile and can operate at high temperatures. With simple operation and easy cleaning, it gives its best even when the operator's skill and experience are limited. A dispersion kneader superior by design, engineering and construction represents an advanced class of kneaders.
Machine specification of Rubber Dispersion Kneader Machine
| Model | X(S)N-35x 30 | X(S)N-55x 30 | X(S)N-75 x30 | X(S)N-110 x30 | X(S)M-150 x30 | |
| Total Volume of Mixing Chamber | L | 75 | 125 | 180 | 250 | 325 |
| Working Volume of Mixing Chamber |
L
|
35 | 55 | 75 | 110 | 150 |
| Driving Motor Power | KW | 55 | 75 | 110 | 185 | 220 |
| Tilting Motor Power | KW | 1.1 | 1.1 | 2.2 | 4 | 5.5 |
| Tilting Angle | 140 | 140 | 140 | 140 | 140 | |
| Rotating Speed of (Front /Rear) Rotor | r/min | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 |
| Pressure of Compressed Air | MPa | 0.5~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
| Consumption of Compressed Air |
m3/min
|
≥0.9 | ≥1.0 | ≥1.0 | ≥1.5 | ≥2.0 |
| Pressure of Cooling Water | MPa | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 |
| Pressure of Heating Steam | MPa | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 |
| Overall Dimension | mm | 3800x2100x3000 | 4400x2200x3100 | 4500x2500x3200 | 4800x3000x3700 | 5000x3300x3900 |
| Weight | Kg | 6500 | 7800 | 10500 | 14500 | 19500 |
Description of products
1. Rubber dispersion kneader is used for mixing or compounding rubber and plastics. The mixer consists of two rotating spiral-shaped rotors encased in segments of cylindrical housings. The rotors may be cored for circulation of heating or cooling.
2. Mixing chamber: constructed from premium alloy steel for welding-→annealing- -finish machining- +surface hard chrome plating-→polishing treated using 400 grit abrasive cloth. Chrome layer thickness is 0.10mm with hardness of HV900~1000.
3. Front and rear rotor: rotor is made of cast steel with manganese and other alloy materials-→the head of rotor is welded with wear-resistant hard alloy with a thickness of 3~5mm- +processing and polishing treatment- +full body is treated by hard chrome plating with a thickness of 0. 10mm.
4.Internal mixing seal system: labyrinth seal system to prevent leakage of powder and feed materials.
Product Details
Highlight:
Hydraulic Ram Style Rubber Kneader Machine
,Rubber Kneader Machine 75 Litre
,75 Litre Rubber Mixing Banbury Machine
Mixing Capacity(L):
75 Litre
Tilting Angle(°):
140
Control Method:
PLC Control
Warranty:
2 Years
Application:
Rubber And Plastic Mixing
Applicable Industries:
Manufacturing Plant
