Quality 50Ton Double Rubber Press Machine with PLC Control for Rubber Vulcanizing factory

50Ton Double Rubber Press Machine with PLC Control for Rubber Vulcanizing

Name: 50Ton Double Rubber Press Machine with PLC Control for Rubber Vulcanizing
Brand: Qingdao Beishun Environmental Protection Technology Co.,Ltd
SKU: XLB-650X650X2/250T
Price: 1000000 USD
Availability: InStock

Product Summary

PLC Control Double Vulcanizing Press Machine For Rubber Products We provide a comprehensive range of rubber vulcanizing hot press machines, with capacities ranging from 15 to 10,000 tons, primarily manufactured as made-to-order products. Our services include turnkey solutions and technical support ...

Basic Properties

Place of Origin: Qingdao

Brand Name: Beishun

Certification: ISO/CE

Model Number: XLB-650X650X2/250T

Trading Properties

Minimum Order Quantity: 1set

Price: Negotiable

Payment Terms: T/T,L/C

Supply Ability: 30sets

Tags:

vulcanizing press machine

rubber press machine

rubber molding machine

Product Description

PLC Control Double Vulcanizing Press Machine For Rubber Products

We provide a comprehensive range of rubber vulcanizing hot press machines, with capacities ranging from 15 to 10,000 tons, primarily manufactured as made-to-order products. Our services include turnkey solutions and technical support for complete machinery installation and production line planning.

Rubber vulcanizing press machine in industrial setting

Machine Specifications

Model	Total Pressure (MN)	Daylight (mm)	Working Layer No.	Piston Stroke (mm)	Main Motor Power (KW)	Overall Dimensions (L x W x H) (mm)
XLB-350×350×2	0.25	125	2	250	2.2	1200×580×1200
XLB-400×400×2	0.50	125	2	250	2.2	1400×500×1400
XLB-600×600×2	1.00	125	2	250	2.2	1880×820×1680
XLB-750×850×4	1.60	125	4	500	3	1730×930×2460
XLB-900×900×2	2.5	200	2	400	4	2345×960×1385
XLB-1200×1200×1	3.15	300	1	300	4	2800×1300×2300
XLB-1300×2000×1	5.60	400	1	400	8	2000×1860×2500
XLB-1500×1500×1	8.00	800	1	800	16.5	2200×2200×4300
XLB-1500×2500×1	15.00	400	1	400	11	3000×2500×3300
XLB-2000×2000×1	20.00	400	1	400	11	3600×3000×3300

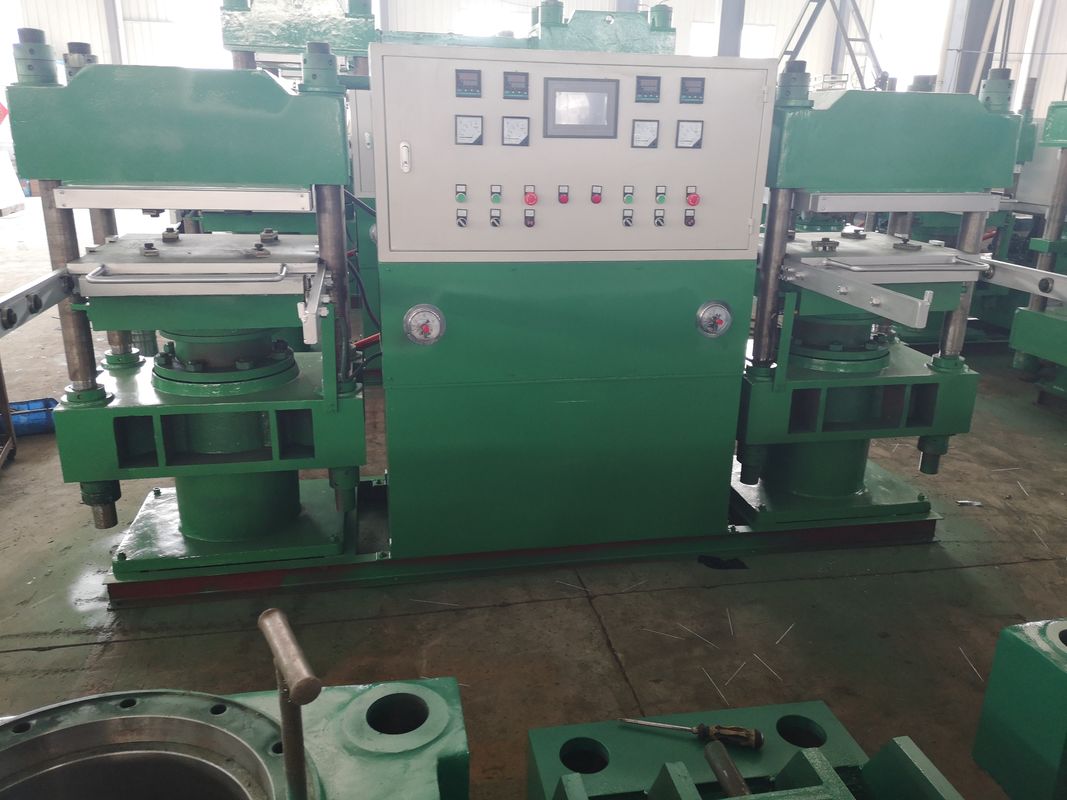

XLB-600X600X1/250T Automatic PLC Control Double Rubber Vulcanizing Press Machine

Applications

This rubber vulcanizing press machine is designed for various vulcanizing molds, rubber and plastic mold products, and non-mold products. It is ideal for manufacturing:

O-rings and sealing parts
Oil seals and automotive parts
Rubber crash pads and air springs
Keyboard components
Medical rubber parts and bottle stoppers
Silicone wrist bands and water-stop tape
Bridge supports and bearings
Rubber cables and electronic insulators

The machine features a four-column bottom-top structure with the main engine consisting of an upper beam, lower machine base, movable platform, automatic push-pull device, oil cylinder group, and column. The plunger structure is installed in the lower base.

Close-up view of XLB-600X600X1/250T Automatic PLC Control Double Rubber Vulcanizing Press Machine components

Key Features

Bottom-to-top plunger movement for mold closing, press molding, automatic mold closing, ejection, and heat/pressure preservation with exhaust functions
Hydraulic power source for single machine drive with automatic pressure compensation and oil pump shutdown delay
Programmable deflation time, deflation cycles, heating temperature, and vulcanization time
Double-machine single-pump station structure with hydraulic and electrical overload protection
German-imported hydraulic cylinder technology for reliable sealing and extended service life
Central electrical box with dual-sided operation buttons for curing time control, electric heating temperature control, and hydraulic compensation
Automatic ejection device for efficient product removal
Full computer PLC with touch programming capabilities for custom operations, allowing one operator to manage two machines

Detailed view of XLB-600X600X1/250T Automatic PLC Control Double Rubber Vulcanizing Press Machine operation

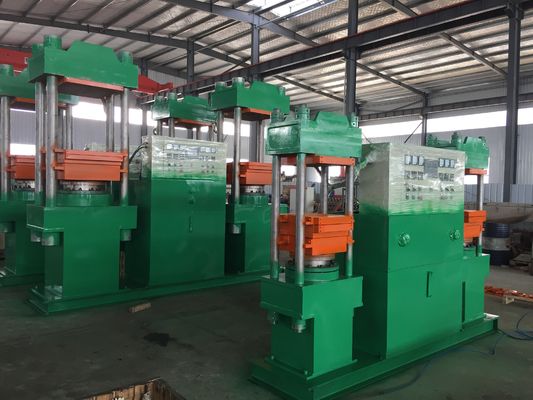

Industrial application of rubber vulcanizing press machine
