PLC Control 15T Pressure Rubber Vulcanizing Press Machine with Customized Voltage for Rubber Plate Vulcanizing
Product Summary
PLC Control Rubber Vulcanizing Press Machine 15T Professional Rubber Plate Vulcanizing Press for Rubber Sheet Pad We provide a comprehensive range of rubber vulcanizing hot press machines, from 15 to 10,000 tons, primarily as made-to-order products. Our turnkey solutions include complete machinery ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XLB-1500X1500X2/1200T
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description

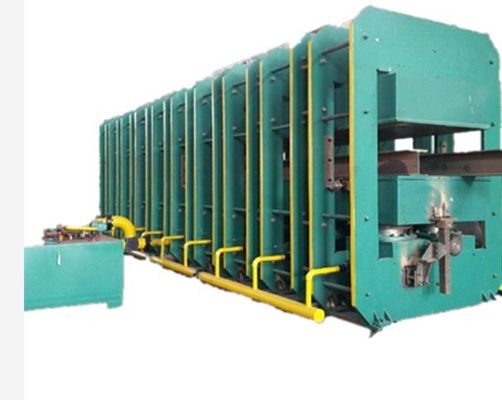

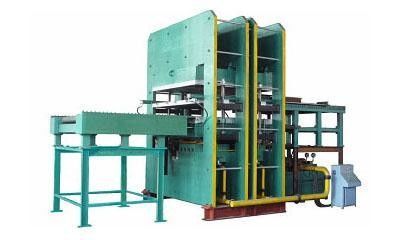

PLC Control Rubber Vulcanizing Press Machine 15T
Professional Rubber Plate Vulcanizing Press for Rubber Sheet Pad
We provide a comprehensive range of rubber vulcanizing hot press machines, from 15 to 10,000 tons, primarily as made-to-order products. Our turnkey solutions include complete machinery installation and production line planning with full technical support.
The Rubber Plate Vulcanizing Press serves as the primary molding equipment for various rubber products, including both molded and non-molded items. This versatile machine is also suitable for processing thermosetting plastics, bubble materials, resins, Bakelite, sheet metal, building materials, and other molding applications, featuring simple structure, high pressure capacity, wide applicability, and high operational efficiency.
Machine Specifications
| Model | Total Pressure (MN) | Daylight (mm) | Working Layer No. | Piston Stroke (mm) | Main Motor Power (KW) | Overall Dimensions (L x W x H) (mm) |
|---|---|---|---|---|---|---|
| XLB-350*350*2 | 0.25 | 125 | 2 | 250 | 2.2 | 1200*580*1200 |
| XLB-400*400*2 | 0.50 | 125 | 2 | 250 | 2.2 | 1400*500*1400 |
| XLB-600*600*2 | 1.00 | 125 | 2 | 250 | 2.2 | 1880*820*1680 |
| XLB-750*850*4 | 1.60 | 125 | 4 | 500 | 3 | 1730*930*2460 |
| XLB-900*900*2 | 2.5 | 200 | 2 | 400 | 4 | 2345*960*1385 |
| XLB-1200*1200*1 | 3.15 | 300 | 1 | 300 | 4 | 2800*1300*2300 |
| XLB-1300*2000*1 | 5.60 | 400 | 1 | 400 | 8 | 2000*1860*2500 |
| XLB-1500*1500*1 | 8.00 | 800 | 1 | 800 | 16.5 | 2200*2200*4300 |
| XLB-1500*2500*1 | 15.00 | 400 | 1 | 400 | 11 | 3000*2500*3300 |
| XLB-2000*2000*1 | 20.00 | 400 | 1 | 400 | 11 | 3600*3000*3300 |
Technical Advantages
- Technical plane pressure correction with leveling nut device achieves plane accuracy up to 0.05mm
- Unique oil circuit design ensures quiet operation with high efficiency and reduced energy consumption
- Circulating cooling system provides excellent heat exchange, maintaining low oil temperature and extending hydraulic component lifespan for stable forming performance
- Intelligent PID output control maintains temperature accuracy within ±1°C, optimizing power efficiency
- PLC screen programmable vulcanizing time with automatic alarm and mold opening upon completion
- High-quality #45 steel pillars with enhanced hardness, wear resistance, and abrasive resistance through quenching and tempering
- Top beam and bottom plate constructed from premium Q-235A ductile iron, processed with artificial vibration or high-temperature aging to eliminate internal stress and prevent deformation
- Plunger made of LG-P cold hard alloy steel with surface hardness HRC 60-70 and chilled layer depth of 8-15mm for extended service life
Product Details
Highlight:
PLC Control Rubber Vulcanizing Press Machine
,Rubber Vulcanizing Press Machine 15T
,15T Rubber Plate Vulcanizing Press
Type:
PLC Control
Customized:
Customized
Voltage:
Customer Request
Heating Way:
Electrical / Oil System
Application:
Vulcanizing To Be Final Product,Vulcanizing Rubber Products
After-Sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support
