| Brand Name: | Beishun |
| Model Number: | XLB-1500X1500X2/1200T |
| MOQ: | 1set |
| Price: | USD 5000-100000 Set |
| Payment Terms: | TT，L/C |

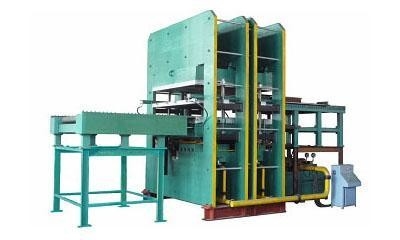

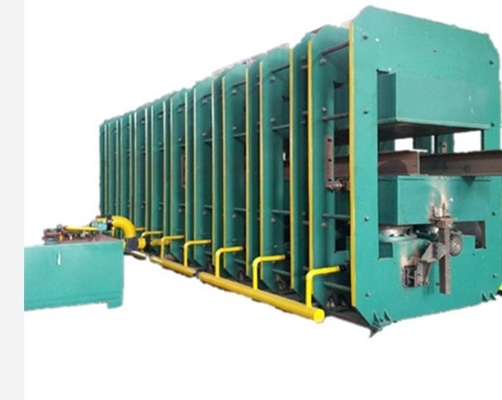

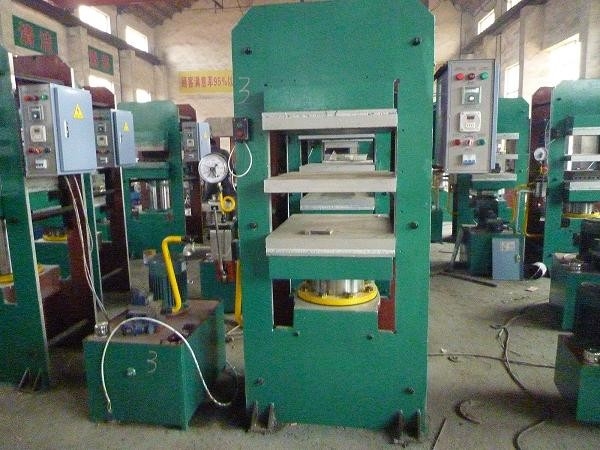

PLC Control Rubber Plate Vulcanizing Press For Rubber Sheet Pad
Applications
We provide a wide range of rubber vulcanizing hot press, ranging from 15 to 10,000 tons mostly made-to-order products. We provide turnkey solution and technical service, for complete machinery installation and production line planning. The Rubber Plate Vulcanizing Press for rubber is the main molding equipments for various of rubber molding products and non-molding products, The Rubber Plate Vulcanizing Press is also suitable for molding to thermosetting plastic, bubble, resins, Bakelite, sheet metal, building materials and other molding products, with simple structure, high pressure, wide applicability, and high efficiency.
Machine specification of Rubber Vulcanizing Press Machine
|
Model
|
Total Pressure (MN) | Daylight (mm) | Working Layer No. | Piston Stroke (mm) | Main Motor Power (KW) | Overall Diameter (L x W x H) (mm) |
| XLB-350×350×2 | 0.25 | 125 | 2 | 250 | 2.2 | 1200×580×1200 |
| XLB-400×400×2 | 0.50 | 125 | 2 | 250 | 2.2 | 1400×500×1400 |
| XLB-600×600×2 | 1.00 | 125 | 2 | 250 | 2.2 | 1880×820×1680 |
| XLB-750×850×4 | 1.60 | 125 | 4 | 500 | 3 | 1730×930×2460 |
| XLB-900×900×2 | 2.5 | 200 | 2 | 400 | 4 | 2345×960×1385 |
| XLB-1200×1200×1 | 3.15 | 300 | 1 | 300 | 4 | 2800×1300×2300 |
| XLB-1300×2000×1 | 5.60 | 400 | 1 | 400 | 8 | 2000×1860×2500 |
| XLB-1500×1500×1 | 8.00 | 800 | 1 | 800 | 16.5 | 2200×2200×4300 |
| XLB-1500×2500×1 | 15.00 | 400 | 1 | 400 | 11 | 3000×2500×3300 |
| XLB-2000×2000×1 | 20.00 | 400 | 1 | 400 | 11 | 3600×3000×3300 |
Rubber Plate Vulcanizing Press Advantage
1. The use of technical plane pressure correction, leveling nut device, the plane accuracy of up to 0.05mm.
2. Unique oil circuit design, the oil circuit in the running no noise. High efficiency, reduced energy consumption.
3. The use of circulating cooling cooling device to ensure good heat exchange, low oil temperature, hydraulic parts long life, forming stability.
4. Intelligent PID output control, so that set the temperature and the actual temperature difference between plus or minus 1 degree Celsius, the economy more power.
5.Vulcanizing time can be set in the PLC screen . If you want to heat and vulcanize for 1 minutes , just set it directly . When it reaches 1minutes ,machine will alarm then machine will open the mold automatically
6.Pillar is made of high quality # 45 steel, The hardness , wear resistance and abrasive resistance is high improved by quenching and tempering
7.The top beam and bottom plate form is welded with the good quality Q-235A ductile iron .After welding , it is also processed by the artificial vibration or high temperature aging treatment , to eliminate the internal stress and avoid the deformation
8.plunger is made of LG-P cold hard alloy steel . Surface of it owns high hardness and wear resistant.Depth of chilled layer is 8-15mm , hardness is HRC 60-70 , making the plunger own long life time
|
