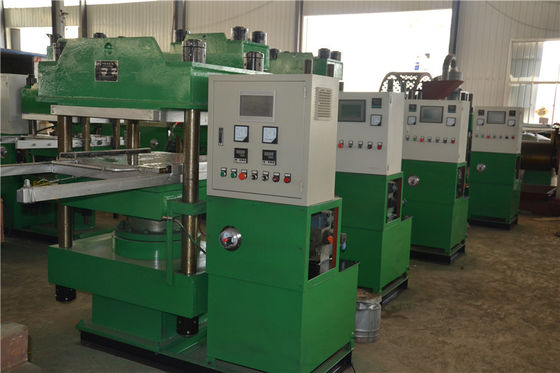

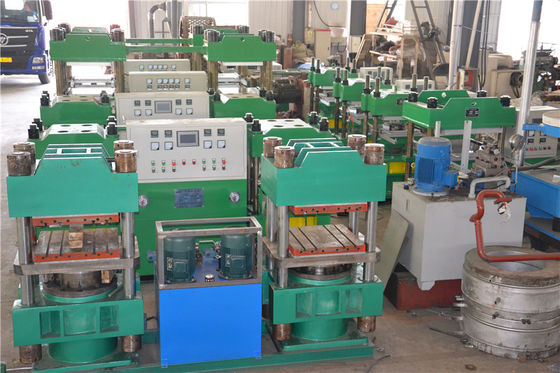

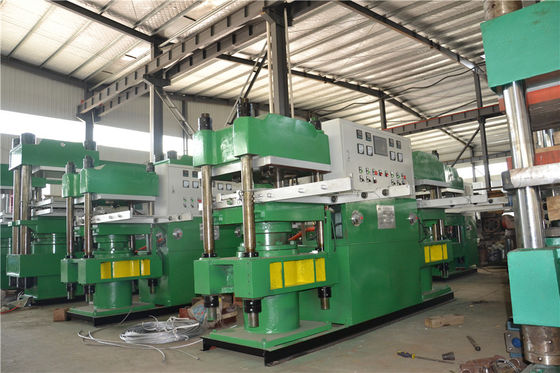

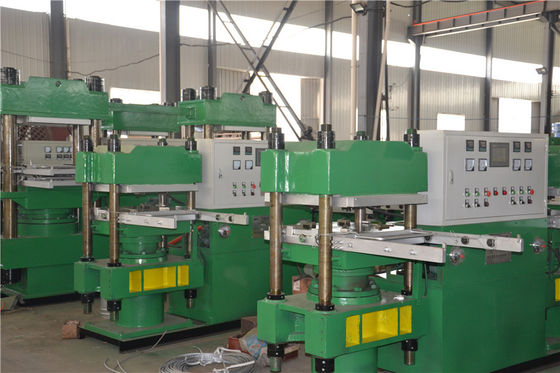

Full Automatic PLC Control 100T Rubber Vulcanizing Press Machine for Rubber Products

Full Automatic PLC Control 100T Rubber Vulcanizing Press Machine for Rubber Products

Brand Name:	Beishun
Model Number:	XLB-650X650X2/300T
MOQ:	1set
Price:	Negotiable
Payment Terms:	T/T,L/C
Supply Ability:	30sets

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao

Certification:

ISO/CE

Heating Way:

Electrical / Oil System

Control Method:

PLC Control

Customized:

Customized

Voltage:

Customer Request

Application:

Vulcanizing To Be Final Product,Vulcanizing Rubber Products

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Video Technical Support

Packaging Details:

Wooden box/20GP/40GP

Highlight:

Plate Vulcanizing Machine 10000T

Full Automatic Plate Vulcanizing Machine Beishun

10000T Rubber Hydraulic Vulcanizing Machine

Product Description

Full Automatic Plate Vulcanizing Machine 100T Rubber Hydraulic Vulcanizing Machine

Rubber Vulcanizing Press Machine With Full Automatic Control System

We provide a comprehensive range of rubber vulcanizing hot press machines, ranging from 15 to 10,000 tons, primarily as made-to-order products. Our turnkey solutions include complete technical service, machinery installation, and production line planning. The Rubber Plate Vulcanizing Press serves as the primary molding equipment for various rubber products and is also suitable for thermosetting plastics, resins, Bakelite, sheet metal, building materials, and other molding applications.

Machine Operation Sequence

Initial state
Place material into the mold and reposition ejector cylinder
Load the mold
Close mold quickly
Clamp mold slowly while increasing pressure
Exhaust process
Vulcanization begins
Vulcanization completes
Open mold quickly
Push out the mold
Ejector cylinder separates mold and product
Remove finished product

Technical Specifications

Model	Total Pressure (MN)	Daylight (mm)	Working Layer No.	Piston Stroke (mm)	Main Motor Power (KW)	Overall Dimensions (L x W x H) (mm)
XLB-3503502	0.25	125	2	250	2.2	12005801200
XLB-4004002	0.50	125	2	250	2.2	14005001400
XLB-6006002	1.00	125	2	250	2.2	18808201680
XLB-7508504	1.60	125	4	500	3	17309302460
XLB-9009002	2.5	200	2	400	4	23459601385
XLB-120012001	3.15	300	1	300	4	280013002300
XLB-130020001	5.60	400	1	400	8	200018602500
XLB-150015001	8.00	800	1	800	16.5	220022004300
XLB-150025001	15.00	400	1	400	11	300025003300
XLB-200020001	20.00	400	1	400	11	360030003300

Key Features

Cylinder (piston) utilizes optimized seal structure with high-quality polyurethane seals that are oil-resistant and aging-resistant, featuring easy-to-change double seal protection
Full automatic control system including automatic mold closing, exhaust cycles, temperature regulation, vulcanization timing, alarm systems, and mold opening
Digital display for precise vulcanizing temperature setting and monitoring
PLC-controlled vulcanizing time settings with automatic alarm and mold opening upon completion
High-quality #45 steel pillars with enhanced hardness, wear resistance, and durability through quenching and tempering processes
Top beam and bottom plate constructed from premium Q-235A ductile iron, stress-relieved through vibration or high-temperature aging treatments to prevent deformation
Plunger manufactured from LG-P cold hard alloy steel with surface hardness of HRC 60-70 and chilled layer depth of 8-15mm for extended service life
