| Brand Name: | Beishun |
| Model Number: | XLB-700X700X2/250T |
| MOQ: | 1set |
| Price: | USD 5000-100000 Set |
| Payment Terms: | TT，L/C |

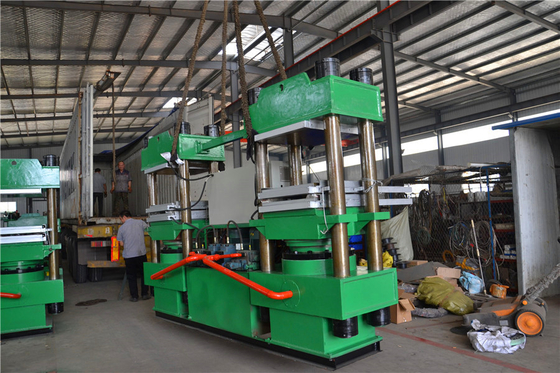

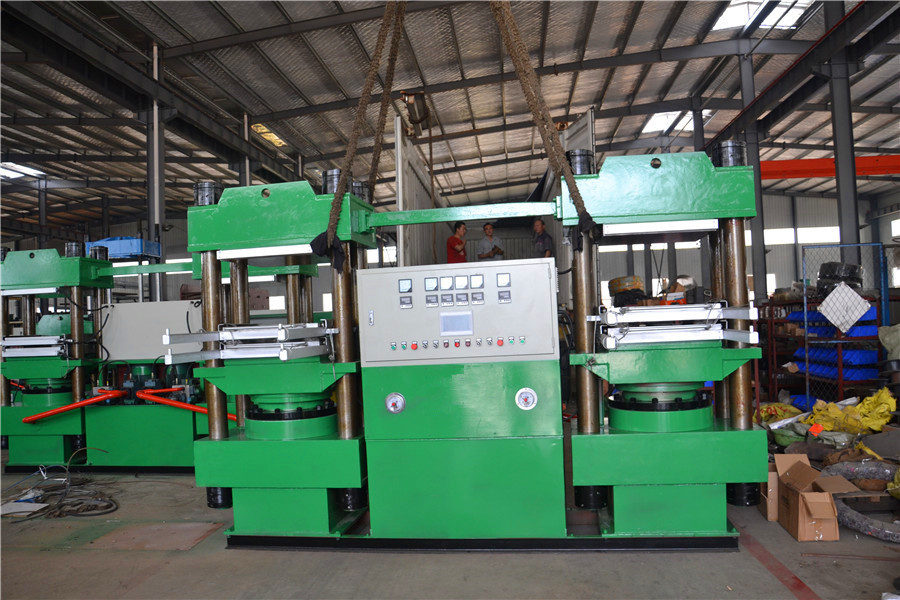

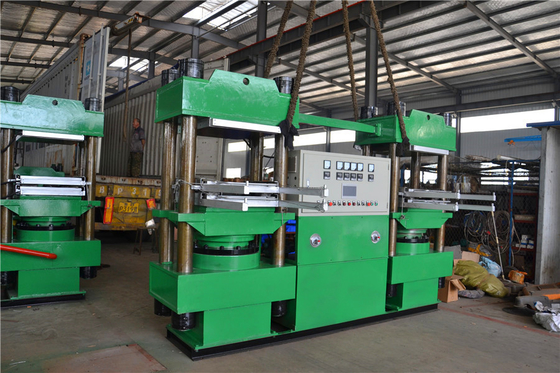

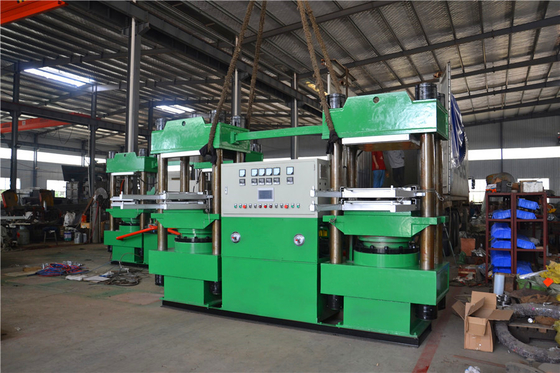

Automatic PLC Column Type Hydraulic Rubber Platen Vulcanizing Press
Rubber Vulcanizing Press Machine main feature:
1.Frame plate
The material is made of Q235A steel plate with overall numerical control cutting, and the surface is sandblasted.
2.Oil cylinder
The material of the oil cylinder is high quality QT500-7, ductile iron QT-500 is passivated after aging, or forging material is used, tensile strength ≥50kgf/mm
The plunger is made of LG-P chilled alloy material, which has high surface hardness and is not easy to wear. The depth of the chilled layer is 8-15mm and the hardness is HRC 70 degrees, which improves the overall service life of the plunger.
3.Extractor sliding table
The sliding surface is made of S50# steel, and has been heat-treated to a hardness of HRC 55-58. It has a long wear-resistant life and is equipped with a bearing design to make the entry and exit molds slide stably.
4.Hydraulic system
The main hydraulic components adopt well-known brands such as Taiwan Qiyang, Beijing Huade, Japan Yuken, etc., easy to buy and replace, reasonable layout, and easy to maintain and repair.
5.Electrical system
The main PLC electrical components of this machine adopt Siemens or Mitsubishi's internationally well-known brands. The electrical device has the advantages of small size, compact structure, fatigue resistance, and is suitable for continuous high-strength work.
6.Heat insulation board
The heat insulation board adopts high-quality calcium silicate board, with a pressure resistance of 3.5Mpa or more, and a heat insulation coefficient of 0.031
Applications
We provide a wide range of rubber vulcanizing hot press, ranging from 15 to 10,000 tons mostly made-to-order products. We provide turnkey solution and technical service, for complete machinery installation and production line planning. The Rubber Plate Vulcanizing Press for rubber is the main molding equipments for various of rubber molding products and non-molding products, The Rubber Plate Vulcanizing Press is also suitable for molding to thermosetting plastic, bubble, resins, Bakelite, sheet metal, building materials and other molding products, with simple structure, high pressure, wide applicability, and high efficiency.
Machine specification of Rubber Vulcanizing Press Machine
|
Model
|
Total Pressure (MN) | Daylight (mm) | Working Layer No. | Piston Stroke (mm) | Main Motor Power (KW) | Overall Diameter (L x W x H) (mm) |
| XLB-350×350×2 | 0.25 | 125 | 2 | 250 | 2.2 | 1200×580×1200 |
| XLB-400×400×2 | 0.50 | 125 | 2 | 250 | 2.2 | 1400×500×1400 |
| XLB-600×600×2 | 1.00 | 125 | 2 | 250 | 2.2 | 1880×820×1680 |
| XLB-750×850×4 | 1.60 | 125 | 4 | 500 | 3 | 1730×930×2460 |
| XLB-900×900×2 | 2.5 | 200 | 2 | 400 | 4 | 2345×960×1385 |
| XLB-1200×1200×1 | 3.15 | 300 | 1 | 300 | 4 | 2800×1300×2300 |
| XLB-1300×2000×1 | 5.60 | 400 | 1 | 400 | 8 | 2000×1860×2500 |
| XLB-1500×1500×1 | 8.00 | 800 | 1 | 800 | 16.5 | 2200×2200×4300 |
| XLB-1500×2500×1 | 15.00 | 400 | 1 | 400 | 11 | 3000×2500×3300 |
| XLB-2000×2000×1 | 20.00 | 400 | 1 | 400 | 11 | 3600×3000×3300 |
|
