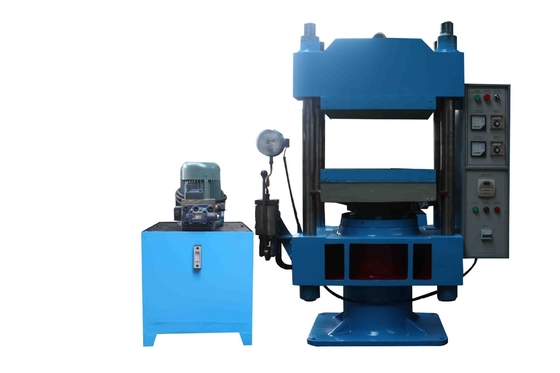

rubber plate Vulcanizing Press Machine for laboratory Use/OEM/ODM

Product Description:

The Automatic Rubber Vulcanizing Press Machine is designed with a steel frame and a cylinder stroke of 200mm, and it is capable of providing a maximum pressure of 0-25MPa. The electric heating mode is powered by 380V voltage, making it suitable for various rubber vulcanization projects. This machine is extremely efficient in vulcanizing conveyor belt with its automatic process. It is a professional machinery for rubber vulcanizing, ensuring reliable performance and precise operations.

Features:

• Product Name: Rubber Vulcanizing Press Machine
• Material: Steel
• Temperature Range: 0-300℃
• Control System: PLC
• Name: Rubber Vulcanizing Press Machine
• Voltage: 380V
• Automatic Vulcanizing Press
• Rubber Vulcanizing Press

• Model	XLB-600×600	XLB-650×650
  Total pressure (Ton)	250	300
  Plate Size (mm)	600×600×65	600×600×70
  Daylight (mm)	300	300-500
  Piston Stroke (mm)	300	350
  Hydraulic System Pressure (MPa)	19.9	19.0
  Piston Diameter (mm)	400	450
  Motor Power (KW)	5.5×2	7.5×2

Technical Parameters:

Applications:

The Rubber Vulcanizing Press Machine with brand name Beishun and model number XLB-350×350×2 is an ideal choice for rubber mat vulcanizing. It is certified by CE and ISO, and the minimum order quantity is 1pcs. The vulcanizing time is from 0-999s and the cylinder stroke is 200mm. It is equipped with PLC control system and temperature range from 0-300℃. The delivery time is 45 days and the payment terms are T/T, L/C. The price is from 5000USD to 100000USD and it can supply 30 sets per year. This vulcanizing press machine is suitable for various rubber vulcanizing application and it is designed to achieve perfect vulcanizing results.

Customization:

Our customized Rubber Vulcanizing Press Machine is produced by Beishun with model number XLB-350×350×2. It is CE and ISO certified with a minimum order quantity of 1pcs. The price range is between 5000USD-100000USD and delivery time is 45days. We accept T/T, L/C payment terms. Our supply ability is 30set/years. The cylinder stroke is 200mm and vulcanizing time is 0-999s. It is a type of vulcanizing press with a CE certificate.
