High Quality 4 Layers Rubber Tire Tread Vulcanizing Press with 500ton Pressure and PLC Control for Truck Tire Retreading
Product Summary
High Quality 4 Layers Rubber Tire Tread Vulcanizing Press Professional truck tire tread precuring machine designed for efficient retreading and prevulcanization processes in tire production. Product Overview This advanced vulcanizing press is essential equipment for truck tire production, featuring ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XLB-350×350×2
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description

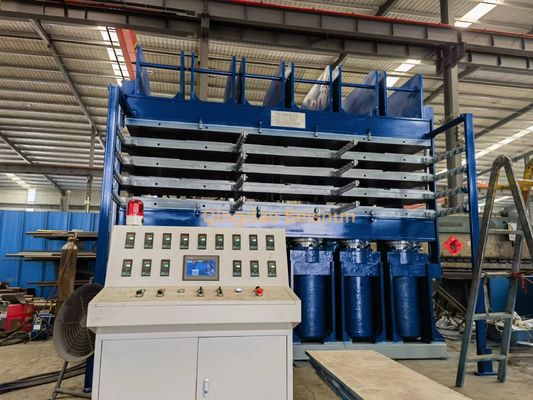

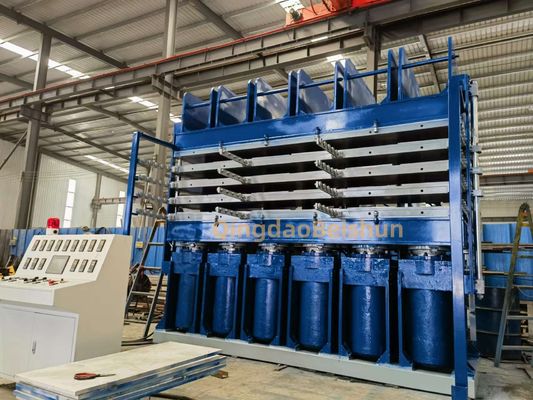

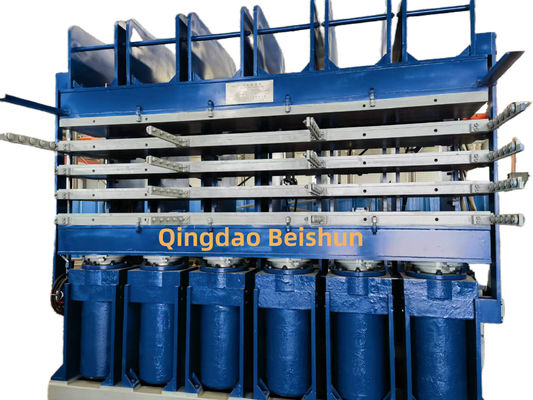

High Quality 4 Layers Rubber Tire Tread Vulcanizing Press
Professional truck tire tread precuring machine designed for efficient retreading and prevulcanization processes in tire production.
Product Overview
This advanced vulcanizing press is essential equipment for truck tire production, featuring precise temperature and pressure control for optimal tread quality.
Core Components
- Curing Chamber: Specially designed internal space adapted to truck tire tread shape for precise precuring
- Heating System: Electric or thermal oil heating with accurate temperature control (100-180°C range)
- Pressurization System: Hydraulic or pneumatic devices applying uniform pressure (10-20kg/cm²)
- Mold System: Precision-designed molds ensuring accurate tread pattern and size consistency
Working Principle
Semi-finished truck tire tread is placed in the vulcanization chamber mold. Under controlled temperature and pressure conditions, rubber molecules chemically react with vulcanizers to form cross-linked structures, enhancing wear resistance, cut resistance, and elasticity.
Key Advantages
- Superior quality with reduced early wear and delamination
- Enhanced production efficiency through standardized vulcanization processes
- Energy efficient operation with reduced harmful emissions
- Uniform and stable internal tread structure
Technical Specifications
| Model | XLB-3000x1000x5 | XLB-5500x360x5 | XLB-5500x360x5 | XLB-1100x420x5 |
|---|---|---|---|---|
| Total Pressure (MN) | 12 | 10 | 8 | 20 |
| Daylight (mm) | 140 | 75 | 75 | 75 |
| Working Layer No. | 2 | 2 | 2 | 2 |
| Piston Stroke (mm) | 500 | 375 | 375 | 375 |
| Piston Diameter (mm) | φ360 | φ250 | φ250 | φ250 |
| Hydraulic Cylinder No. | 8 | 10 | 8 | 20 |
| Working Hydraulic Pressure (Mpa) | 14.7 | 20.4 | 20.4 | 20.4 |
| Motor Power (KW) | 29.5 | 21.5 | 7.5 | 40 |
| Dimension (mm) | 3720×3460×4120 | 7600×2700×3100 | 7600×2700×3100 | 15500×3400×4200 |
| Structure Type | Jaw | Side-plate | Side-plate | Side-plate |
Advanced Features
- Dual-action cylinders for fast mold open/close operation
- Mass flow pre-fill valve for optimal performance
- Automatic mold forward/backward movement
- Automatic and manual switching control with power failure safety
- Multiple layer number and table options available
- Premium hydraulic components and electrical equipment
- Automatic pressure compensation and exhaust systems
- Complete automated working cycle from mold pull-in to product pushing
Jaw Vulcanizer Features
Specialized equipment for rubber vulcanization with unique jaw-like frame structure for flexible operation.
Structural Characteristics
- Frame Structure: Jaw-shaped design with fixed and movable jaw plates connected via connecting rods and elbow plates
- Heating System: Electric or steam heating with evenly distributed heat transfer
- Pressure System: Hydraulic or mechanical pressure application (10-30MPa range)
Application Scope
Ideal for vulcanizing various rubber products including seals, small tires, rubber pipes, and irregular-shaped components. Perfect for small batch production and specialized applications.
Operational Benefits
- High flexibility for diverse product shapes and sizes
- User-friendly operation with simple opening/closing actions
- Cost-effective maintenance with straightforward component replacement
Customization Options
Beishun offers custom Rubber Vulcanizing Press Machines including models BSL-350x350x2 and BSL-500×. Manufactured in Qingdao with CE and ISO certifications.
Specifications: Temperature range 0-300℃, Vulcanizing time 0-999s
Pricing: $5,000 - $100,000 USD
Delivery: 45 days
Payment: T/T, L/C accepted
Technical Support & Services
Our dedicated technical support team provides 24/7 assistance with comprehensive on-site services including installation, maintenance, repair, and troubleshooting. Access our online resources including user manuals, instructional videos, and FAQs for optimal machine performance.
Packaging & Shipping
All components are securely packaged with soft protective materials in reinforced cardboard boxes. Multiple layers of secure packaging ensure safe transportation via preferred shipping providers with clear product labeling.
Frequently Asked Questions
What is the brand of the Rubber Vulcanizing Press Machine?
The brand is Beishun.
What is the model of the Rubber Vulcanizing Press Machine?
The model is XLBP-3600*400.
Where is the Rubber Vulcanizing Press Machine manufactured?
Manufactured in Qingdao.
What certifications does the Rubber Vulcanizing Press Machine have?
CE and ISO certifications.
How much does the Rubber Vulcanizing Press Machine cost?
Price range: $5,000 - $100,000 USD.
Product Details
Highlight:
truck tire retreading Tread vulcanizing machine
,Rubber Tread Vulcanizing Machine
Voltage:
380V/415V/220V
Certificate:
CE
Temperature Range:
0-300℃
Cylinder Stroke:
800mm
Material:
Steel
Heating Mode:
Electric /Oil/SteamHeating
Vulcanizing Time:
0-999s
Pressure Range:
0-25MPa
W Work Platform:
1，2，3，4，5 Layers
Pressure:
500ton Custom-Made
PLC:
Siemens Or Mitsubishi
