EPDM Butyl Rubber Sealing Strip Production Line Produce Different Sizes

Brand Name:	Beishun
Model Number:	XJ-90/MF
MOQ:	1set
Packaging Details:	Wooden /Container
Payment Terms:	TT，L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao City

Certification:

ISO，CE

Motor Power:

Energy Type:

Electricity

Machine Type:

Extruder

L/D Ratio:

Screw Design:

Single-screw

Capacity:

400kg/h

Advantage:

Long Service Life

Motor Speed:

1000r/min

Guarantee Period:

12 Months

Heating Method:

Electric/Steam/Oil

Temperature Range:

0-300℃

Cooling System:

Mold Temperature Controller

Supply Ability:

200 sets per month

Highlight:

Different Sizes Sealing Strip Production Line

Butyl rubber Sealing Strip Production Line

EPDM Sealing Strip Production Line

Product Description

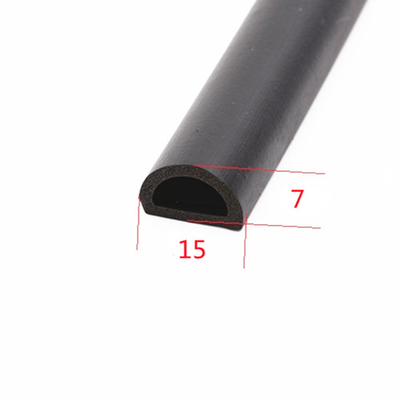

EPDM And Butyl Rubber Sealing Strip Production Line That Can Produce Different Sizes

Production process introduction

The EPDM rubber sealing strip production line is a device and process flow for manufacturing EPDM (ethylene propylene rubber) rubber sealing strips. EPDM rubber sealing strips are widely used in the fields of construction, automobiles, electronics, machinery, etc. for sealing, waterproofing, sound insulation and other purposes.

The following are some of the main process links that the EPDM rubber sealing strip production line may include:

1.Raw material preparation: The production of EPDM rubber sealing strips usually uses EPDM rubber particles or mixed rubber as raw materials. In the production line, it is necessary to prepare and mix the appropriate amount of EPDM rubber, fillers, plasticizers and other auxiliary materials.

2.Rubber mixing: The production of EPDM rubber sealing strips usually includes a rubber mixing process. This process adds EPDM rubber and other materials to a mixer, and through heating, stirring and processing, it becomes a uniform rubber compound.

3.Extrusion molding: The EPDM rubber sealing strip production line usually uses an extruder to extrude the rubber compound into a continuous strip with the desired cross-sectional shape. The extruder heats the rubber compound and squeezes it through a die or extruder head to form the shape of a sealing strip.

4.Cooling and cutting: The extruded EPDM rubber sealing strip is quickly cooled by a cooling device to solidify and stabilize it. Then, the continuous sealing strip can be cut into the required length using a cutting device as needed.

5.Inspection and quality control: Inspection and quality control of the sealing strip are usually carried out on the production line. This may include appearance inspection, dimensional measurement, physical property testing, etc. to ensure that the produced sealing strip meets the specifications and quality requirements.

6.Packaging and storage: The finished EPDM rubber sealing strip is usually packaged for transportation and storage. Common packaging methods include roll packaging, cut-section packaging, etc. to ensure the protection and management of the sealing strip during transportation and storage.

It should be noted that the specific process and equipment configuration of the EPDM rubber sealing strip production line may vary depending on the manufacturer and production requirements. In actual applications, the appropriate production line and process flow can be selected according to production needs and scale.

EPDM rubber sealing strip production line usually includes the following main equipment:

1. Mixer: used to mix and process EPDM rubber particles and other additives to prepare rubber compound.

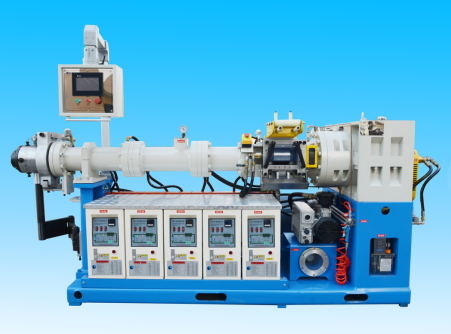

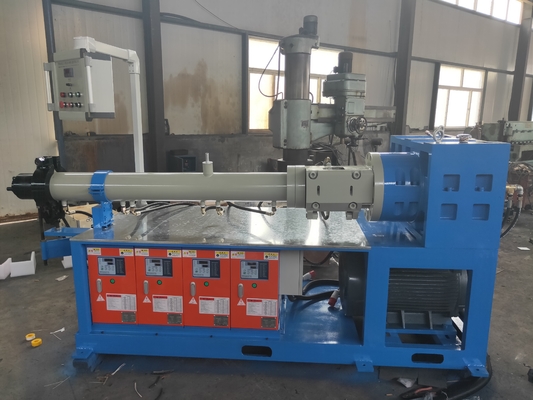

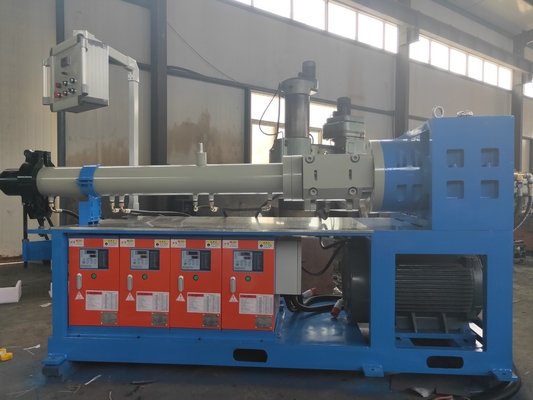

2. Extruder: The rubber compound is fed into the extruder and extruded into the desired sealing strip shape by heating and extrusion.

3. Die or extruder head: used to shape the extruded rubber compound into a continuous sealing strip with the desired cross-sectional shape.

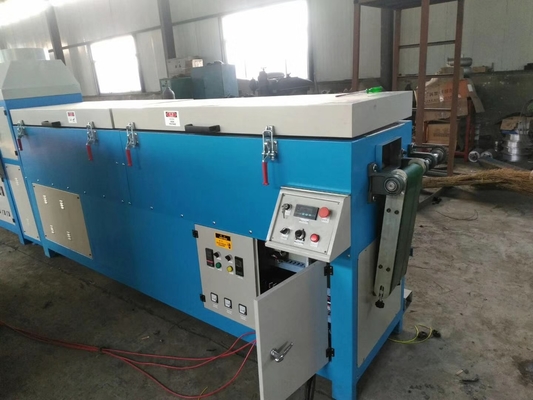

4. Cooling device: used to quickly cool the extruded rubber sealing strip to make it solidified and stable. The cooling device can adopt cold water immersion, air cooling or other cooling methods.

5. Cutting equipment: used to cut the continuous rubber sealing strip into the required length. The cutting equipment can be an automated cutting machine or a manually operated cutting tool.

6. Inspection equipment: used to perform visual inspection, dimensional measurement and physical property testing on the produced rubber sealing strip to ensure that its quality meets the requirements. This may include tensile testing machines, hardness testers, dimensional measurement tools, etc.

7. Packaging equipment: used to package the finished EPDM rubber sealing strip for transportation and storage. Common packaging methods include roll wrapping machines, cartoning machines, etc.

In addition, the EPDM rubber sealing strip production line may also require some auxiliary equipment and tools, such as batching equipment for rubber compounding, storage containers for rubber particles, conveying equipment, electrical control systems, etc.

It is necessary to select appropriate equipment according to specific production requirements and scale. We usually provide customized rubber sealing strip production line solutions based on our expertise and experience. If you have any questions, please contact us
