Product Description:

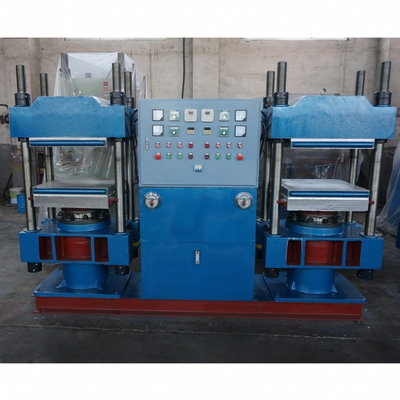

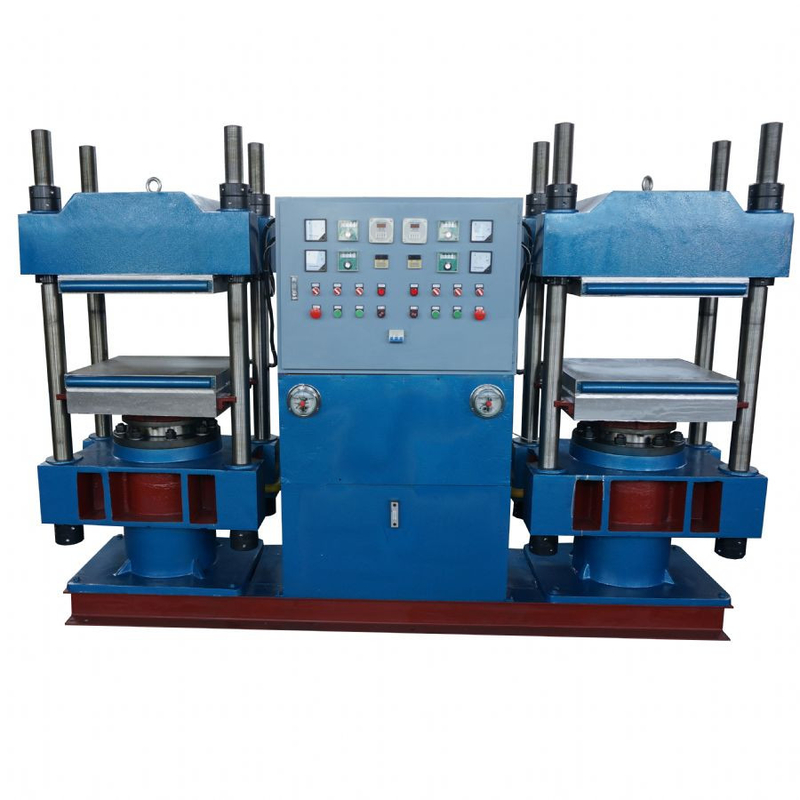

Qingdao Beishun manufacturing the double-station vulcanizer is a kind of equipment used for the production of rubber products. It has two working stations and can perform vulcanization operations at the same time to improve production efficiency. The following is a related introduction:

- Structural design: usually includes fixed platform, power cabinet, fixed base, fixed column, heating platform, oil cylinder and other parts. The heating platform is used to place the vulcanization mold and provide the heat required for vulcanization, and the oil cylinder is responsible for providing the power for mold closing and opening. The hydraulic system controls the lifting and lowering of the heating platform to realize the opening and closing of the mold.
- Working principle: The rubber raw material is placed in the vulcanization mold. The high temperature provided by the heating platform and the pressure applied by the oil cylinder cause the rubber to undergo a vulcanization reaction in the mold, transforming from a linear macromolecule to a three-dimensional network structure, thereby obtaining a rubber product with certain elasticity and wear resistance.
- Advantages: The production efficiency is greatly improved, two workpieces can be processed at the same time, and the production cycle is reduced; compared with the single-station vulcanizer, the energy consumption increases less and the unit energy consumption cost is reduced; the two stations can be controlled independently, and products of the same or different specifications can be produced at the same time, improving equipment utilization and production flexibility.
- Application fields: Widely used in the manufacture of automotive parts, such as tires, sealing rings, shock-absorbing pads, etc.; electronic equipment fields, such as keyboard keys, mobile phone cases and other silicone products; medical supplies fields, such as the production of medical gloves, bottle stoppers and other rubber products.

Features:

1. The purpose of this technology is to solve the shortcomings of the prior art and propose a double-station flat vulcanizer.

2. In order to achieve the above purpose, this technology adopts the following technical solutions:

3. A double-station flat vulcanizer, including a fixed

4. A heating platform is provided on the top of the fixed column, and the top of the heating platform is connected to the oil cylinder through a hydraulic reset spring. A limit column is provided on the top of the oil cylinder, and a limit plate is provided on the side of the power cabinet corresponding to the limit column.

5. In addition, the preferred structure is that a visible window is provided on the surface of the power cabinet, and a master controller is provided on both sides directly below the visible window, and the oil cylinder and the power cabinet are connected to the master controller through electrical signals.

6. In addition, the preferred structure is that the heating platform is U-shaped, and the vertical part on the heating platform is reset and connected to the oil cylinder through a hydraulic reset spring.

7. In addition, the preferred structure is that when a cooling fan is provided on the top of the power cabinet, the heat is dissipated and the fan direction of the cooling fan blows outward.

8. In addition, the preferred structure is that after the limit column on the top of the oil cylinder passes through the limit plate, a limit block is sleeved on the limit column.

9. In addition, the preferred structure is that a height limit plate is provided on the limit column directly above the limit block, and the height limit plate is symmetrically arranged.

10. In addition, the preferred structure is that when the oil cylinder is hydraulically controlled to the heating platform, the hydraulic reset spring is in a fully squeezed state.

11. The beneficial effects of this technology are: first, the rubber products in the vulcanization mold on the heating

platform are completely separated by the oil cylinder, and when the oil cylinder is reset by the hydraulic reset spring, the limit column on the top of the oil cylinder reaches the limit plate on the side of the power cabinet, and the limit block is used to limit the oil cylinder well, so that the accuracy of the subsequent double-station flat vulcanizer is increased.

Technical Parameters:

This product can also be referred to as a Rubber Molding Vulcanizing Press, Rubber Plate Vulcanizing Machine, or Rubber Tire Vulcanizing Press.

Applications:

The Rubber Heat Press Machine is widely used in the production of various rubber products such as rubber sheets, rubber mats, rubber tiles, and rubber seals. This product is ideal for industries such as automotive, construction, and mining. The Rubber Tire Vulcanizing Press is used to produce high-quality tires used in the automotive industry. This product is designed to produce tires that are durable and have excellent traction on different terrains.

The Rubber Hydraulic Vulcanizing Press is designed to apply heat and pressure to the rubber to create a strong bond. The Vulcanizing Time of this machine can be adjusted from 0-999s, depending on the product requirements. The Heating Mode of this machine is Electric Heating, which ensures uniform heating of the rubber.

The Beishun XLB-1500×1500×2 Rubber Vulcanizing Press Machine is CE and ISO certified, ensuring that the product meets international standards. The minimum order quantity for this product is 1pcs, and the price ranges from 5000USD-100000USD. The Delivery Time for this product is 45 days, and the Payment Terms are T/T and L/C. The Supply Ability of this product is 30set/years.

Packing and Shipping:

Product Packaging:

• The Rubber Vulcanizing Press Machine will be securely packed in a wooden crate to prevent damage during transportation.
• All necessary accessories, manuals, and documents will be included in the package.

Shipping:

• The Rubber Vulcanizing Press Machine will be shipped via a reliable and trusted courier service.
• The estimated delivery time will be provided to the customer upon purchase.
• Tracking information will be provided to the customer to enable them to track their shipment.
