| Brand Name: | BeiShun |
| Model Number: | XLB-120081200/1.6MN |
| MOQ: | 1 set |
| Price: | 9000-15000USD |
| Packaging Details: | Wooden box /Container |
| Payment Terms: | L/C, T/T |

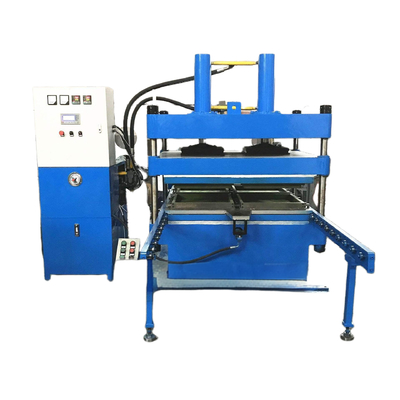

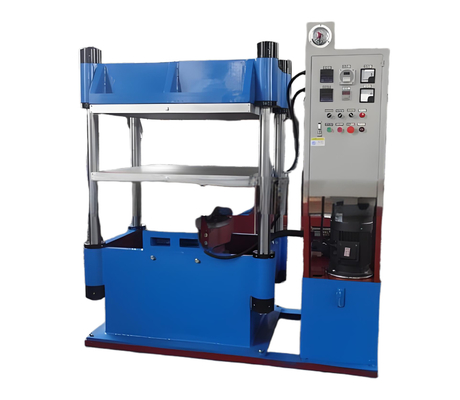

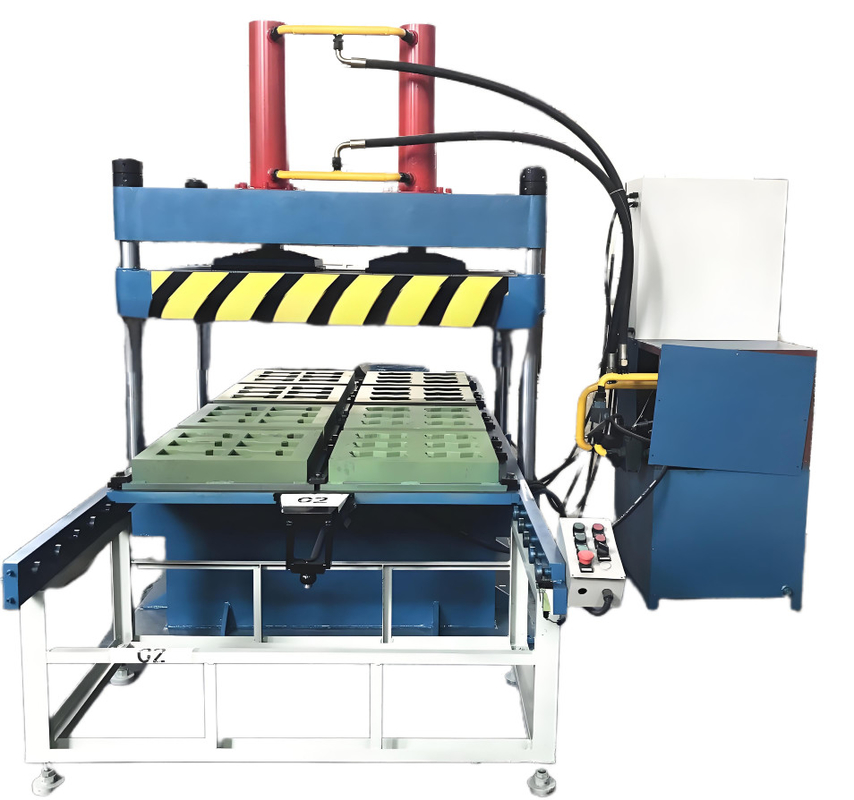

1200×1200 Work Table Rubber Vulcanizing Machine For Rubber Floor Tile Manufacturing
For a hot plate size of 1200×1200 mm in a rubber floor tile vulcanizing press, the following considerations are important:
Press Capacity: Ensure the press has sufficient tonnage to apply uniform pressure across the entire 1200×1200 mm area. The required tonnage depends on the material and thickness of the rubber tiles.
Heating System: The hot plate should have an efficient heating system (electric, steam, or oil) to maintain consistent temperature across the entire surface. Temperature control is critical for proper vulcanization.
Platen Flatness: The hot plate must be perfectly flat to ensure even pressure and heat distribution. Any warping can lead to uneven vulcanization.
Insulation: Proper insulation around the hot plate is necessary to minimize heat loss and improve energy efficiency.
Mold Size: The mold used for the rubber floor tiles should fit comfortably within the 1200×1200 mm hot plate area, allowing for proper clamping and pressure application.
Automation: Depending on production needs, consider automated systems for loading, unloading, and controlling the vulcanization process.
Safety Features: Include safety mechanisms such as pressure relief valves, temperature sensors, and emergency stop buttons.
If you need specific recommendations for equipment or further details, feel free to ask!
Technical parameter
| Type | XLB-DQ1200× 1200× 2 | XLB-DQ1300× 2000× 1 | XLB-Q1200× 2500× 1 | XLB-Q1500× 2000× 1 | XLB-Q2000× 3000× 1 | XLB-Q1400× 5700× 1 |
| Total Pressure(MN) | 315t | 560t | 750t | 1000t | 1800t | 2800t |
| Plate Size(mm) | 1200× 1200 | 1300× 2000 | 1200× 2500 | 1500× 2500 | 2000× 3000 | 1400× 5700 |
| Daylight (mm) | 200 | 400 | 400 | 400 | 400 | 400 |
| Layer NO. | 2 | 1 | 1 | 1 | 1 | 1 |
| Piston Stroke(mm) | 400 | 400 | 400 | 400 | 400 | 400 |
| Plate Unit Area Pressure | 22 | 21.5 | 25 | 33.5 | 30 | 35 |
| Main Motor Power(kw) | 3 | 8 | 9.5 | 11 | 26 | 43.5 |
| Overall Dimension(L× W× H) (mm) | 1685× 1320× 2450 | 2000× 1860× 2500 | 2560× 1700× 2780 | 2810× 1550× 3325 | 2900× 3200× 2860 | 2400× 5800× 3600 |
| Weight(kg) | 9500 | 17000 | 20000 | 24000 | 66000 | 110000 |
|
