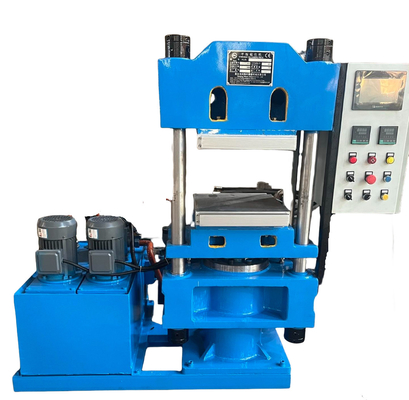

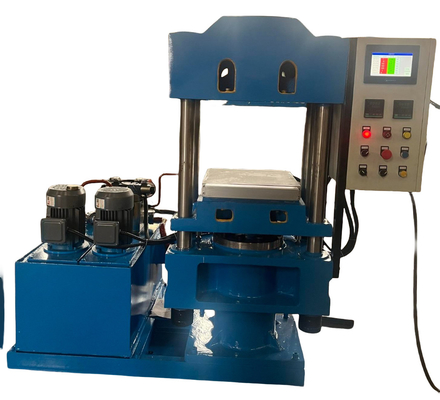

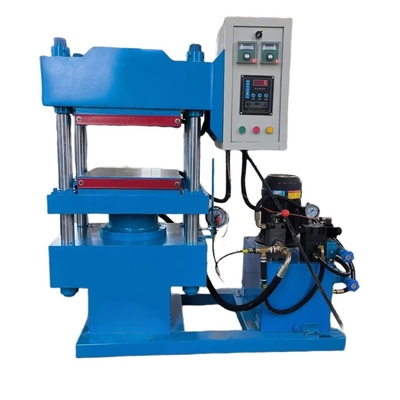

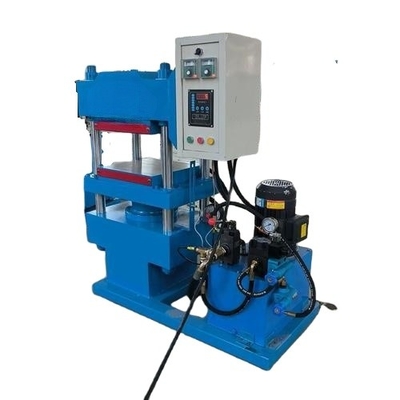

PLC Touch Screen Flat Vulcanizing Machine 80 Tons Clamping Force For NBR FKM Silicone Seals
Product Summary
1. Main uses Plate vulcanizing machine is a new type of hydraulic plate vulcanizing machine, compared with the old type of pressure forming machine, can improve the quality of pressing parts, and can greatly improve labor productivity. This machine is suitable for vulcanization of various rubber ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XLB-500*500
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description
1. Main uses
Plate vulcanizing machine is a new type of hydraulic plate vulcanizing machine, compared with the old type of pressure forming machine, can improve the quality of pressing parts, and can greatly improve labor productivity. This machine is suitable for vulcanization of various rubber products. It is the necessary equipment for molding and processing of plastic, rubber foam, bakelite products, and various thermosetting materials. Meet the standard: HG/T 3034-1999 machine automatic rise, automatic pressure, automatic constant temperature, vulcanization timing, automatic exhaust, alarm and other functions, is a relatively high automation automation instrument
Parameter Table
|
No.
|
Parameter
|
QLB-25
|
Remarks
|
|
1
|
Nominal clamping force
|
0.25MN
|
25t
|
|
2
|
Specification of flat plate (hot plate)
|
350x350mm
|
Material: Q235 high-quality carbon structural steel
|
|
3
|
Thickness of hot plate
|
50mm
|
Q235
|
|
4
|
Surface roughness of hot plate
|
Ra≤3.2
|
-
|
|
5
|
Spacing between hot plates
|
125mm
|
-
|
|
6
|
Pressure per unit area of hot plate
|
Approximately 20kg/cm²
|
-
|
|
7
|
Number of working layers of hot plates
|
1
|
-
|
|
8
|
Number of working layers for water cooling
|
1
|
-
|
|
9
|
Number of oil cylinders
|
1
|
-
|
|
10
|
Plunger stroke
|
250mm
|
1
|
|
11
|
Heating method
|
Electric heating
|
-
|
|
12
|
Cooling method
|
Water cooling
|
-
|
|
13
|
Structural form
|
Column type
|
-
|
|
14
|
Motor power
|
2.2KW
|
-
|
|
15
|
Maximum working temperature
|
220
|
-
|
|
16
|
Automatic process
|
Rising, pressurizing and clamping, exhausting, curing timing, descending and opening.
|
-
|
|
17
|
Number of columns
|
4
|
-
|
|
18
|
Material of columns
|
45#
|
-
|
|
19
|
Machine type
|
Four-column single-cylinder downward-pressing type. The main cylinder is at the bottom and presses from bottom to top.
|
-
|
|
20
|
Power source
|
Clamping and rising rely on the hydraulics of the main cylinder. Opening and descending rely on the self-weight of the main cylinder.
|
-
|
|
21
|
Power supply
|
AC380±10%, 50Hz, total power approximately 6kW
|
-
|
|
22
|
Temperature, relative humidity
|
5~40℃, ≤60%
|
-
|
|
23
|
Startup environment
|
Stable foundation, no adverse vibration, good ventilation, lighting, and power connection
|
-
|
Three, the main performance characteristics
1, the model is a combination of mechanical, electrical and hydraulic technology, with automatic performance.
2, the main machine adopts column type and frame plate two kinds of structure, the main body is bright, clean, good rigidity, the hydraulic cylinder on the beam, the moving platform, the use of ductile iron, the main machine performance is stable and durable.
3, the hydraulic part adopts two ways, one is single pump drive, simple structure, convenient, reliable performance, generally used in small tonnage equipment, one is double pump combination, fast speed, high pressure, generally used in large tonnage equipment.
4, electrical parts of reliable quality, more accurate temperature control. The heating connection part is connected with high temperature resistant wire, which has good reliability.
5. The electric heating system uses tubular resistance heaters, which are installed in the hot plate to heat the heating plate (customers without boilers). Power saving, no gumming, hot plate temperature uniform, good insulation performance, is the ideal heating method.
6, the machine material selection is good, the processing range is wide, the indicators can meet the standard requirements of HG/T3034-1999, has a good price performance ratio.
Product Details
Highlight:
PLC Touch Screen Vulcanizing Machine
,NBR FKM Silicone Seals Vulcanizing Machine
,80 Tons Clamping Force Vulcanizing Machine
Electric Parts:
Schneider
Auto:
Automatic
Other Name:
Twin Curing Press
Power Supply:
Customization
Pressure:
120T
Max. Temperature:
300℃
Control Mode:
PLC
Plate Gap:
500mm
Safety Device:
Safety Curtain
Plate Daylight:
300mm
Layer No:
4
Max Pressure:
200 Tons
Control:
Automatic
Pressure Range:
0-20MPa
Working Layers:
Customized
