PLC Controlled Tire Tread Vulcanizing Machine with 10.0MN Tension Force and Improved Hydraulic System for Retreading
Product Summary
Precast Tire Tread Vulcanizing Machine, Used Tire Retreading Tread Manufacturing Machine The jaw structure is suitable for making waterstops and can also be configured as a multi-layer tread pre-vulcanizing forming machine for retread tire tread pre-vulcanization forming. Enhanced Hydraulic System ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO9001/CE
Model Number:
XLB-3000×800/10.0MN
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T
Supply Ability:
10sets/45day
Product Description
Precast Tire Tread Vulcanizing Machine, Used Tire Retreading Tread Manufacturing Machine
The jaw structure is suitable for making waterstops and can also be configured as a multi-layer tread pre-vulcanizing forming machine for retread tire tread pre-vulcanization forming.
Enhanced Hydraulic System
The newly improved hydraulic system integrates the control system, eliminating complex control pipelines and preventing pipeline leaks.
- Pressure-holding structure with only one leakage point, eliminating multiple leakage points common in similar industry products
- Greatly improved system pressure-holding performance
- Simplified maintenance - pressure-holding maintenance completed by replacing a single set of valve cores
- Improved main cylinder sealing structure with enhanced anti-leakage function
- Sealing ring is no longer a vulnerable part
- One-year warranty provided
Equipment Construction
The equipment adopts a four-column double-unit structure. The main cylinder is manufactured from QT500-7 material, and the plunger is made of chilled alloy cast iron material. The maximum pressure resistance reaches 20Mpa, providing high strength and excellent wear resistance. The hydraulic system is controlled by motors.
Technical Parameters
| Parameter | XLE-D/3000 ×800 | XLE-D/Q7000 ×300 |
|---|---|---|
| Closing Force (MN) | 10.0 | 1.00 |
| Heat Plate (mm) | 1250×2050 | 7000×300 |
| Hot Plate Spacing (mm) | 450 | 300 |
| Hydraulic Cylinder Diameter | 650 | 125 |
| Maximum Working Fluid Pressure (Mpa) | 15 | 15 |
| Compressed Air Pressure (MPa) | 0.6-0.8 | 0.6-0.8 |
| Maximum Steam Pressure (MPa) | 1.0 | 1.0 |
| Motor Power (kW) | 15 | 5.5 |
| External Dimensions (mm) | 1300×800×1500 | 7500×800×2200 |
| Weight (kg) | 45000 | 76000 |
Product Images

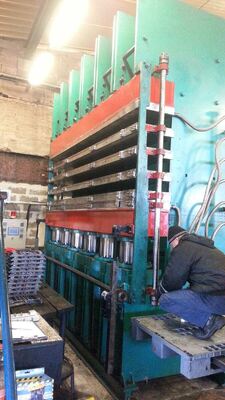

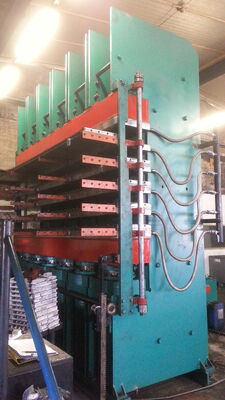

Double-layer Vulcanizing Machine
Product Details
Basement:
Welding
Operating Voltage:
380V 50HZ 3Phase Or Customized
Color:
Customization
Plunger Diameter:
300mm
Plunger:
Chilled Cast Iron
Application:
Rubber Molding And Curing
Safetyfeatures:
Overload Protection, Emergency Stop
Piston Diameter:
200mm
Machinetype:
Hydraulic/Mechanical Vulcanizing Press
Control Type:
PLC
Operation Mode:
Manual/Semi-automatic/Automatic
Usage:
Pre-Pubber Tire Tread
Electric Parts:
Schneider
Stroke:
400mm
Tension Force:
10.0MN
