Rubber Flat Plate Vulcanizing Press For Vulcanizing Rubber Products

Product Summary
Rubber Flat Plate Vulcanizing Press For Vulcanizing Rubber Products Vulcanizing Press is a widely used term to describe equipment used to heat and vulcanize (or crosslink) rubber, plastic or other polymers. Different types of vulcanizing presses may have different names depending on the specific ...
Basic Properties
Place of Origin: Qingdao
Brand Name: Beishun
Certification: ISO/CE
Model Number: XLB-2000x2000x2
Trading Properties
Minimum Order Quantity: 1set
Price: Negotiable
Payment Terms: T/T,L/C
Supply Ability: 30sets
Product Description

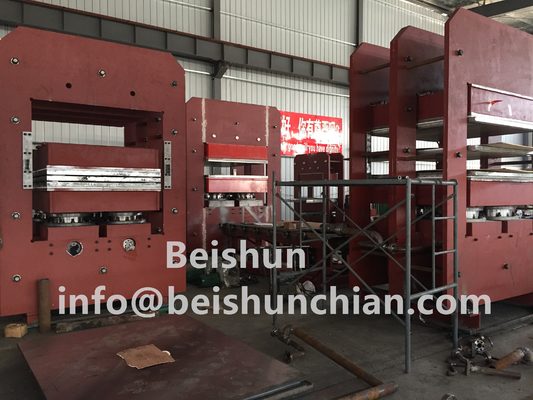

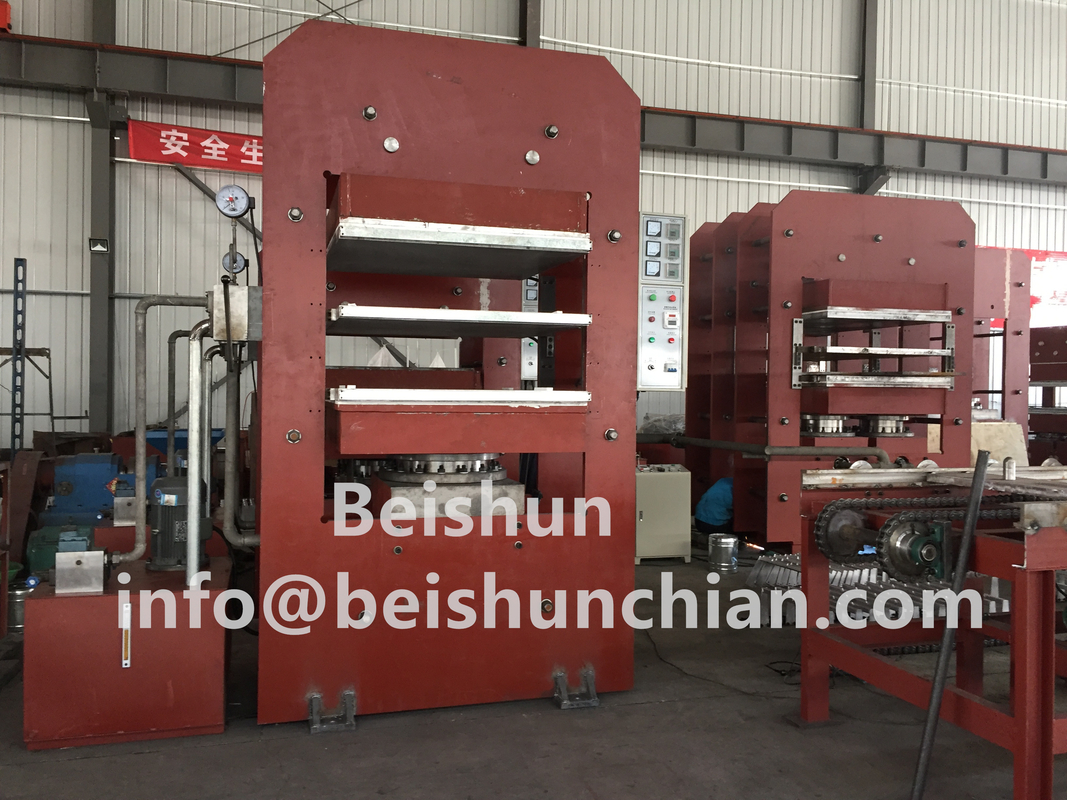

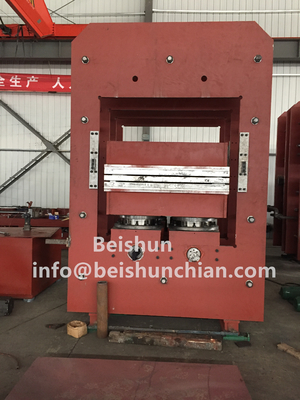

Rubber Flat Plate Vulcanizing Press For Vulcanizing Rubber Products



Vulcanizing Press is a widely used term to describe equipment used to heat and vulcanize (or crosslink) rubber, plastic or other polymers. Different types of vulcanizing presses may have different names depending on the specific application field and the requirements of the vulcanization process. The following are the names of several common vulcanizing presses:

Rubber Vulcanizing Press: Mainly used for the vulcanization of rubber products such as rubber seals, rubber tubes, rubber gaskets, etc.

Conveyor Belt Vulcanizing Press: Specially used for the vulcanization and repair of belts, used to connect and repair the joints of conveyor belts.

Tire Vulcanizing Press: Used in the tire manufacturing industry to vulcanize tire treads and sidewalls to form a strong tire structure.

Rubber Bottle Vulcanizing Press: Used to vulcanize specific rubber products such as rubber bottles, rubber containers or rubber pipes.

Cable Vulcanizing Press: Used in the cable industry to vulcanize cable terminals and connectors to ensure the electrical and mechanical properties of the cable.
Silicone Vulcanizing Press: Specially used for vulcanizing silicone products, such as silicone seals, silicone tubes, etc.
These names are named according to the application area of ​​the vulcanizer and the specific vulcanization process. Different manufacturers and regions may use different names to describe the same type of equipment.

Rubber Flat Plate Vulcanizing Press For Vulcanizing Rubber Products



Machine specification of Rubber Vulcanizing Press Machine



Model



Total Pressure (MN) Daylight (mm) Working Layer No. Piston Stroke (mm) Main Motor Power (KW) Overall Diameter (L x W x H) (mm)
XLB-350×350×2 0.25 125 2 250 2.2 1200×580×1200
XLB-400×400×2 0.50 125 2 250 2.2 1400×500×1400
XLB-600×600×2 1.00 125 2 250 2.2 1880×820×1680
XLB-750×850×4 1.60 125 4 500 3 1730×930×2460
XLB-900×900×2 2.5 200 2 400 4 2345×960×1385
XLB-1200×1200×1 3.15 300 1 300 4 2800×1300×2300
XLB-1300×2000×1 5.60 400 1 400 8 2000×1860×2500
XLB-1500×1500×1 8.00 800 1 800 16.5 2200×2200×4300
XLB-1500×2500×1 15.00 400 1 400 11 3000×2500×3300
XLB-2000×2000×1 20.00 400 1 400 11 3600×3000×3300



Application range: The Vulcanizing Press are widely used to manufacture various rubber products, such as rubber gaskets, seals, rubber tubes, rubber floors, etc. According to different manufacturing needs, flat plate vulcanizers can have different sizes, heating power and control systems.



Safety equipment: The Vulcanizing Press are usually equipped with safety equipment such as safety guards, emergency stop buttons and temperature sensors to ensure the safety of operators and the normal operation of equipment.



It should be noted that the Vulcanizing Press needs to strictly follow the relevant operating procedures and safety guidelines when operating to ensure the safety of operation and the quality of production. In addition, different rubber products may require specific vulcanization process parameters and vulcanization formulas, which operators should adjust and optimize according to specific needs.

Product Details
Highlight:

Rubber Flat Plate Vulcanizing Press

,

Vulcanizing Rubber Products Vulcanizing Press

,

Flat Plate rubber vulcanizing press machine

Condition: New
Type: Vulcanizer,Column,tablet Press,PLC Control,Plate Vulcanizing Press
After-Sales Service Provided: Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Video Technical Support,Overseas Third-party Support Available,Field Installation
Voltage: 380V,Customer Request
Application: Vulcanizing To Be Final Product,conveyor Belt Hot Vulcanizing Joint,Steel Cord And Multi-ply Conveyor Belt Joint,Vulcanizing Rubber Products,Splicing And Repairing Conveyor Belts
Product Name: Rubber Hot Plate Vulcanizing Machine,1400x5700mm Platen Size Rubber Conveyor Belt Vulcanizing Press,Rubber Conveyor Belt Jointing Vulcanizing Press Machine,Rubber Vulcanizing Press
Name: Lab Rubber Heating Plat Vulcanizing Press Machine,Vacuum Rubber Vulcanizer Press Machine,Rubber Compression Molding Machine,Single Vulcanizing Press Machine / PLC Control
Material: Aluminum Alloy
Plunger Diameter: 180-290mm,200 Mm
Vulcanizing Temperature: Adjustable
Heating Way: Steam Or Oil,electrical / Oil System
