X(S)N-110L Energy-Saving Rubber Internal Mixer: Saves Labor, Low Failure Rate, Uninterrupted Operation.

X(S)N-110L Energy-Saving Rubber Internal Mixer: Saves Labor, Low Failure Rate, Uninterrupted Operation.

Brand Name:	Beishun
Model Number:	X(S)N-110×30
MOQ:	1set
Price:	Negotiable
Supply Ability:	10sets/45day

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao

Certification:

ISO9001/CE

Production Products:

Rubber Gasket

Pinching Total Cubage:

250 L

Reducer:

Hard Tooth Gear

Power:

5.5-160 Kw

Material:

High-quality Alloy Steel

Capacity:

50-120 Kg Per Batch

Mixing Capacity:

110

Operatingtemperature:

Up To 250°C

Frequency:

50Hz

Driving Motor Power:

185kW

Machine Type:

Rubber Kneader Machine

Local Service Location:

China

Discharge Method:

Pneumatic/Hydraulic

Process Material:

All Kinds Of Materials

Key Selling Points:

High Productivity

Packaging Details:

wooden box

Highlight:

energy-saving rubber internal mixer

rubber kneader machine with low failure rate

uninterrupted operation rubber kneader machine

Product Description

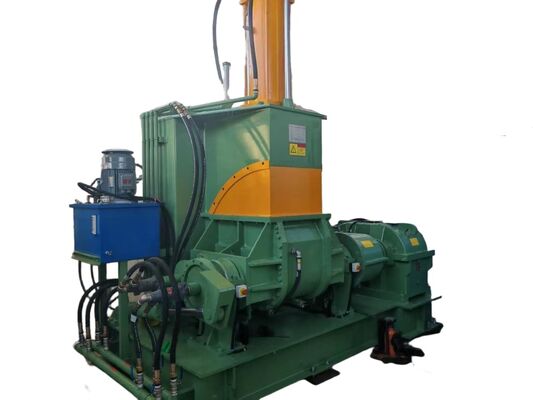

X(S)N-110L Energy-Saving Rubber Internal Mixer

Advanced rubber mixing equipment designed for labor savings, low failure rates, and uninterrupted operation in industrial applications.

Frequently Asked Questions

Model Selection

What standard volume models do you have? How to select proper model?

Standard volumes: 10L, 35L, 55L, 75L, 110L, 150L, 200L. Batch charging weight is 70%-85% of chamber volume.

10L/35L for lab testing & small batches
55L/75L for medium rubber factories
110L-200L for tire, conveyor belt & mass compound production

Drop type vs tilting type mixer?

Drop type: Bottom discharge door, connects with two roll mill for continuous auto line, high output.
Tilting type: Whole chamber tilts to unload, low cost, easy formula switching for small workshops.

Pressurized ram vs non-pressurized mixer?

Pressurized ram: Provides strong compression & shear, excellent carbon black dispersion, shorter mixing cycle.
Non-pressurized: Only for silicone & low-filler light color rubber, lower efficiency.

Rotor & Mixing Process

Types of rotor and application?

Two-wing rotor: General purpose for NR, NBR, EPDM, cost-effective
Four-wing high efficiency rotor: Stronger shear, ideal for high carbon black & reclaimed rubber, 20% higher mixing efficiency
Stainless steel rotor: For silicone & color rubber, no contamination, easy cleaning

Normal mixing temperature range for different rubber?

Rubber Type	Temperature Range
NR/NBR	95-120℃
EPDM	110-135℃
Silicone	80-110℃
Reclaimed rubber	130-150℃

Circulating cooling water controls temperature to avoid scorch.

White speckles & poor filler dispersion?

Insufficient ram pressure, worn rotor with big gap, wrong feeding sequence, short mixing time, blocked cooling water.

Rubber scorch during mixing?

Lower cooling water temperature, reduce batch weight, shorten high-temperature mixing time, slow rotor speed, clean blocked cooling circuit.

Hydraulic & Pneumatic Failure

Ram lifts slowly & low pressure?

Low or dirty hydraulic oil, worn oil pump, faulty relief valve, leaking cylinder oil seal, insufficient air pressure for pneumatic model.

Discharge door can't seal tightly & leak compound?

Worn wear plate on door, insufficient lock cylinder pressure, rubber residue stuck on discharge opening, offset limit switch.

Heavy vibration & abnormal noise?

Damaged bearing, unbalanced rotor clearance, loose anchor bolt, broken reducer gear, sudden heavy load from rubber block.

Automatic Control

Functions of PLC automatic mixer?

Stores dozens of mixing recipes, automatically controls feeding, ram pressure, rotor speed, temperature & mixing time. Real-time data curve recording for quality traceability.

Can match full automatic mixing line?

Yes, matches auto weighing system, carbon black conveying, batch feeder, two roll mill, cooling line & rubber cutter for full auto compounding line.

Maintenance & Wearing Parts

Wearing parts & replacement cycle?

Rotor wear tiles, discharge door seal plate, ram oil seals, hydraulic seals, bearings, sealing rings.

Replace every 6-12 months under 24h continuous operation
12-18 months for intermittent production

Daily maintenance checklist?

Clean carbon & rubber residue inside mixing chamber, check cooling water leakage, lubricate bearings & reducer, monitor hydraulic oil level, clean dust removal device.

Gearbox oil change cycle?

Every 6 months for continuous production; 12 months for intermittent use, filter tank impurities while changing oil.

Customization & After-sales

Customized options available?

Stainless steel anti-corrosion mixer, explosion-proof motor, enhanced cooling system, high-pressure ram, closed auto powder conveying, lab small internal mixer.

Warranty & delivery time?

1-year whole machine warranty (excluding wear parts: wear tiles, oil seals).

Standard models: 3-10 days delivery
Large customized production line: 20-40 days

On-site installation, commissioning & operator training available.
