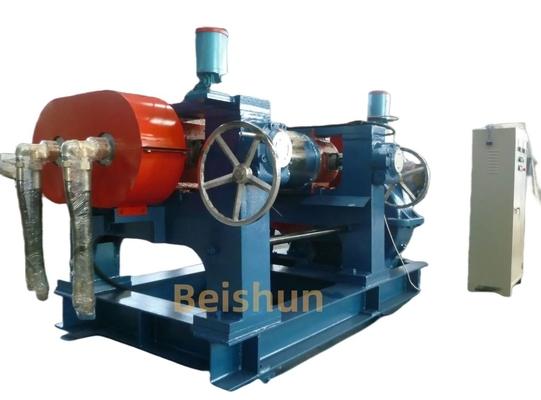

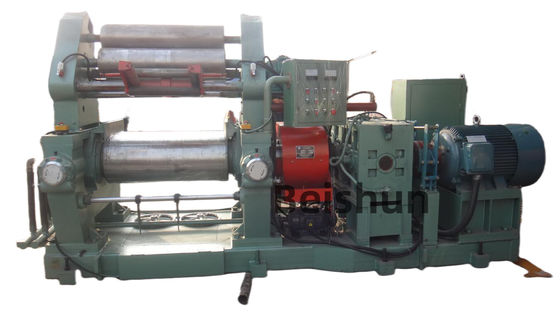

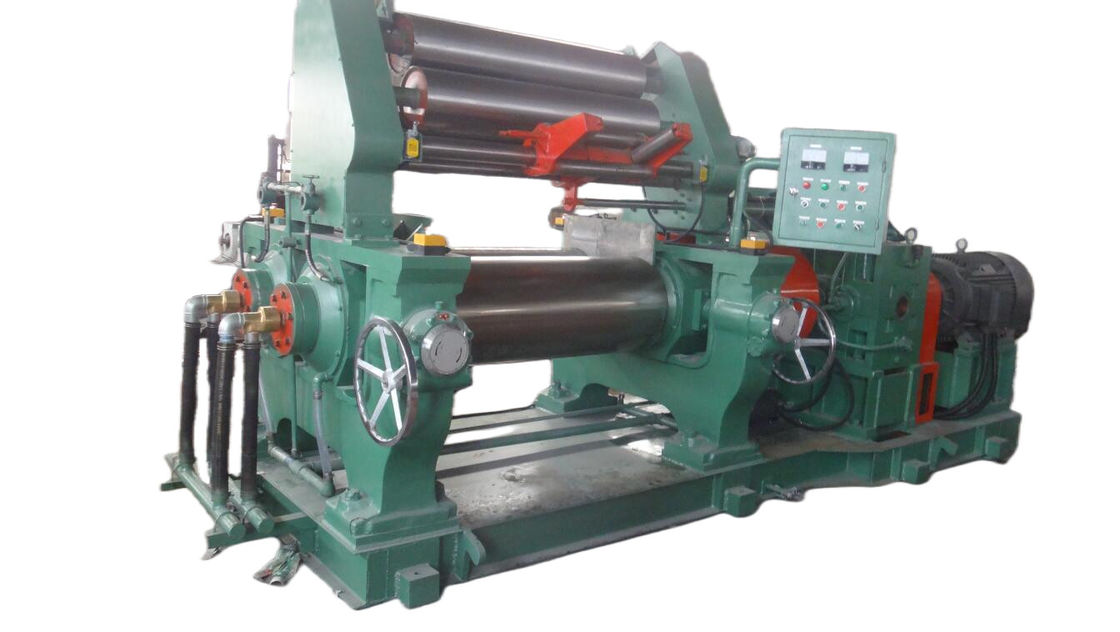

PLC Control System 16 Inch Rubber Mixing Mill For Compound Rubber Mixing Line

1. General Description
   • A 16 - inch rubber mixing line mixing mill is a significant piece of equipment in the rubber - processing industry. The "16 - inch" refers to the diameter of the rollers, which is a key factor in determining the capacity and the scale of the mixing process. It is an integral part of a rubber mixing line, which usually includes other components such as feeders, conveyors, and control systems to ensure a continuous and efficient mixing operation.
2. Roller System
   • Roller Material and Construction
     • The rollers are typically made of high - quality materials such as alloy steel or chilled cast iron. These materials provide the necessary hardness and wear - resistance to withstand the continuous pressure and friction during the mixing of rubber. The construction of the rollers is designed to ensure a precise cylindrical shape, which is crucial for maintaining a consistent gap between the rollers and for even distribution of the shearing force during the mixing process.
   • Roller Surface and Finish
     • The surface of the rollers is carefully machined to a smooth finish. A smooth surface is essential for preventing the rubber from sticking to the rollers and for ensuring that the rubber is evenly mixed. Any irregularities on the roller surface could lead to uneven mixing or damage to the rubber. The smoothness also helps in reducing the energy consumption during the mixing process as it minimizes the frictional resistance between the rubber and the rollers.
   • Roller Gap Adjustment
     • The distance between the two rollers can be adjusted. This adjustment is a critical feature as it allows the operator to control the thickness of the rubber sheet being produced and to adapt to different mixing requirements. For example, a narrower gap can be used for final mixing stages to achieve a more compact and homogeneous rubber compound, while a wider gap may be suitable for initial mixing or for handling larger batches of rubber.
3. Mixing Mechanism
   • Shearing and Kneading Action
     • As the two rollers rotate in opposite directions at different speeds, the rubber placed between them is subjected to a powerful shearing force. The differential speed of the rollers, for example, with one roller rotating slightly faster than the other, causes the rubber to be drawn through the nip (the gap between the rollers) and stretched. This shearing action breaks the polymer chains of the rubber and helps to disperse additives such as fillers (e.g., carbon black), vulcanizing agents, and antioxidants evenly throughout the rubber matrix. At the same time, the kneading effect is achieved as the rubber is continuously folded and turned over as it passes through the rollers. This repeated kneading process further enhances the mixing of different components and ensures a homogeneous blend.
   • Temperature Management
     • During the mixing process, heat is generated due to the friction between the rubber and the rollers and the internal friction of the rubber itself. The temperature of the rubber can significantly affect the mixing quality. Some 16 - inch mixing mills are equipped with temperature - control systems. These systems can either cool or heat the rollers to maintain the rubber at an optimal temperature. For example, in the case of heat - sensitive rubber compounds, maintaining a lower temperature during mixing can prevent premature cross - linking or degradation of the rubber.
4. Drive System
   • Motor and Power Transmission
     • The mixing mill is usually powered by an electric motor. The motor provides the necessary torque to drive the rollers at the required speeds. The power transmission system, which may include gears, belts, or couplings, is designed to ensure a smooth and efficient transfer of power from the motor to the rollers. The speed of the motor and the transmission ratio are carefully selected to achieve the desired rotational speeds of the rollers, which can vary depending on the type of rubber and the mixing requirements.
   • Speed Control
     • The drive system often includes a speed - control mechanism. This allows the operator to adjust the speed of the rollers according to the specific needs of the mixing process. For example, a slower speed may be used for initial mixing to ensure a gentle breakdown of the rubber and proper dispersion of additives, while a faster speed can be applied for final mixing to achieve a more refined and homogeneous blend.
5. Applications
   • Tire Manufacturing
     • In the tire industry, the 16 - inch mixing mill is used to prepare the rubber compounds for various parts of the tire, such as the tread, sidewalls, and inner liners. The precise mixing of different rubber types (natural and synthetic) and additives is essential to achieve the desired performance characteristics of the tire, including traction, durability, and resistance to wear and tear.
   • Industrial Rubber Goods Production
     • It is also widely used in the production of other industrial rubber products like conveyor belts, hoses, and seals. For conveyor belts, the mixing mill ensures that the rubber compound has the appropriate strength and flexibility to handle heavy loads and continuous operation. In the case of seals, the uniform mixing of rubber and additives helps to achieve a tight and long - lasting seal.

Technical parameter:
