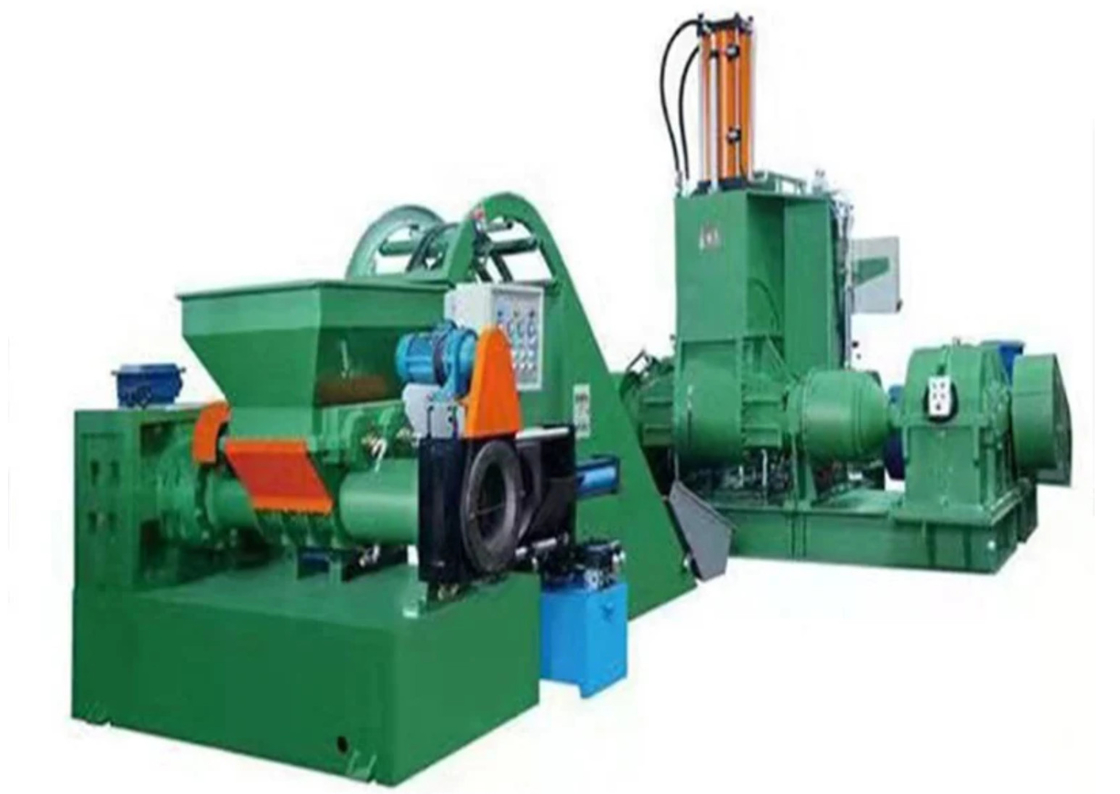

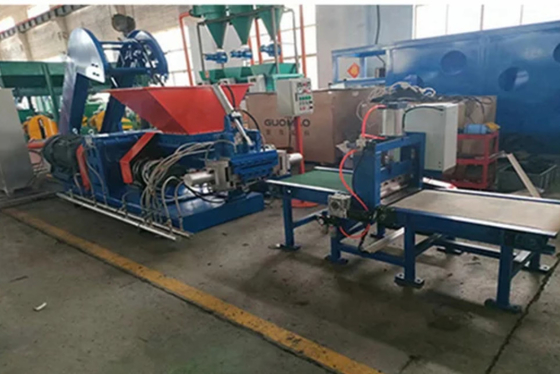

Twin Screw Rubber Extruder / EPDM Foam Board Production Line

Twin-Screw Rubber Extruder / EPDM Foam Board Production Line

An EPDM (Ethylene Propylene Diene Monomer) foam board production line is a specialized manufacturing system designed to produce foam boards from EPDM rubber. EPDM foam boards are widely used in various industries due to their excellent properties, such as thermal insulation, soundproofing, water resistance, and durability. Below is an overview of the key components and processes involved in an EPDM foam board production line:

Key Components of an EPDM Foam Board Production Line

1. Raw Material Preparation System:

   • EPDM rubber granules or pellets are mixed with foaming agents, cross-linking agents, stabilizers, and other additives.

   • A mixer or blender ensures uniform distribution of materials.

2. Extrusion or Calendering System:

   • The mixed material is fed into an extruder or calendering machine to form a continuous sheet.

   • The extruder heats and compresses the material, allowing it to flow and take the desired shape.

3. Foaming Oven:

   • The extruded sheet passes through a foaming oven, where it is heated to activate the foaming agents.

   • This process creates a closed-cell foam structure, giving the material its lightweight and insulating properties.

4. Vulcanization/Curing System:

   • The foam sheet undergoes vulcanization (curing) to cross-link the polymer chains, enhancing strength and durability.

   • This is typically done in a heated chamber or continuous vulcanization line.

5. Cooling System:

   • After vulcanization, the foam board is cooled to stabilize its structure and dimensions.

   • Cooling can be achieved using air or water cooling systems.

6. Cutting and Trimming:

   • The continuous foam board is cut into specific lengths and widths using precision cutting machines.

   • Trimming ensures smooth edges and consistent dimensions.

7. Surface Treatment (Optional):

   • Depending on the application, the foam board may undergo surface treatments such as laminating, coating, or embossing.

8. Quality Control and Inspection:

   • Automated or manual inspection ensures the foam boards meet quality standards for thickness, density, and surface finish.

9. Packaging and Stacking:

   • The finished foam boards are packaged and stacked for storage or shipment.

Key Features of EPDM Foam Boards

• Thermal Insulation: Low thermal conductivity makes it ideal for HVAC and construction applications.

• Soundproofing: Excellent acoustic properties for noise reduction.

• Water Resistance: Closed-cell structure prevents water absorption.

• Flexibility and Durability: Resistant to UV, ozone, and weathering.

• Fire Resistance: Can be formulated to meet fire safety standards.

Applications of EPDM Foam Boards

• Construction: Insulation for roofs, walls, and floors.

• Automotive: Sealing, gaskets, and vibration damping.

• HVAC: Duct insulation and sealing.

• Marine: Waterproofing and insulation for boats.

• Industrial: Gaskets, seals, and vibration control.

Advantages of EPDM Foam Board Production Line

• High production efficiency with continuous processing.

• Customizable foam density, thickness, and properties.

• Environmentally friendly, as EPDM is recyclable and durable.

• Suitable for large-scale industrial production.

If you are planning to set up an EPDM foam board production line, it is essential to work with experienced machinery suppliers and ensure proper process optimization for your specific product requirements. Let me know if you need further details!
