Semi-automatic Electric Heating Hydraulic Four-layer Motorcycle Tyre Curing Press with 380V/50Hz Power and 220V/380V/Customized Voltage
Product Summary
Semi-automatic Electric Heating Hydraulic Four-layer Motorcycle Tyre Curing Press Machine This specialized equipment is designed for manufacturing and retreading motorcycle tires. The machine transforms soft, uncured rubber "green tires" into durable finished products through precise heat and ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
8"-18"
Trading Properties
Minimum Order Quantity:
6sets
Price:
Negotiable
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
80sets
Product Description

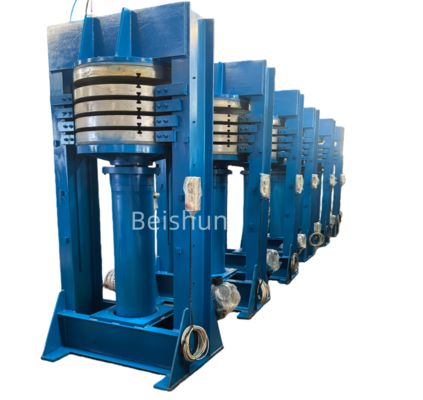

Semi-automatic Electric Heating Hydraulic Four-layer Motorcycle Tyre Curing Press Machine
This specialized equipment is designed for manufacturing and retreading motorcycle tires. The machine transforms soft, uncured rubber "green tires" into durable finished products through precise heat and pressure application in a mold - a process known as vulcanization.
Key Features Explained
- Motorcycle Tyre Curing Press: Specifically designed for motorcycle tire sizes (8"-18"), using vulcanization to cross-link rubber polymers for durability.
- Four-Layer Design: Four independent curing stations vertically stacked for space efficiency, allowing simultaneous processing of multiple tires.
- Hydraulic System: Provides high, controllable clamping force to seal molds and maintain internal pressure during curing.
- Electric Heating: Embedded heating elements offer precise temperature control (150-180°C) without steam boiler requirements.
- Semi-Automatic Operation: Combines manual loading/unloading with automated curing cycles for efficiency and consistency.
Technical Specifications
| Curing Tire Size | 8"-18" |
|---|---|
| Green Tire Max Height | 155-300 |
| Mould Max Diameter | Φ 750 |
| Power | 15-18KW |
| Max Distance Between Hou Plate | 690 |
| Bladder Pressure (kgf/cm²) | 18-20 |
Workflow Process
- Preparation: Clean mold and prepare green tire
- Loading: Place tire in bottom mold half
- Cycle Start: Initiate automated curing process
- Curing: Hydraulic pressure, electric heating, and bladder inflation
- Cycle End: Pressure release and mold opening
- Unloading: Remove finished tire and trim excess
Product Advantages
- High productivity with four-layer simultaneous processing
- Space-efficient vertical design
- Consistent quality through precise temperature and pressure control
- Operator-friendly semi-automatic operation
- Cost-effective balance of automation and manual operation
Product Details
Highlight:
Electric Heating Motorcycle Tyre Curing Press
,Hydraulic Tire Vulcanizing Press
,Four-layer Motorcycle Tire Vulcanizing Machine
Power:
380V/50Hz
Frequency:
50Hz/60Hz
Material:
Steel
Heating Type:
Electric Or Steam
Hs Code:
84778000
Piston Qty:
1
Voltage:
220V/380V/Customized
Pressure Range:
0-200 MPa
Effective Thickness:
1-4mm
Heating Way:
Electric Or Steam
Type:
Fully Automatic
Production Capacity:
100-120pcs/h
Splicing Width:
Max 160mm
Warrenty:
1.5 Year
Capacity:
100-120 Tires Per Hour
