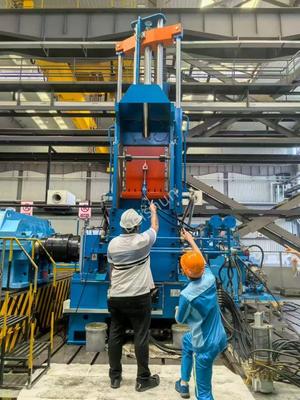

80 liters Banbury Mixer with 110KW Motor and 40rpm Mixing Speed for Efficient Rubber Processing
In a traditional mixing line, a single batch of compound is dropped from the mixer onto a downstream unit (like a mill). The system then waits for the next batch.
A two-layer drop-feed system is a high-efficiency, continuous-flow design where two complete mixing cycles are staged so that one batch is ready to be dropped just as the previous one is finishing its downstream processing.
Think of it like a relay race with two runners:
- Runner 1 (Batch A) is running the track (being mixed in the internal mixer).
- Runner 2 (Batch B) is on deck, warmed up and ready to go (waiting in the drop chute).
- As soon as Runner 1 finishes and hands off the baton (is dropped onto the mill), Runner 2 immediately starts their run (is loaded into the mixer).
Here is the typical arrangement of a two-layer drop-feed line:
- Weighing and Feeding System (Upstream):
- Carbon Silo/Big Bag Station: Stores bulk carbon black.
- Oil and Chemical Tanks: Store plasticizers, process oils, etc.
- Automatic Weighing Hoppers: Precisely weigh rubber polymers (natural & synthetic), carbon black, oils, and chemicals according to the recipe.
- Main Feed Conveyor (or Hopper): Transports the pre-weighed raw materials to the mixer.
- The Internal Mixer (The Heart of the Line):
- This is where the Banbury mixer comes in. A Banbury is the most famous and common brand name for a tangential rotor internal mixer.
- Function: It masticates the rubber and incorporates all the fillers (carbon black), oils, and chemicals under high pressure, temperature, and shear force to create a homogeneous compound.
- Key Parts:
- Mixing Chamber: Where the materials are loaded.
- Two Rotors: Intermeshing or tangential (Banbury type) that generate the shear.
- Ram: A hydraulic piston that descends into the chamber, applying pressure to the batch for better incorporation and heat transfer.
- Drop Door: The bottom-hinged door that opens to discharge the mixed batch.
- The Two-Layer Drop-Feed Mechanism (Critical Component):
- This is a specialized drop chute located directly beneath the mixer's drop door.
- It has a split gate or a diverting mechanism inside.
- Layer 1 (Bottom): Holds a fully mixed batch (Batch A) that is waiting to be discharged onto the mill.
- Layer 2 (Top): The next batch of raw, un-mixed materials (Batch B) is pre-placed here, waiting for the mixer to be empty.
- The Sequence:
- The mixed Batch A is in the bottom of the chute.
- The ram lifts, and the drop door opens.
- Batch A is released onto the mill.
- The drop door closes, and the split gate in the chute shifts.
- The pre-weighed Batch B (the raw materials in the top layer) immediately slides down into the now-empty mixer.
- The ram lowers, and the next mixing cycle begins immediately.
- Downstream Equipment (After the Drop):
- Drop Mill (Open Two-Roll Mill): Receives the hot batch from the mixer. Its primary jobs are to cool the batch, provide additional homogenization, and sheet it out into a continuous strip.
- Batch-Off Unit: A series of cooling drums that cool the rubber sheet with water spray or immersion.
- Slitter and Cutter: Cuts the cooled sheet into strips or piles it into a container (batching).
- Palletizer/Weighing System: Prepares the finished compound for the next manufacturing step (e.g., extrusion, calendering, molding).
Here is the synchronized timing that makes the two-layer system so efficient:
| Time | Internal Mixer Action | Two-Layer Drop Chute Action | Downstream Mill Action |
|---|---|---|---|
| T=0 sec | Mixing Batch A | Empty | Idle |
| T=90 sec | Batch A mixing complete | Pre-load Raw Batch B into top layer | Idle |
| T=100 sec | Ram lifts, door opens | Drop Mixed Batch A (bottom) onto mill | Starts receiving Batch A |
| T=105 sec | Door closes | Load Raw Batch B (top) into mixer | Processing Batch A |
| T=110 sec | Starts mixing Batch B | Empty (waiting for next pre-load) | Still processing Batch A |
| T=200 sec | Batch B mixing complete | Pre-load Raw Batch C into top layer | Finishing Batch A |
- Massive Increase in Productivity: Eliminates the idle time of the internal mixer waiting for the downstream mill to be ready and for the next batch of raw materials to be loaded. This can increase output by 30-50%.
- Improved Consistency: The precise, automated loading of raw materials and the consistent cycle time lead to more uniform batch-to-batch quality.
- Reduced Labor: The process is highly automated, requiring minimal manual intervention.
- Better Energy Efficiency: The mixer, a major energy consumer, is utilized more effectively.
| Model | LH-100Y | LH-145Y | LH-200Y | LH-250Y | LH-330Y |
|---|---|---|---|---|---|
| Chamber Volume (L) | 100 | 145 | 200 | 250 | 330 |
| Filling Coefficient | 0.65 | ||||
| Rotor Type | Intermesh | ||||
| Rotor Speed (r/min) | 10-60 | ||||
| Rotor Speed Ratio | 1:1.17 | ||||
| Max. Capacity (T/H) | 1.36 | 2.2 | 3.05 | 4.2 | 5.0 |
| Power Supply | AC 380V 50HZ 3P (customized available) | ||||
| Motor Power (Kw) | 520 | 720 | 1100 | 1320 | 1700 |
| Weight (T) | 19 | 29 | 48 | 65 | 80 |
The Banbury mixer is ideal for this system because it is a high-intensity, short-cycle-time mixer. Its fast mixing action (typically 2-5 minutes per batch) creates the need for the equally fast material handling that the two-layer drop-feed system provides. The efficiency of one depends on the other in a modern, high-volume production line.
In essence, a two-layer drop-feed rubber mixing line is a sophisticated production system designed to maximize the output of a high-speed internal mixer (like a Banbury). By using a specialized double-stacking chute, it pipelines the mixing and downstream processes, ensuring the mixer--the most expensive and critical asset--is almost never idle. This setup is the industry standard for high-volume tire and rubber goods manufacturing.


80 liters Banbury Mixer
,110KW Banbury Mixer
,40rpm Banbury Mixer
-
