EPDM Sealing Gasket Production Line / Capacity Of 180-250 Kg Per Hour / Stable And Efficient
Product Summary
EPDM Sealing Gasket Production Line Automated manufacturing system with capacity of 180-250 kg per hour, designed for stable and efficient production of EPDM sealing strips. Production Line Overview This automated EPDM sealing strip production line is specifically engineered for manufacturing ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XJW-90
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
L/C,T/T
Supply Ability:
30sets/60day
Product Description
EPDM Sealing Gasket Production Line
Automated manufacturing system with capacity of 180-250 kg per hour, designed for stable and efficient production of EPDM sealing strips.
Production Line Overview
This automated EPDM sealing strip production line is specifically engineered for manufacturing sealing strips using EPDM (ethylene propylene diene monomer) rubber. The system delivers high efficiency, continuous operation, and precise control for applications in automotive, construction, and household appliance industries.
Production Process
Raw Material Preparation and Mixing
EPDM rubber serves as the primary material, combined with vulcanizing agents, reinforcing agents, and foaming agents. The mixture is evenly blended using a twin-screw extruder or open mill to create stable rubber compound. After mixing, the material undergoes aging and maturation to ensure uniformity.

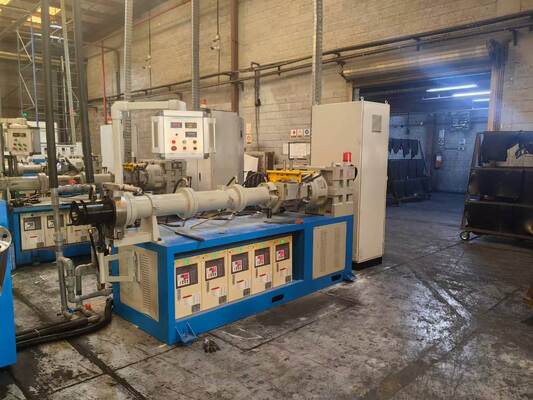

Extrusion Molding
A single-screw or co-extrusion machine heats and melts the rubber compound, then extrudes it through specialized dies to form the desired cross-sectional shapes. Complex products utilize multi-layer co-extrusion for soft-hard composites or colored stripes.
Cooling and Stabilization
Hot extruded profiles are cooled in water tanks or spray systems using circulating water. Precise control of cooling speed and temperature prevents deformation and internal stress generation.

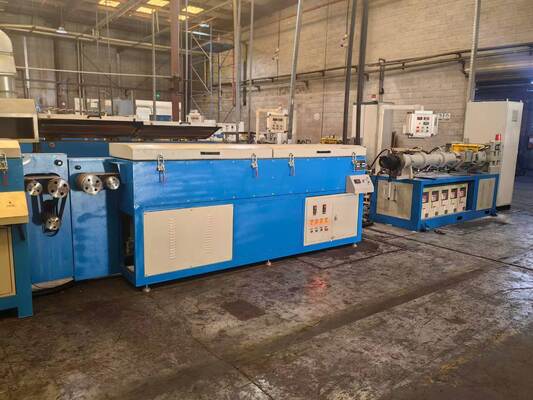

Sulfurization Curing
EPDM rubber requires post-sulfurization treatment to achieve optimal elasticity and durability. Standard methods include hot air sulfurization ovens (180–220°C), with advanced lines employing salt bath or microwave preheating combined with hot air processes for enhanced efficiency and uniformity.
Post-processing and Inspection
Optional processes include electrostatic flocking (door seal lips), surface spraying, drilling, and cutting. Modern production lines integrate laser diameter measurement instruments and machine vision systems for real-time dimensional and appearance defect inspection.
Traction and Cutting
Traction machines maintain constant speed for consistent sizing, while fixed-length shearing or hydraulic cutting machines perform automated length cutting. Dust collection devices remove debris during processing.
Finished Product Collection and Packaging
Completed products are stacked, rolled, or bundled for packaging, with support for automated palletizing and logistics integration.
Technical Specifications
| Extruder Size | Screw Diameter (mm) | Screw L/D Ratio | Screw Speed (r/min) | Motor Power (KW) | Max Output (KG/h) | Weight (kg) |
|---|---|---|---|---|---|---|
| 150mm 20D (vacuum) | 150 | 20:1 | 4-40 | 160 | 1000 | 6500 |
| 150mm 16D | 150 | 16:1 | 4-40 | 132 | 800 | 6500 |
| 120mm 20D (vacuum) | 120 | 20:1 | 5-50 | 110 | 700 | 5200 |
| 120mm 16D | 120 | 16:1 | 5-50 | 110 | 600 | 5200 |
| 90mm 20D (vacuum) | 90 | 20:1 | 5-50 | 55 | 320 | 3200 |
| 90mm 16D | 90 | 16:1 | 5-50 | 55 | 280 | 3200 |
| 75mm 20D (vacuum) | 75 | 20:1 | 5-50 | 37 | 160 | 1200 |
| 75mm 16D | 75 | 16:1 | 5-50 | 37 | 140 | 1200 |
| 50mm 12D (vacuum) | 50 | 12:1 | 5-50 | 7.5 | 50 | 600 |
Frequently Asked Questions
What is the guarantee time? If machines are broken or lost during sea freight, who takes responsibility?
The guarantee period is one year from when the machine arrives at the customer's seaport. For every export machine, we purchase insurance. If the machine is lost or damaged during sea freight, we assume full responsibility.
During the guarantee period, if the machine breaks due to design issues, what should we do?
During the guarantee period, if the machine fails due to design faults, we take full responsibility and will send replacement parts free of charge.
What documents does your company provide?
After shipment departs from the Chinese port, we provide shipping company documents including: bill of lading, insurance documents, packing list, and commercial invoice. We can also apply for CO, FORM F, FORM E certificates upon request.
After the guarantee period, can you provide spare parts if needed?
Yes, we provide spare parts for the machine even after the guarantee period has ended.
Product Details
Highlight:
EPDM rubber extruder machine
,high-capacity sealing gasket production line
,stable EPDM gasket manufacturing equipment
Voltage:
220V/380V/400V/440/
Marketing Type:
Window Sealing Strips
Barrel Material:
Nitrided Steel
Warranty:
12 Months
Port:
Qingdao
Condition:
New
Cooling System:
Mold Temperature Controller
Operation Mode:
Manual/Semi-automatic/Automatic
Heating Method:
Electric
Screw Diamete:
90mm
Heating Zones:
5
Machine Weight:
3500kg
Screw Rotational Speed:
0-60r/min
Screw Hardness:
900-950HV
Model:
RE-100
Energy Type:
Electricity
