| Brand Name: | BeiShun |
| Model Number: | XLB-D1500 |
| MOQ: | 1 set |
| Price: | 150000-200000usd |
| Packaging Details: | Wooden /Container |
| Payment Terms: | T/T, L/C |

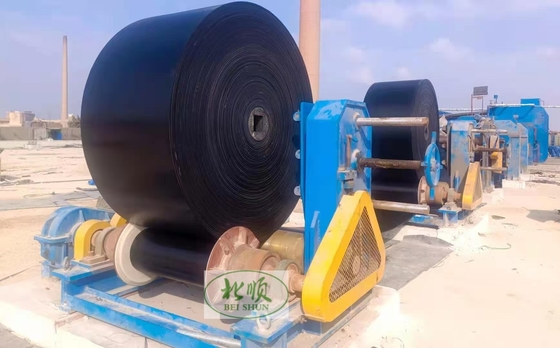

Rubber conveyor belt manufacturing machinery and rubber conveyor belt production line

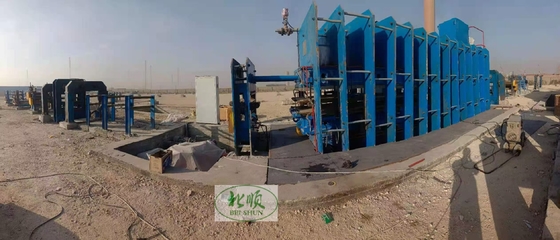

The vulcanizer for conveyor belt manufacturing is a key equipment in the production process of conveyor belts.
1. Working principle
Vulcanization process
The vulcanizer applies high temperature and high pressure to the rubber layer of the conveyor belt and maintains it for a certain period of time to make the rubber undergo vulcanization reaction. Generally, the vulcanization temperature can be around 140-160℃, and the pressure varies from 1 to 3MPa depending on the specifications of the conveyor belt. During the vulcanization process, the molecular chains of the rubber are cross-linked, thereby improving the physical properties of the rubber, such as strength, wear resistance, and aging resistance.
Heating method
Common methods include steam heating and electric heating. Steam-heated vulcanizers need to be equipped with equipment such as steam boilers to provide a stable steam source, with relatively low cost, but limited thermal efficiency. Electric heating vulcanizers use electric heating elements for heating, with faster heating speed and more precise temperature control, but the operating cost may be higher.
2. Structural composition
Frame
Provides a stable support structure for the entire vulcanizer, generally welded with high-strength steel to ensure that it can withstand high pressure without deformation during the vulcanization process.
Hot plate
It is a component that directly contacts the conveyor belt and transfers heat. The surface flatness of the hot plate is very high, and the flatness error is usually within ±0.1mm to ensure the uniformity of the thickness of the conveyor belt after vulcanization.
Hydraulic system (if it is a hydraulic vulcanizer)
Responsible for providing the pressure required during the vulcanization process. It consists of an oil pump, an oil cylinder, a hydraulic valve, etc. Through the hydraulic system, the pressure and the holding time can be accurately controlled.
3. Importance in conveyor belt manufacturing
Quality assurance
The quality of vulcanization directly determines the performance of the conveyor belt. If the vulcanization is incomplete, the conveyor belt may have problems such as insufficient strength and degumming, which will affect its service life and safety.
Production efficiency improvement
Advanced vulcanizers can shorten the vulcanization time, improve the production efficiency of the conveyor belt, and reduce production costs.
Parameter:
| Type | XLB-Q 1200x2700x1 | XLB-Q 1300x4000x1 | XLB-Q 1400x8000x1 | XLB-Q 1600x8000x1 | XLB-Q 1400x10000x1 |
| Nominal Moulding Power (MN) | 10.00 MN | 16.00 MN | 34.00 MN | 45.00 MN | 52.00 MN |
| Working Layer Number | 1 | 1 | 1 | 1 | 1 |
| Piston Stroke (mm) | 300 mm | 300 mm | 400 mm | 500 mm | 300 mm |
| Plate Pressure (MPa) | 3.0 MPa | 3.08 MPa | 3.10 MPa | 3.40 MPa | 3.7 MPa |
| Main Motor Power (kW) | 5.5+5.5+7.5 kW | 5.5+5.5+7.5 kW | 37.5 kW | 49 kW | 52.5 kW |
| Plate Clearance (mm) | 250 mm | 300 mm | 200 mm | 250 mm | 250 mm |
| Overall Size (mm) | 2700x1860x2600 mm | 3000x2100x3360 mm | 8000x2400x3800 mm | 2500x3100x8000 mm | 3520x2900x3550 mm |
| Weight (kg) | 26000 kg | 48000 kg | 121000 kg | 131000 kg | 150000 kg |
2.100% real manufacture meet all your requests;
3.CE,ISO Certification;
4.provide one year quality guarantee and long-term technical support;
5.provide all kinds of rubber machine:
Vulcanizing machine,Rubber mixing mill,Rubber crushing mill,Rubber refining mill,Rubber plastices kneading machine,Rubber injection&pressure molding machine,Vaccuum heat presses to model the machine, Hydraulic press, Rubber sheeting mill,Jaw type falt vulcanizer,Prevulcanization equipment,Hydraulic tyre vulcanizer,Automatism inner tube press vulcanizer, Foaming press; Conveyor belt production line, Sidewall belt production line, Conveyor belt forming line; Batch-off cooler (cooling line); Rubber cutter etc;
6.our machine are welcome by the world,popular in lots of markets
Notice:
we can accept FOB,CIF,CFR,EXW,etc.
Payment Item:30%TT in advance,70% balance before shipment.
Delivery Time:usually 40-50days after recieving the deposit,customize model depends on detailed parameter
Packing:bare packing, some parts are packed in wooden case.
|
|
